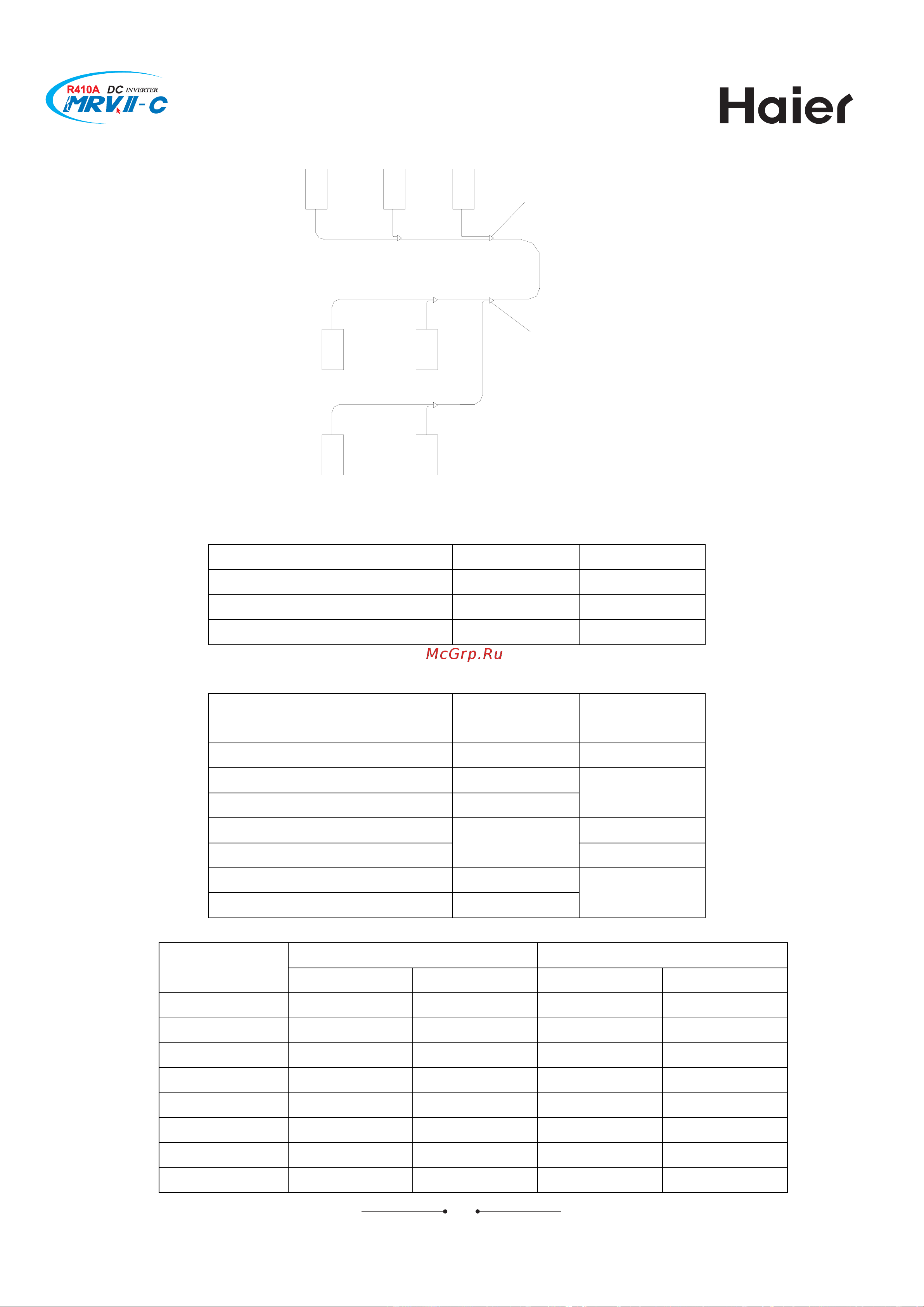

2.3 Pipes specifications
aa
d
e
ee
c
b
aa
b
outdoor gather pipe
the first branch
a. Pipe “a” diameter (between indoor and branch pipe) (depends on indoor pipe)
Indoor(×100W) Gas pipe Liquid pipe
22~28 φ9.52 φ6.35
36~56 φ12.7 φ6.35
71~140 φ15.88 φ9.52
b. Pipe “b” diameter (between branch pipes)
Total indoor capacity after the
branch pipe
Gas pipe Liquid pipe
<16.8KW Φ15.88 Φ9.52
16.8KW《X<22.4KW
Φ19.05
22.4KW《X<33.0KW
Φ22.22
Φ9.52
Φ9.52
33.0KW《X<47.0KW
Φ12.7
47.0KW《X<71.0KW
Φ28.58
Φ15.88
71.0KW《X<101.0KW
Φ31.88
》101.0KW
Φ38.1
Φ19.05
c. Pipe “c” diameter (main pipe, between outdoor gather pipe and the first branch pipe)
Main pipe Enlarged main pipe Outdoor
capacity
Gas pipe Liquid pipe Gas pipe Liquid pipe
22.6KW φ19.05 φ9.52 φ22.2 φ12.7
28.0KW φ22.2 φ9.52 φ25.4 φ12.7
33.5KW φ25.4 φ12.7 φ28.58 φ12.7
40.0KW φ25.4 φ12.7 φ28.58 φ12.7
45.0KW φ28.58 φ12.7 φ31.8 φ12.7
50.6KW φ28.58 φ15.88 φ31.8 φ15.88
56.0KW φ28.58 φ15.88 φ31.8 φ15.88
61.5KW φ28.58 φ15.88 φ31.8 φ15.88
401
