26

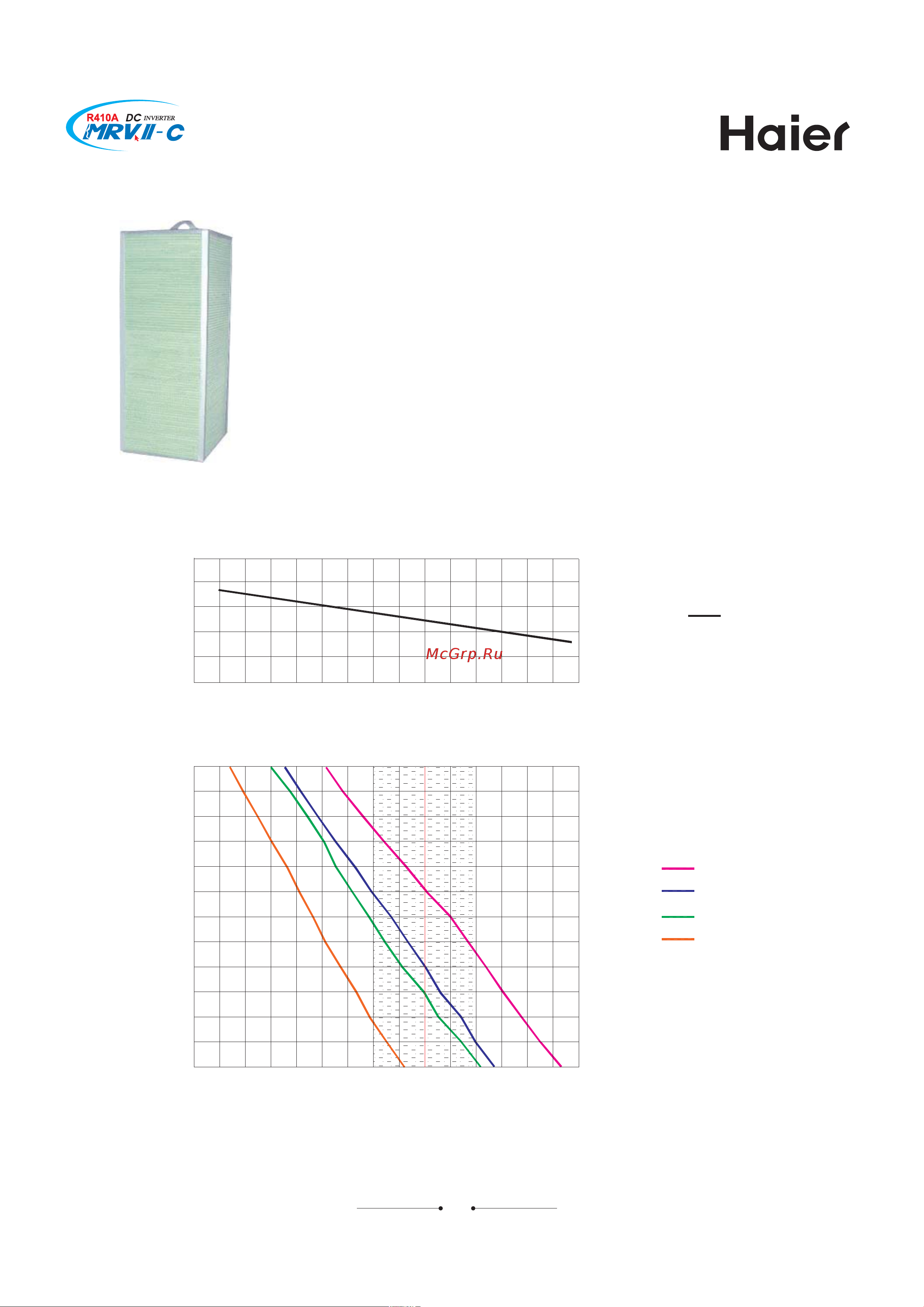

Heat recovery element
The heat recovery element is composed of flat paper and ripple
paper. The thickness of flat paper is 50um. It is non-hole, water
permeability but not gas permeability, which will ensure the humidity
exchange and prevent the air mixture from indoor and outdoor.
Meanwhile the angle between the air discharging passage and the
indoor air return passage is 90degree, which can prevent air mixture
further.
The ripple paper is with plastic character, and it will not distort even
under the great humidity. Therefore it can support the structure firmly.
Heat exchange ratio, static pressure and air flow:
100
1000
condition
0
600 700 800 900
60
80
20
40
air
flow(m3/h)
12001100 1300
high vent.
high speed
low vent.
70
external
pressure Pa
120
30
50
heat exchnage ratio(%)
heat exchnage
ratio
low speed
