98
10. Installation

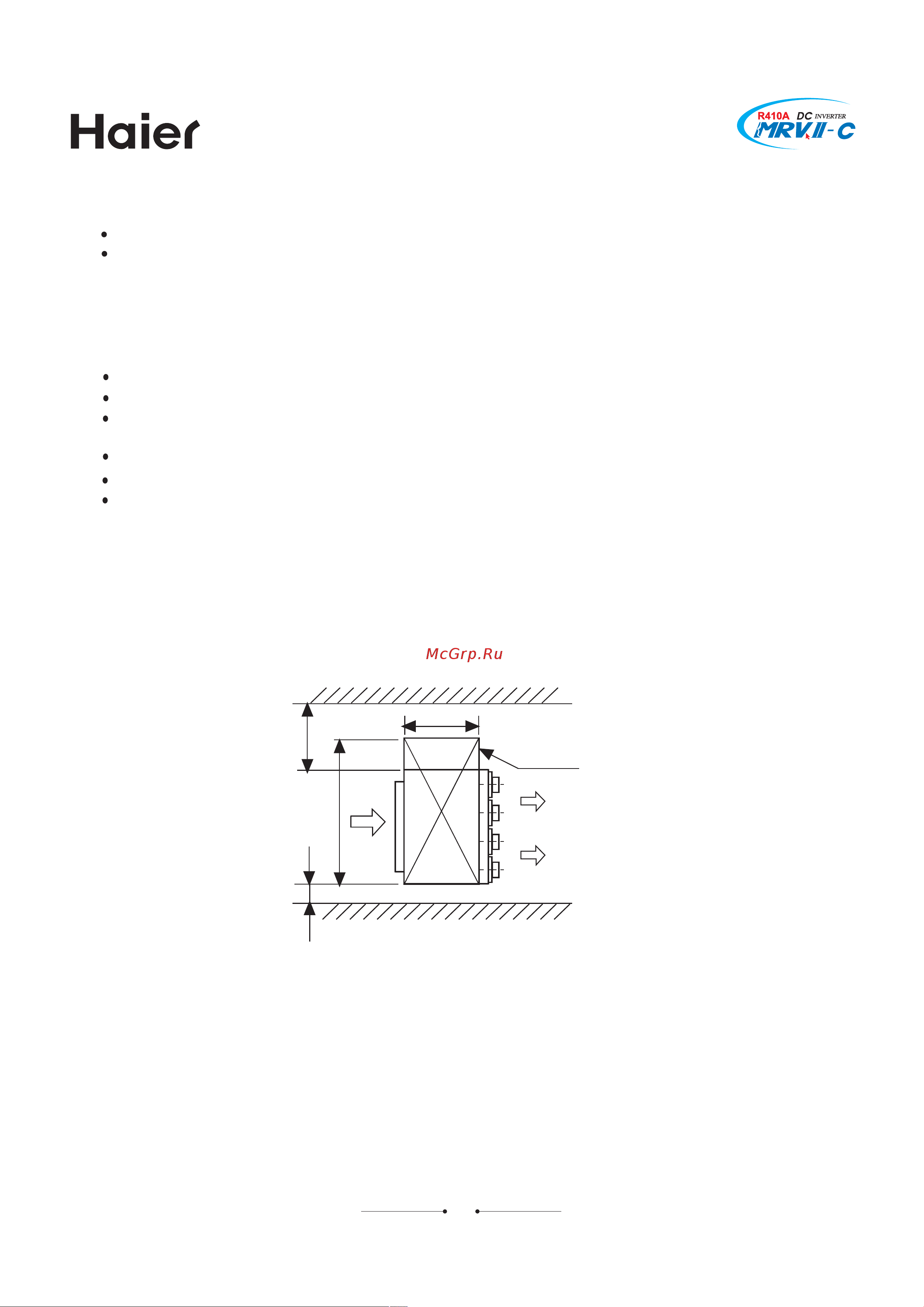

Installation space (unit:mm)
obstacle
620
100
checking hole
600
1720
(1) Before installation
Confirm the way to move the unit to the installation place.
Before moving the unit to the installation place, do not remove their packages.
When have to remove the package, use a soft material or protection board with rope to lift the unit assembly
to avoid unit damage or bumping a scrape.
(2) Choose installation place
A. The chosen installation place should meet the following requirements and get the user's agreement.
Place ensures ideal airflow distribution.
The passage of airflow has no obstacles.
When importing outside air, it should be imported directly from outdoors. (if the pipe can not be extended, it also can
not be imported from top)
Place ensures enough space for maintenance.
The pipe length between indoor and outdoor unit is in the permitted limit (referring to outdoor unit installation part).
The indoor unit, outdoor unit, electric wire and connection wire is at least 1m away from television and radio. This is
to avoid the image disturbance and noise caused by the above-mentioned home appliance. (Even if 1m away, if the
electromagnetic wave is too strong, it can also cause noise.)
B. The height of ceiling
The indoor unit can install on the ceiling, which height is no more than 3m.
C. Install the unit with suspending pole. Check if the installation place can bear the unit.
If not certain, strengthen it before installing the unit.
