Data Capture
81
5. The captured data appears in the text field.
Pairing the RS507/RS507X/RS6000 Hands-Free Imager
To connect the RS507/RS507X or RS6000 imager to the device, use one of the following methods:
• Simple Serial Interface (SSI)
• Bluetooth Human Interface Device (HID) Mode.
Pairing Using Simple Serial Interface (SSI)
To pair the RS507/RS507X or RS6000 with the device using SSI.
1. Swipe up from the bottom of the Home screen and touch .

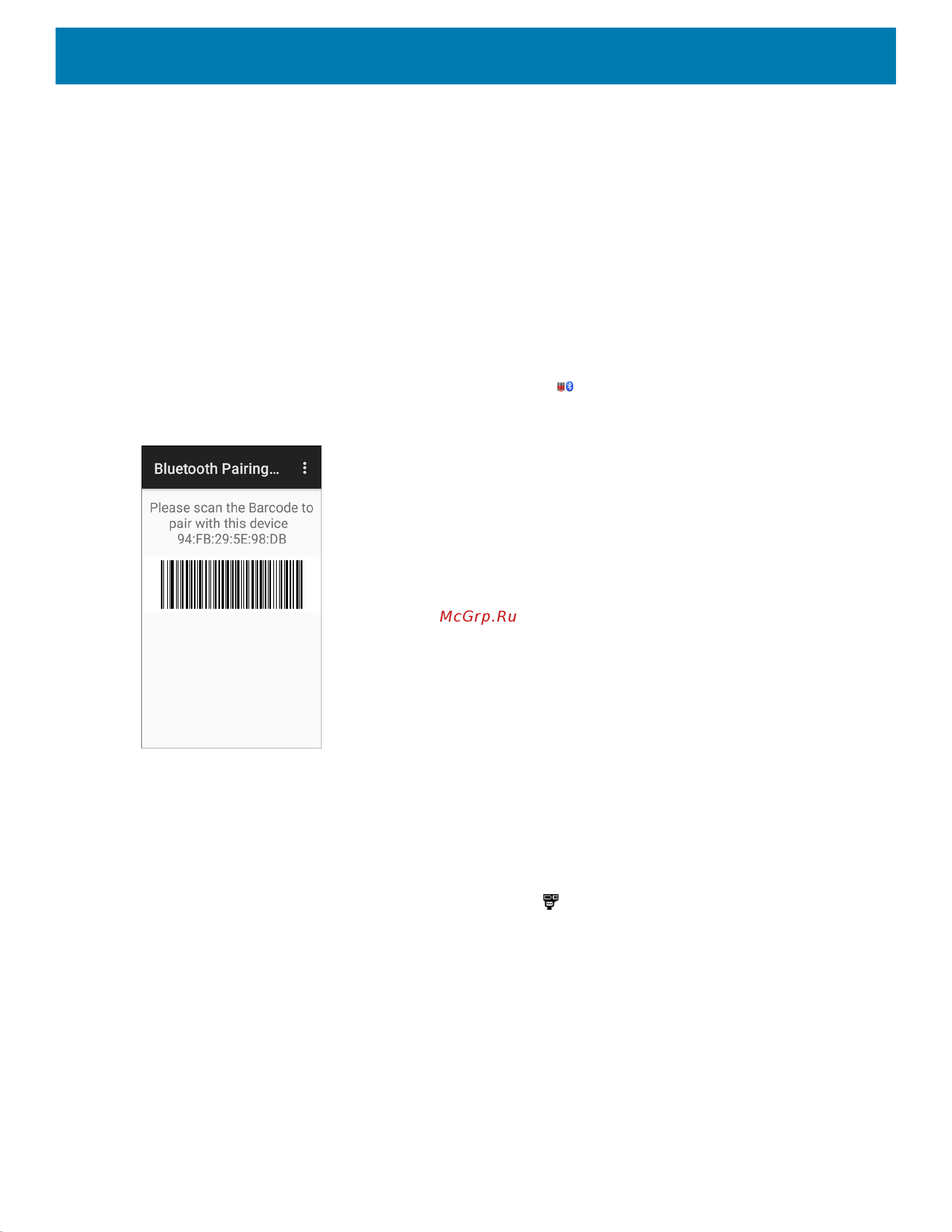

Figure 54 Bluetooth Pairing Utility
2. Using the RS507/RS507X or RS6000, scan the barcode on the screen.
The RS507/RS507X or RS6000 emits a string of high/low/high/low beeps. The Scan LED flashes green
indicating that the RS507/RS507X or RS6000 is attempting to establish connection with the device. When
connection is established, the Scan LED turns off and the RS507/RS507X or RS6000 emits one string of
low/high beeps.
A notification appears on the Notification panel and the icon appears in the Status bar.
Pairing Using Bluetooth Human Interface Device
To pair the RS507/RS507X or RS6000 with the device using Human Interface Device (HID):
1. Ensure that Bluetooth is enabled on both devices.
2. Ensure that the Bluetooth device to discover is in discoverable mode.
3. Ensure that the two devices are within 10 meters (32.8 feet) of one another.
4. Place the RS507/RS507X or RS6000 in HID mode. If the RS507/RS507X or RS6000 is already in HID
mode, skip to step 5.
