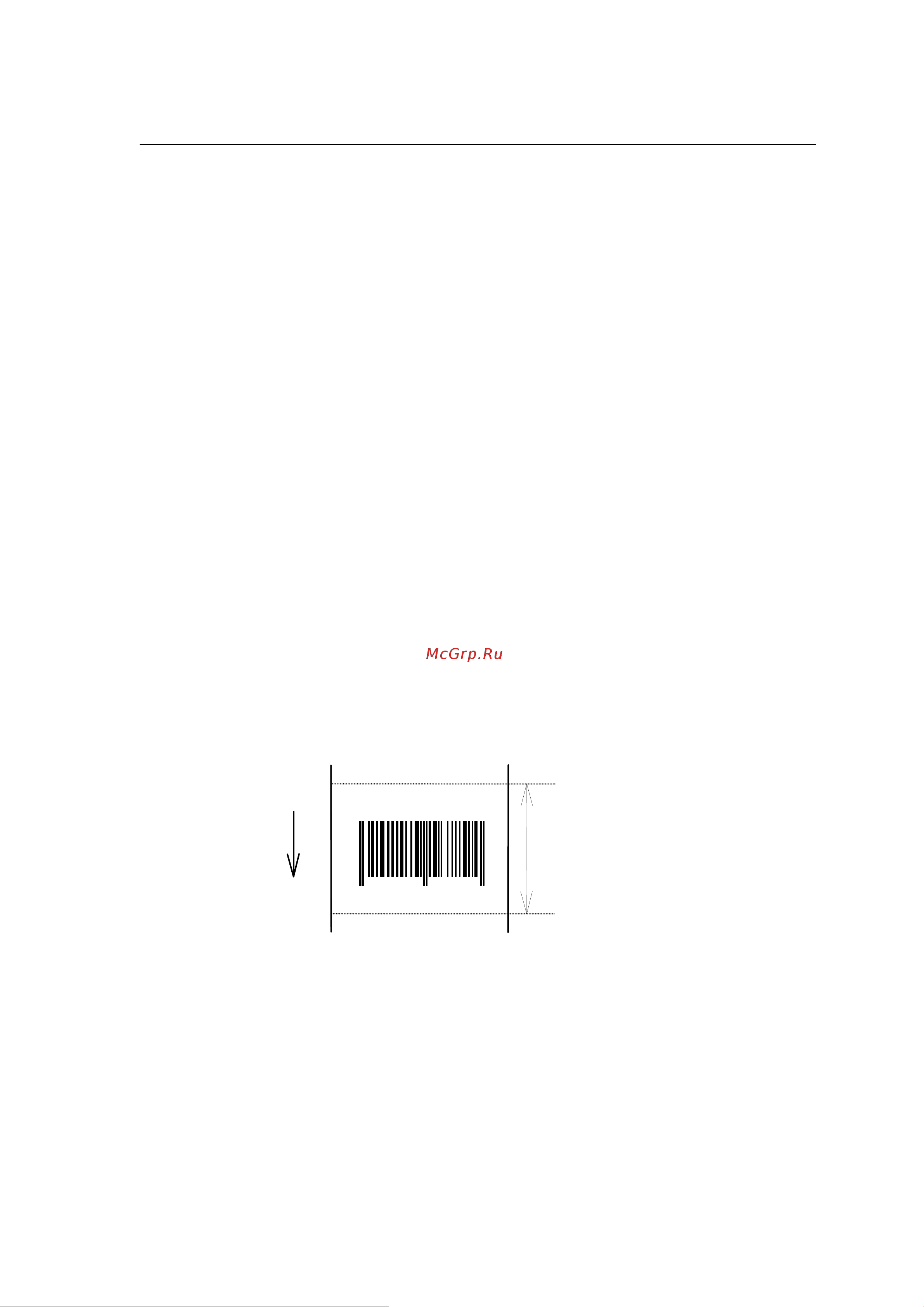

![Citizen CL-E303 [19/154] Setting paper length for continuous paper](/img/pdf.png)
Citizen CL-E303 [19/154] Setting paper length for continuous paper
![Citizen CL-E303 [19/154] Setting paper length for continuous paper](/views2/1842788/page19/bg13.png)
1-18
Setting paper length for continuous paper
Code
[02] c nnnn
Unit
0.01 inch
Setting
nnnn 4-digit data Initialization value: 0000
Inch system 0001 – 9999 (0.01 – 99.99 inches)
Metric system 0001 – 9999 (0.1 – 999.9 mm)
Function
Sets label length for continuous paper. Length of label format is
specified with this command. Label is cut in the length with this setting
when using auto-cutter. When using label paper, 0000 must be set.
Example
Example of input data below represents paper length of 2.5-inch
setting.
Input data
[02] n Sets units to inch system
[02] c 0250 Sets paper length to 2.5 inches
for continuous paper
[02] L Starts label format mode
D11 Sets pixel size
1F3306000500050490123456789 Sets EAN13 bar code for data
"490123456789"
E Ends label format mode and
prints
4
901234 567894
Paper length
2.5 in
Direction of feed
(c0250)
