Citizen CL-E303 [83/154] Ruled line definition
![Citizen CL-E303 [83/154] Ruled line definition](/views2/1842788/page83/bg53.png)
1-82
Ruled line definition
Code
1X11, 000, row, column, Lhhhvvv or lhhhhvvvv
Setting
1X11 1X11 fixed
000 000 fixed
row row address 0000 - 9999
column column address 0000 - 0398
L Specifies line (3-digit)
hhh Specifies horizontal width
v v v Specifies vertical width
l Specifies line (4-digit)
hhhh Specifies horizontal width
v v v v Specifies vertical width
Units
0.01 inch
Function
Prints ruled line with specified width. hhhh>vvvv designates
horizontal line. hhhh<vvvv designates vertical line.
Example
Input data below represents that ruled line with horizontal width of hhh
10 and vertical width of vvv 150 and ruled line with horizontal width of
hhh 200 and vertical width of vvv 10 are printed.
Input data
[02] n Sets units to inch
[02] L Starts label format mode
1X1100000500050L010150 Sets ruled line with 0.1 x 1.5 inch
1X1100000500100L200010 Sets ruled line with 2.0 x 0.1 inch
E Ends label format mode and prints

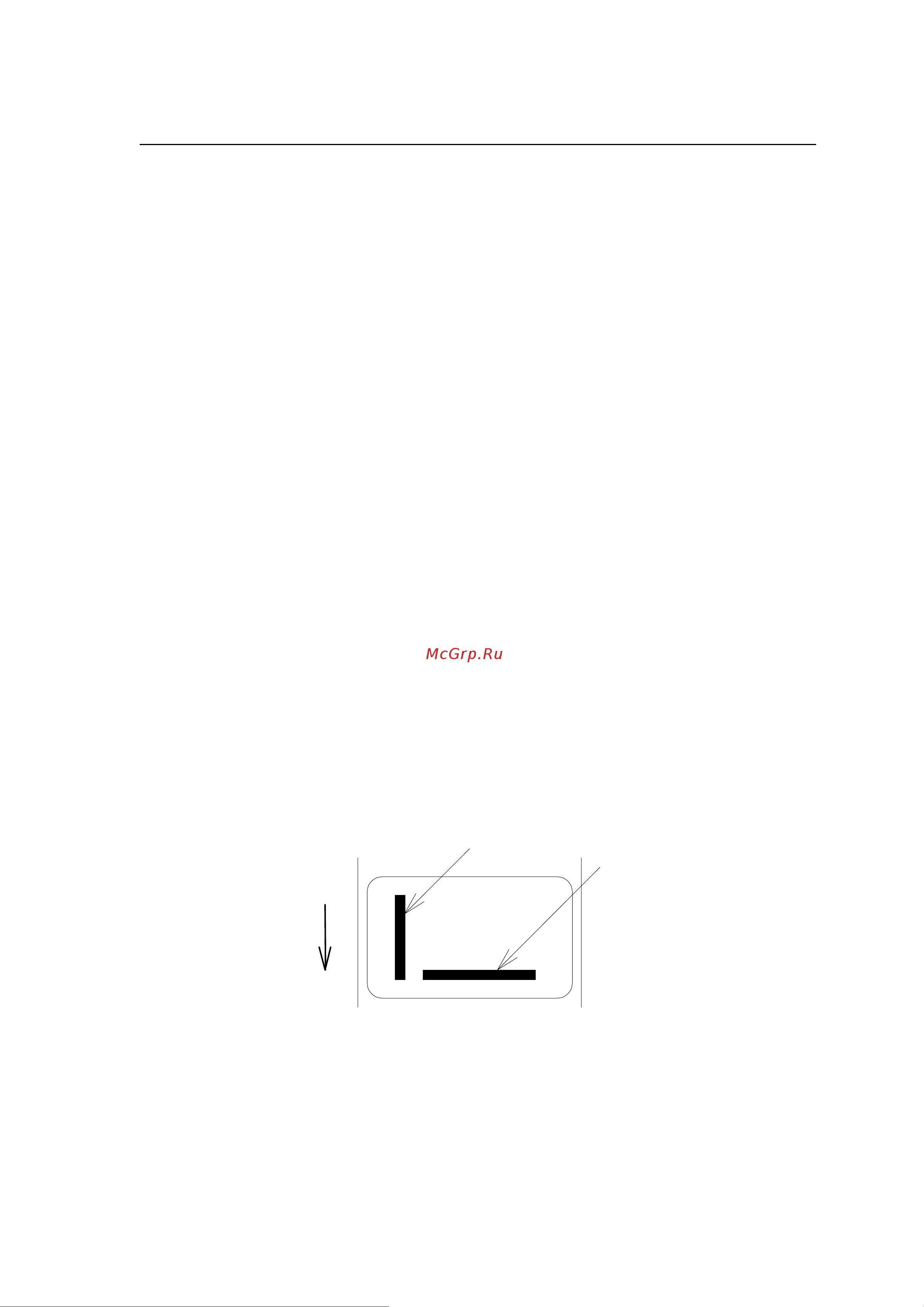

Direction of feed
hhhh<vvvv
hhhh>vvv
v
