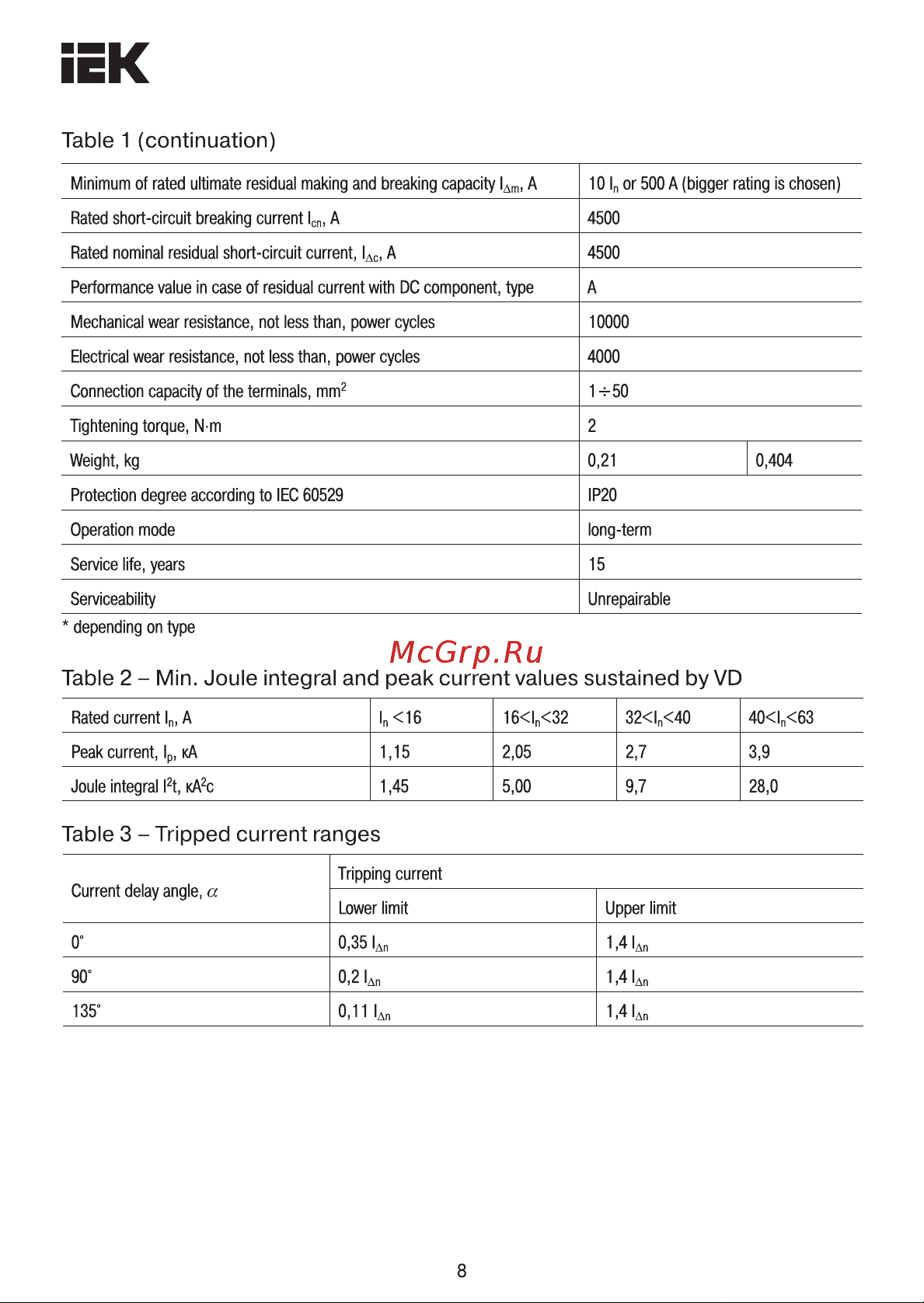

Iek ВД1-63 MDV11-2-032-030 [8/13] Table 1 continuation
![Iek ВД1-63 MDV11-2-032-030 [8/13] Table 1 continuation](/views2/1880888/page8/bg8.png)
Содержание
- Без встроенной защиты от сверхгоков вд1 63 тип а 1
- Выключатели дифферециальные 1
- Страница 1 1
- Продолжение таблицы 1 2
- Страница 2 2
- Таблица 2 минимальные значения интеграла джоуля и пикового тока выдерживаемые бд 2
- Таблица 3 диапазоны тока расцепления бд 2
- Страница 3 3
- Страница 4 4
- Страница 5 5
- Страница 6 6
- As at construction sites they are installed into low voltage complete input and distribution devices with protection degree not less than ip30 7
- General technical parameters 2 general technical parameters of vds are listed in table 1 2 min joule integral and peak current values sustained by vds are listed 7
- In table 2 7
- Operation manual 7
- Overcurrent protection of domestic and analogous use functionally not depend ing on the circuit voltage hereinafter referred to as the vd are intended for the automated supply disconnection in case of insulation damage in single or three phase ac electrical networks having the rated voltage limited to 400v frequency 50hz according to their characteristics they correspond to en 61008 1 en 61008 2 1 en 61543 requirements 7
- Purpose and application 1 iek brand residual current circuit breakers vd1 63 type a without built in 7
- Residual current circuit breakers rccb vd1 63 type a 7
- Table 1 general parameters 7
- Tripped current ranges are listed in table 3 2 overall and installation dimensions are shown in figures 1 and 2 2 electric schematic diagrams are shown in figures 3 and 4 7
- Vds are intended for use in residential public industrial objects as well 7
- Without built in overcurrent protection 7
- Страница 7 7
- Table 1 continuation 8
- Table 2 min joule integral and peak current values sustained by vd 8
- Table 3 tripped current ranges 8
- Страница 8 8
- Страница 9 9
- Страница 10 10
- Страница 11 11
- Accepted 12
- After the service life expiration vds should be transferred to organization 12
- Claims concerning vds which seal was damaged or removed are not 12
- Conditions of meeting by the consumer of exploitation requirements as well as transporting and storage conditions 12
- Engaged in primary metals processing 12
- Mongolia iek mongolia llc 12
- Republic of moldova iek trade l l c 12
- Russian federation iek holding llc 12
- To a specialized enterprise for the processing of household electronic equipment 12
- Vd can not be disposed of as household wastes for disposal transfer 12
- Vd storage shall be implemented only in the original package in self 12
- Ventilated premises having the ambient temperature ranging from 25 to 45 c and relative humidity limited to 50 at 40 c storing the goods at relative humidity up to 90 and temperature of 20 c is admitted 12
- Warranty liabilities 8 guaranteed service life is limited to 10 years from the date of sale upon 12
- Информация для потребителей consumer information в период гарантийных обязательств и при возникновении претензий 12
- Монголия иэк монголия коо 12
- Обращаться к продавцу или в организации during the warranty period and in case of complaints contact the seller or organization 12
- Республика молдова иэктрэйд о о о 12
- Российская федерация ооо иэк холдинг 12
- Страница 12 12
- Asian countries rebublic of kazakhstan th iek kaz llp 13
- Eu countries republic of latvia llc lekbaltia 13
- Republic of belarus llc iek holding 13
- Ukraine trade house ukrelektrokomplekt llc 13
- Издание 4 version 4 13
- Республика беларусь ооо иэк холдинг 13
- Страница 13 13
- Страны азии республика казахстан тоо тд иэк каз 13
- Страны евросоюза латвийская республика ооо иэк балтия 13
- Украина ооо торговый дом укрэлектрокомплект 13
Похожие устройства
- Era LPR-041-1-65K-020 (Б0043574) Инструкция по эксплуатации
- Era LPR-041-1-65K-030 (Б0043575) Инструкция по эксплуатации
- Era LPR-021-0-40K-030 (Б0043560) Инструкция по эксплуатации
- Era LPR-041-2-65K-030 (Б0043586) Инструкция по эксплуатации
- Era LPR-041-2-65K-050 (Б0043587) Инструкция по эксплуатации
- Era LPR-021-0-65K-050 (Б0043564) Инструкция по эксплуатации
- Era LPR-021-0-65K-100 (Б0043566) Инструкция по эксплуатации
- Era LPR-061-0-65K-100 (Б0043592) Инструкция по эксплуатации
- Квт WS-13 (71105) Инструкция по эксплуатации
- Duwi DDP-05 25816 2 Инструкция по эксплуатации
- Duwi 25870 4 FR-01 Инструкция по эксплуатации
- Duwi 25873 5 FR-04 Инструкция по эксплуатации
- Duwi 25874 2 FR-05 Инструкция по эксплуатации
- Ritter Travellight+ (29068 1) Инструкция по эксплуатации
- Parpol MSH 120 Инструкция по эксплуатации
- Parpol VSZ 200 Инструкция по эксплуатации
- Gefest ПГ 700-02 (00000000014) Инструкция по эксплуатации
- MARCON SPRAY Инструкция по эксплуатации
- BREXIT 2020023 Инструкция по эксплуатации
- BREXIT 2020024 Инструкция по эксплуатации
iEK Table 1 continuation Minimum of rated ultimate residual making and breaking capacity lAm A 10 ln or 500 A bigger rating is chosen Rated short circuit breaking current lcn A 4500 Rated nominal residual short circuit current lAC A 4500 Performance value in case of residual current with DC component type A Mechanical wear resistance not less than power cycles 10000 Electrical wear resistance not less than power cycles 4000 Connection capacity of the terminals mm2 14 50 Tightening torque N m 2 Weight kg 0 21 Protection degree according to IEC 60529 IP20 Operation mode long term 0 404 Service life years 15 Serviceability Unrepairable depending on type Table 2 Min Joule integral and peak current values sustained by VD Rated current ln A I 16 16 ln 32 32 ln 40 Peak current lp KA 1 15 2 05 2 7 3 9 Joule integral l2t KA2C 1 45 5 00 9 7 28 0 Table 3 Tripped current ranges Tripping current Current delay angle a Lower limit Upper limit 0 0 35 l4n 1 41 90 0 2 I 1 4 Ln 135 0 11 L 1 4 Ln 8 40 ln 63
