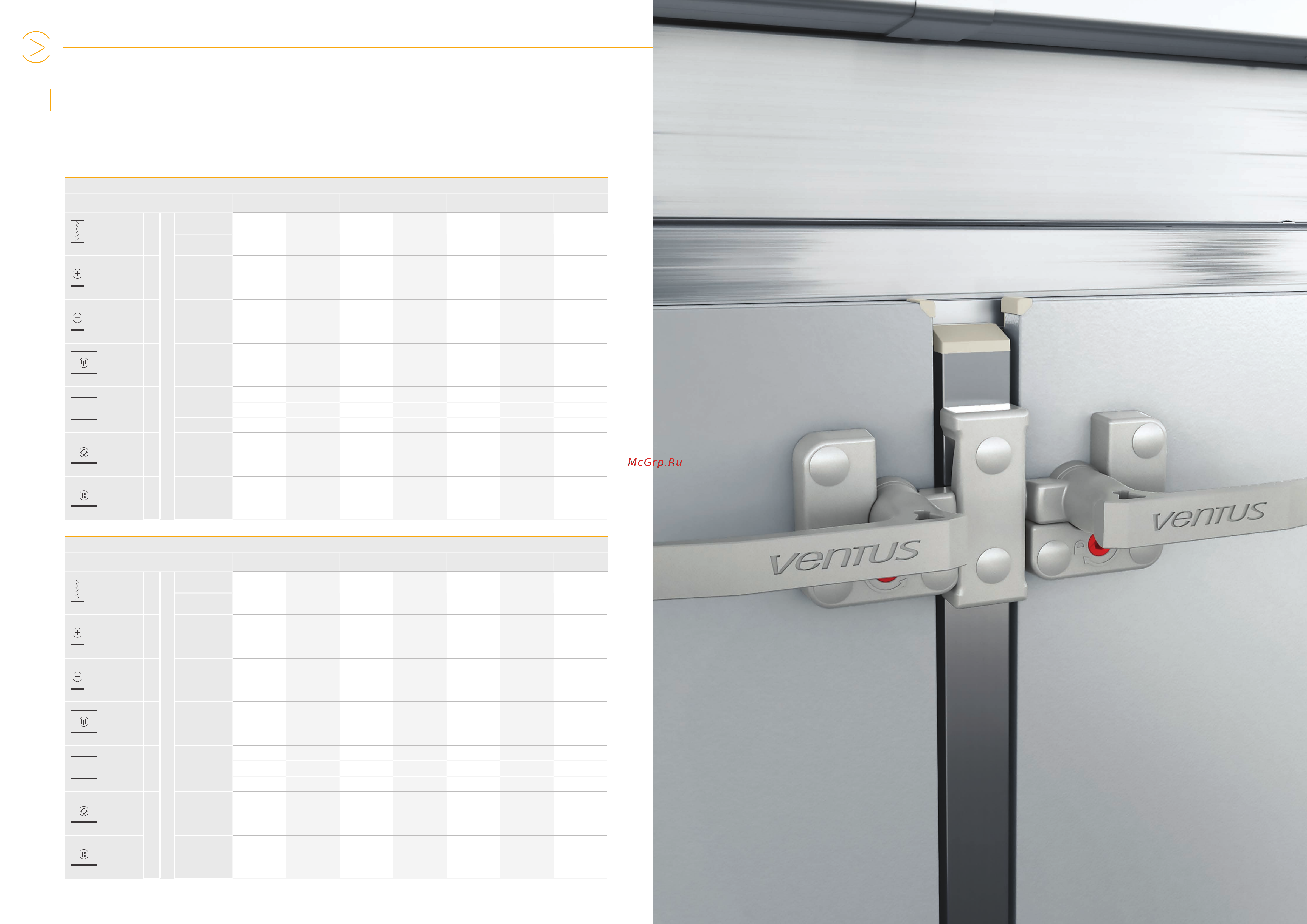

ADDITIONAL CONFIGURATION CUNCTIONS - VVS
021-650 - RECUPERATOR (HEX & PREMIUM PLUS),
REGENERATOR (HEAT WHEEL), SUPPLY & EXHAUST
Remaining conguration functions – typical lengths of function arrangement
VVS021 VVS030 VVS040 VVS055 VVS075 VVS100 VVS120
F
L
[mm]
F7/F9 762 762 762 762 762 762 762
EU4/F5 366 366 366 366 366 366 366
H
L
H 366 366 366 366 366 366 366
C
L
C
366 366 366 366 366 366 366
S
L
S 1098 1098 1098 1098 1098 1098 1098
E
L
E(e1) 366 366 366 366 366 366 366
E(e2) 762 762 762 762 762 762 762
E(e3) 1098 1098 1098 1098 1098 1098 1098
M
L
M 762 762 762 762 762 762 762
W
L
W 1098 1098 1098 1098 1098 1098 1098
Dimension
Function version
Remaining conguration functions – typical lengths of function arrangement
VVS150 VVS180 VVS230 VVS300 VVS400 VVS500 VVS650
F
L
[mm]
F7/F9 762 762 762 762 762 762 762
EU4/F5 366 366 366 366 366 366 366
H
L
H 366 366 366 366 366 366 366
C
L
C
366 366 366 366 366 366 366
S
L
S 1098 1098 1098 1098 1098 1098 1098
E
L
E(e1) 366 366 366 366 366 366 366
E(e2) 762 762 762 762 762 762 762
E(e3) 1098 1098 1098 1098 1098 1098 1098
M
L
M 1098 1098 1098 1098 1098 1098 1098
W
L
W 1098 1098 1098 1098 1098 1098 1098
Dimension
Function version
Technical Specification
38
