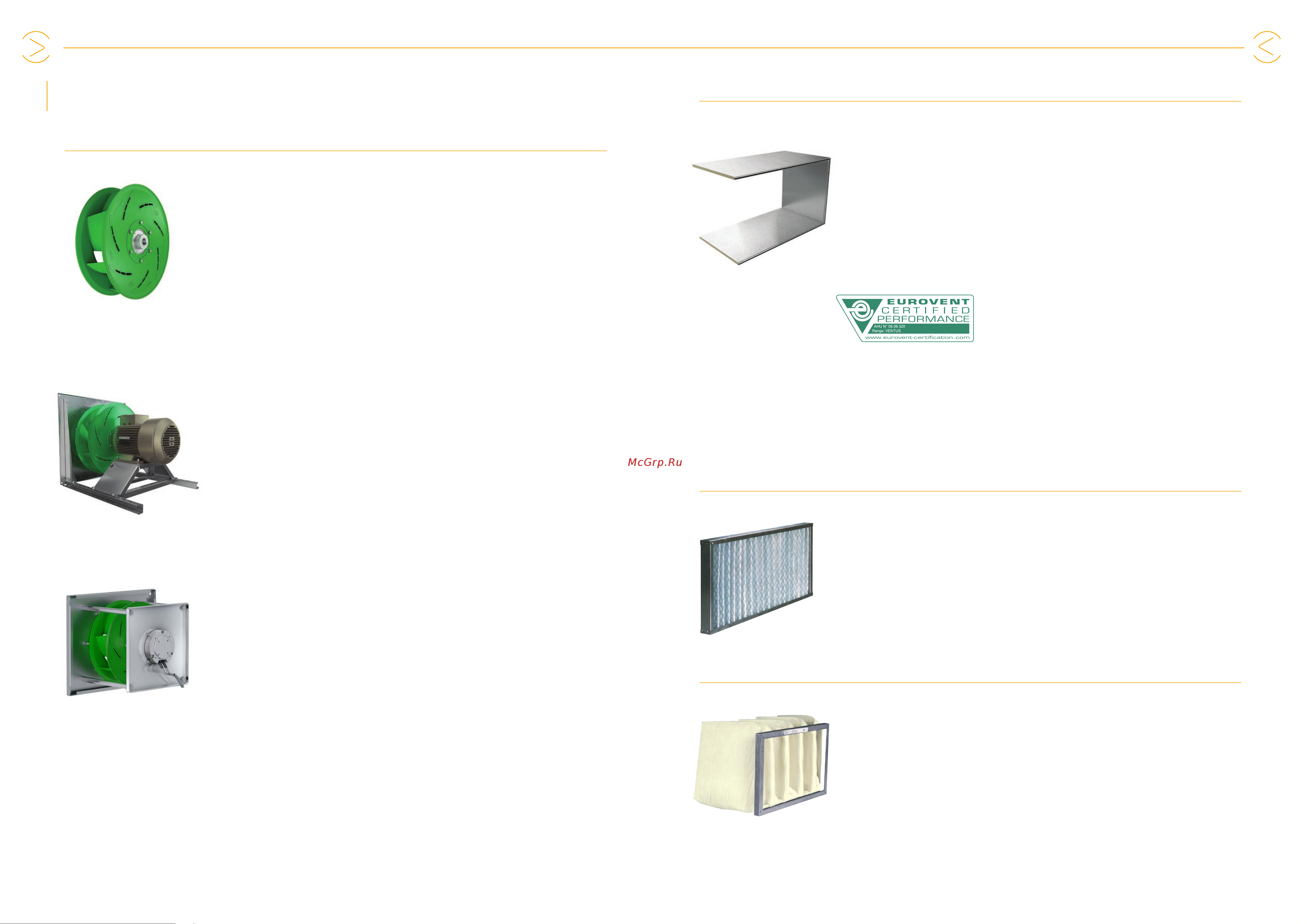

COMPONENTS
Design and application
» Centrifugal fan, without casing, single
inlet, PLUG type, with backward
curved blades.
» Impeller made of SAN (styrene/
acrylonitryle) construction material
with 20% glass ber.
» Direct drive – fan impeller installed
directly on motor shaft.
» Fan section consisting of single
or multiple fans (fan array) in
order to ensure optimum working
parameters.
Specication
» Low and medium pressure
ventilation systems with fan static
pressure not exceeding
2000 Pascals.
» Maximum fan set working
temperature: 60°C.
DIRECT DRIVE PLUG FAN SET
» Fan and motor mounted on common
housing, separated from AHU casing
by set of rubber vibration absorbing
mounts.
» Motors of TEFC type
(Totally Enclosed, Fan-Cooled).
» Motors tted for IEC standard.
» Variable Frequency Drive (VFD) –
standard equipment of the fan-set.
» Available Energy classes: IE2, IE3
» Rated voltage: 3x230V AC,
3x400V AC.
» Number of poles: 2 or 4.
» Motor winding insulation class: F
(tted for VFD operations).
» Bearings lifetime: L
10
= 20000h
/ L
50
= 100000h.
» Protection degree: IP55.
» Maximum working ambient
temperature: 60°C.
> AC MOTORS
» Set of fan and motor mounted on
common rail, xed to the AHU fan
diaphragm.
» EC motors are Permanent Magnet
motor, characterised by much higher
efciency vs traditional inductive AC
motors.
» EC motors (Electronically
Commutated) – where mechanical
commutator switching the windings
has been replaced with electronic
one.
» Change of revolutions is done by
means of changing the frequency
rate of windings switching (rate or
magnetic eld rotating).
» Highly inductive permanent magnets
have applied in EC motors used by
VTS, which enabled to achieve high
torque at relatively small dimensions,
together with reaching IE4 efciency
class.
» Available Energy classes: IE4.
» Rated voltage: EC motors of nominal
capacity exceeding 0,75kW -
3x400V AC.
» Rated voltage: EC motors of nominal
capacity equal or less 0,75kW -
1x230V AC.
» Motor widing insulation class: F.
» Protection degree: IP54.
» Maximum working ambient
temperature: 55°C.
» Lifespan:
- 70 000 hours at load not exceeding
70% of nominal capacity at ambient
temperature not exceeding 35°C,
- 30 000 hours at 100% capacity
load at ambient temperature not
exceeding 55°C.
> EC MOTORS
Design and application
» Casing structure made of ‘sandwich’
type panels formed in ‘C’ shape and
reinforced by system of internal
frames.
» "Sandwich"" double skin panels made
of rigid polyurethane foam.
» Indoor and outdoor application.
» Inspection panels mounted
on AHU side.
» Casing supported on steel base rails.
Specication
» Working temperature:
(-40)°C ÷ (+90)°C.
» Panel thickness: 40mm.
» Thermal conductivity PPU
λ= 0,022 W/mK.
» Casing re resistance:
non-amable, non re spreading
(NRO).
» Moisture absorption: 0,04%.
» PPU density: ρ= 42kg/m³.
» Eurovent certication
• Mechanical strength of casing:
-1000 Pa ÷ 1000 Pa < 2mm (D
1
- PN
EN 1886: 2008),
• Casing tightness: (MB): (-400) Pa
- 0,05 l/sm², (+700) Pa - 0,13 l/sm²
(L
1
-PN EN 1886: 2008); (RU): (+400)
Pa - 0,93 l/sm²,
• Casing heat transfer coefcient: K=
0,6 W/m²K (T2 - PN EN 1886: 2008),
• Thermal bridges coefcient: K
b
=0,52
(TB
3
- PN EN 1886: 2008).
CASING
Design and application
» Pleated ltration fabric shielded
by steel net, installed in 50 mm thick
frame.
» Filtration fabric made of polyester
bres.
» Applied as initial air ltration stage.
Specication
» Working temperature:
max (+70)°C, 100% RH.
Filtration classes available
» ISO Coarse 75% (ISO 16890)
- G4 (EN779).
PANEL FILTERS
Design and application
» Filtration fabric made of polyester
bres.
» Bags xed to to 25 mm thick frame.
» Filters of class M5 - bags length:
300 mm, Filters of class F7 & F9
- bags length: 600 mm.
» Applied as initial, secondary of nal
air ltration stage.
Specication
» Working temperature:
max (+70)°C, 100% RH.
Filtration classes available
» ISO ePM10 50% (ISO 16890)
- M5 (EN779).
» ISO ePM2,5 65% (ISO 16890)
- F7 (EN779).
» ISO ePM1 70% (ISO 16890)
- F9 (EN779).
BAG FILTERS
VVS005 – VVS650
Components Components
4140
