VTS American VENTUS AVS 130 [12/45] Design
![VTS American VENTUS AVS 085 [12/45] Design](/views2/1894743/page12/bgc.png)
MORE THAN 2,000
HOURS SALT SPRAY
TEST PROTECTION
3000
2500
2000
1500
1000
500
0
RESISTANCE TO CORROSION
Salt spray test according to ASATMB - 117
VENTUS AHU
new coating resistance
Number of hours
CASING SKIN
» high rigidity and durability of the AHU structure
» low absorption of heat radiation and UV
» perfect resistance to weather conditions
162
20 Mu
Z275
20 Mu
AZ150
2412

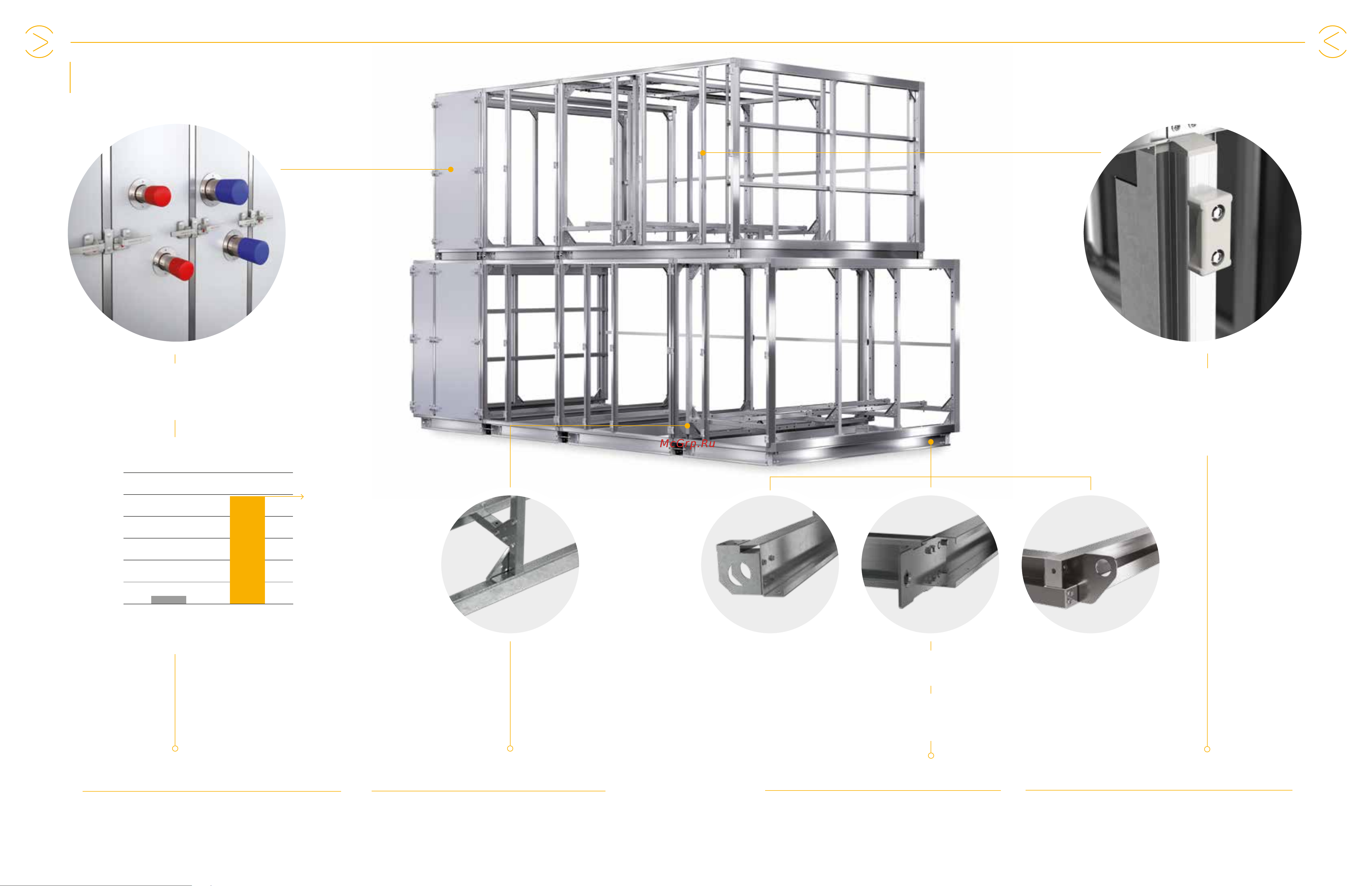

DESIGN
FAN SECTION CAGE
» high longitudinal stiffness of the structure
» easy section assembly
ALUMINUM
POSTS
AS STANDARD
FOR ALL TYPES
OF UNITS
AVS040-AVS085
Z PROFILE
AVS100-AVS380
C PROFILE
GALVANIZED STEEL SUPPORT
AS STANDARD
FOR ALL TYPES OF UNITS
CONVENIENT
» easy transport
» great prole resistance to deflection
STRUCTURAL POSTS
» thermally broken as standard
» high resistance to weather conditions
and UV radiation
AVS040-AVS380
CURB READY RAILS
Units Units
2322
