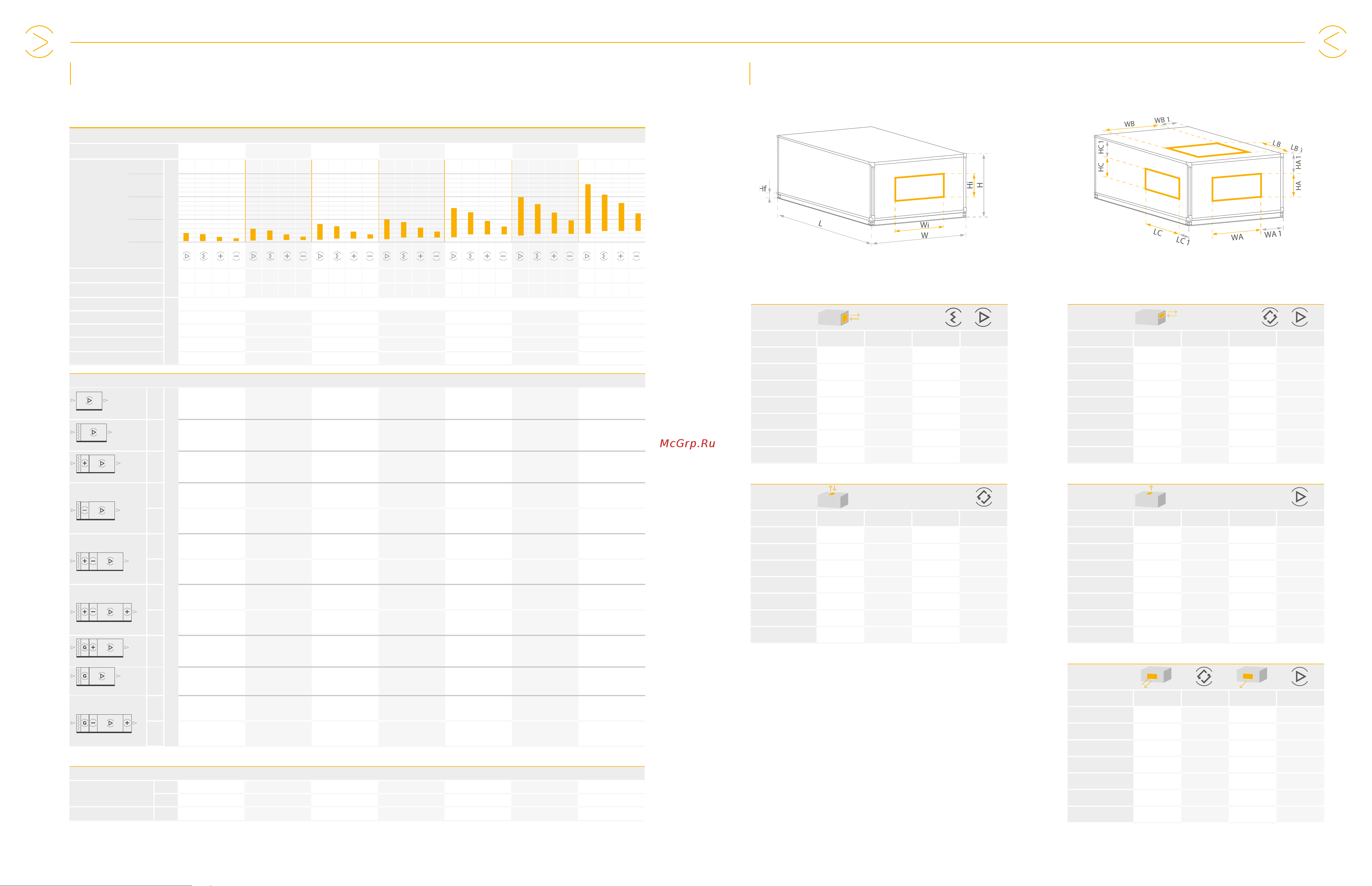

AVS 8-55 - SUPPLY & EXHAUST DIMENSIONS - AVS 8-55 - SUPPLY & EXHAUST
AIR INLET / DISCHARGE DIMENSIONS
UNIT CODING
AVS - XXX - R/L - EM / HC / EM
AVS - type of AHU family
XXX - size of unit (equal to the rated air flow in cfm)
R/L - inspection side (R- right, L -left)
EM - symbols of additional functions upstream main functions
HC - symbols of main thermodynamic functions (basic functions)
EM - symbols of additional functions downstream main functions
Length depends on AHU equipment
Top (US)
UNIT WB LB WB1 LB1
AVS 008 17.94 7.94 5.00 11.46
AVS 012 25.94 7.94 6.34 11.46
AVS 016 33.94 7.94 5.16 11.46
AVS 020 25.94 11.94 10.43 9.46
AVS 030 33.94 11.94 9.80 9.46
AVS 040 47.20 22.64 5.93 8.66
AVS 055 52.76 27.36 6.69 8.66
END FULL (FF)
UNIT WA HA WA1 HA1
AVS 008 21.65 12.13 3.15 3.15
AVS 012 32.32 12.13 3.15 3.15
AVS 016 37.91 14.17 3.15 3.15
AVS 020 40.47 17.32 3.15 3.15
AVS 030 47.20 22.64 3.15 3.15
AVS 040 52.76 27.36 3.15 3.15
AVS 055 59.84 31.30 3.15 3.15
END (FS)
UNIT WA HA WA1 HA1
AVS 008 17.99 7.99 5.03 5.23
AVS 012 25.98 7.99 6.33 5.23
AVS 016 34.02 7.99 5.13 6.23
AVS 020 25.98 12.01 10.43 5.83
AVS 030 34.02 12.01 9.83 8.53
AVS 040 40.47 17.32 9.29 8.19
AVS 055 47.20 22.64 9.47 7.48
Top (US)
UNIT WB LB WB1 LB1
AVS 008 17.99 7.99 5.03 4.33
AVS 012 25.98 7.99 6.33 4.33
AVS 016 34.02 7.99 5.13 4.33
AVS 020 25.98 12.01 10.43 4.33
AVS 030 34.02 12.01 9.83 4.33
AVS 040 40.47 17.32 9.29 8.27
AVS 055 47.20 22.64 9.47 5.31
Side (BS)
UNIT HC LC HC1 LC1
AVS 008 10.94 7.94 4.33 3.74
AVS 012 10.94 7.94 4.33 3.74
AVS 016 12.94 7.94 4.33 3.74
AVS 020 15.94 11.94 4.33 3.82
AVS 030 20.94 11.94 4.33 3.98
AVS 040 16.26 14.96 6.89 8.70
AVS 055 24.13 14.96 6.89 6.73
Recommended range of airflow
Size AVS 008 AVS 012 AVS 016 AVS 020 AVS 030 AVS 040 AVS 055
[CFM]
Min.
332 427 427 427 480 618 618 618 636 819 819 819 806 1037 1037 1037 1185 1524 1524 1524 1567 1945 1945 1945 2003 2419 2419 2419
Max.
2140 1883 1254 924 3091 2719 1817 1339 4096 3605 2486 1832 5186 4564 3331 2454 7622 6708 4835 3563 10078 8559 6697 4934 12880 10648 8758 6453
H
f
[inch]
3.54
H 21.97 21.97 24.02 27.17 32.48 37.20 41.14
W 27.95 38.62 44.21 46.77 53.50 59.06 66.14
W
i
24.02 34.68 40.28 42.83 49.57 55.12 62.20
H
i
14.49 14.49 16.54 19.69 25.00 29.72 33.66
Basic congurations
AVS-XXX- R -V
-
[inch]
44.26 44.26 44.26 44.26 58.65 58.65 73.05
AVS-XXX- R -FV
-
58.65 58.65 58.65 58.65 73.05 73.05 87.45
AVS-XXX- R -FHV
-
73.05 73.05 73.05 73.05 87.45 87.45 101.85
AVS-XXX- R -FCV
-
73.05 73.05 73.05 73.05 87.45 87.45 101.85
4
87.45 87.45 87.45 87.45 87.45 87.45 101.85
AVS-XXX- R -FHCV
-
87.45 87.45 87.45 87.45 101.85 101.85 116.24
4
101.85 101.85 101.85 101.85 101.85 101.85 116.24
AVS-XXX- R -FHCV
-
101.85 101.85 101.85 101.85 116.24 116.24 130.64
4
116.24 116.24 116.24 116.24 116.24 116.24 130.64
AVS-XXX- R -FGHV
-
87.45 87.45 87.45 87.45 101.85 101.85 116.24
AVS-XXX- R -FGV
-
73.05 73.05 73.05 73.05 87.45 87.45 101.85
AVS-XXX- R -FGCVH
-
101.85 101.85 101.85 101.85 116.24 116.24 130.64
4
116.24 116.24 116.24 116.24 116.24 116.24 130.64
DE*
Additional functions
Empty section
L
min
29.86 29.86 29.86 29.86 29.86 29.86 29.86
L
max
29.86 29.86 29.86 29.86 29.86 29.86 29.86
Mixing box
L
29.86 29.86 29.86 29.86 29.86 29.86 29.86
15 000
10 000
5 000
0
Rated parameters
Main conguration
* Include Droplet Eliminator after Cooling Coil
Units with external lters instead of internal are shorter by 14.4 inches
