![VTS American VENTUS AVS 130 [32/45] Connecting point construction and wiring](/img/pdf.png)
VTS American VENTUS AVS 130 [32/45] Connecting point construction and wiring
![VTS American VENTUS AVS 008 [32/45] Connecting point construction and wiring](/views2/1894743/page32/bg20.png)

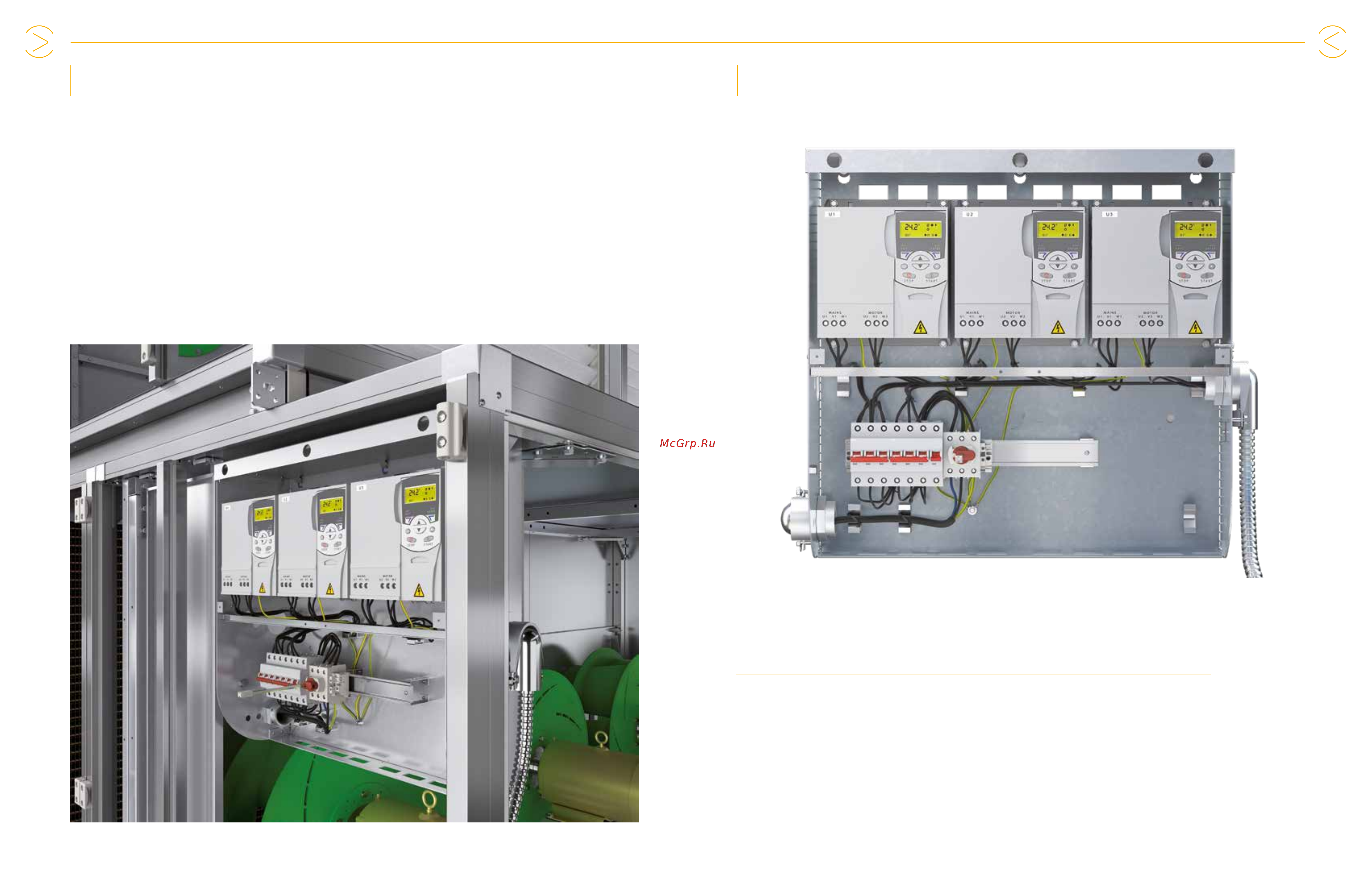

The Connecting Point is the power supply and VFD Enclosure, the internal wiring system of the air-handling
unit related to power supply and control of fan motors. It is mounted separately for the supply and exhaust fan
sections.
It consists of a casing, a frequency converter (VFD), surge protection, emergency (service) switch, strip connector,
factory-produced internal power circuits, and control wiring of the fan drive system (motor-inverter). In the case
of vertical air-handling units, an external wired outlet is mounted on the casing and connected to the Connecting
Point.
The Connecting Point is equipped with aggregate terminals for power supply circuits; inverter circuits are factory-
connected to these terminals.
CONNECTING POINT CONSTRUCTION AND WIRING
THE MAIN BENEFITS OF AIR-HANDLING UNITS EQUIPPED
WITH THE CONNECTING POINT ARE AS FOLLOWS:
» the certainty of correctness of internal connections supplying the motor and the VFD
» reliability of factory-tested connections and air-handling unit operation
» on-site time-savings on wiring
» lower costs of the whole installation
» factory installation of the service switch
» clear liability of the producer for the connection and conguration of inverters and motors
Connection and controls Connection and controls
