VTS American VENTUS AVS 130 [13/45] Air tightness
![VTS American VENTUS AVS 008 [13/45] Air tightness](/views2/1894743/page13/bgd.png)

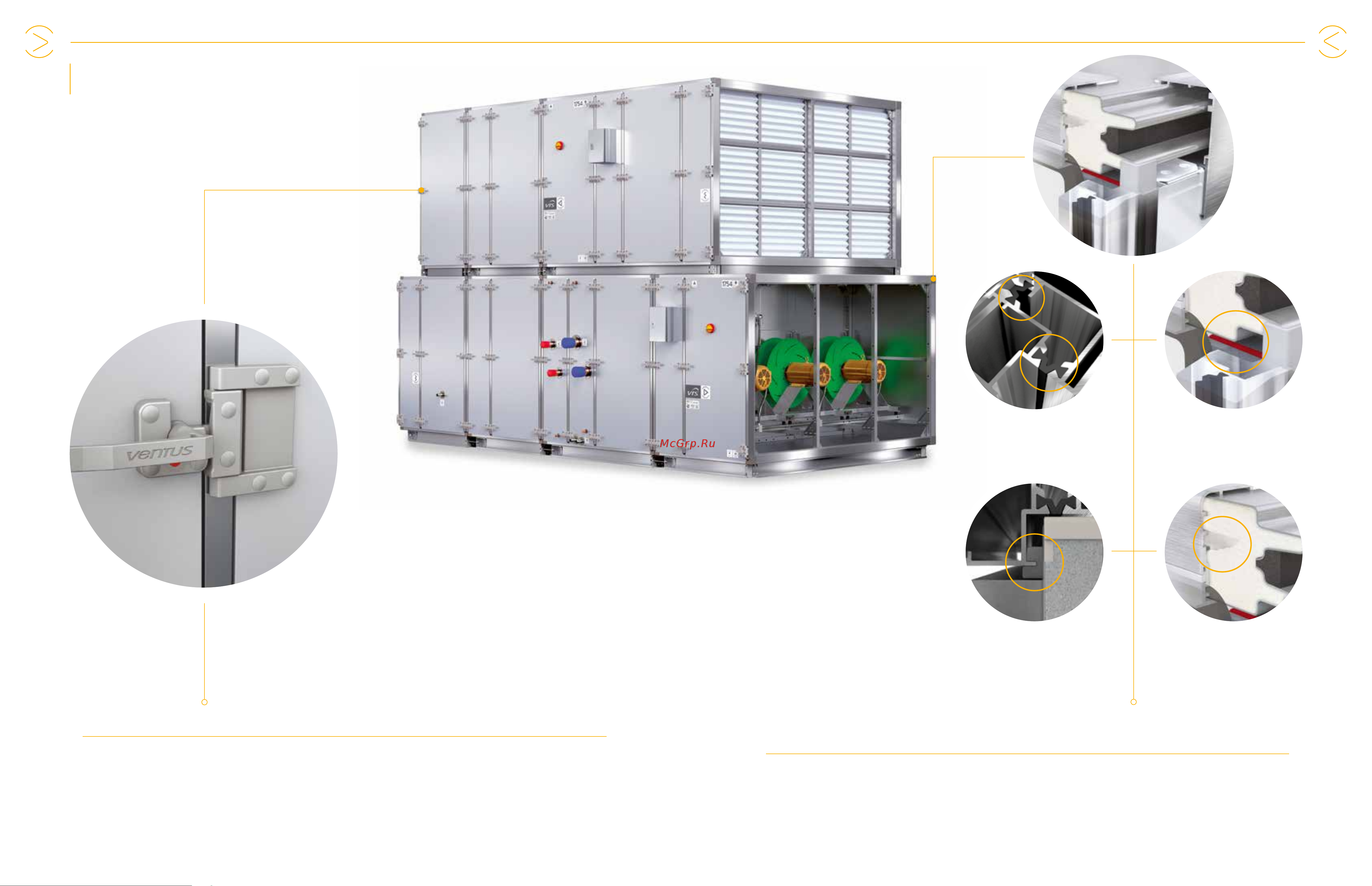

ERGONOMIC INSPECTION PANEL LOCK
» Highly aesthetic and ergonomic handles securing perfect tightness of inspection panels.
AIR TIGHTNESS
ALUMINUM STRUCTURAL POSTS WITH AN ADDITIONAL SEALING FIN
AND A THERMAL INSERT
» thermal break as standard - ensures no condensation outside the AHU
» the n ensures labyrinth sealing – currently the most effective solution on the market, mainly used
in laboratory equipment
» original solution consisting in the use of symmetrical channel tension lled with a sealing compound,
which provides 100% tightness of the connection between the column and construction structure
THERMAL
BREAK
LABYRINTH
SEALING
ADDITIONAL
POST SEALING
ADDITIONAL
SEALING EDGE
*
patent pending; information will be published after it's formal validation.
