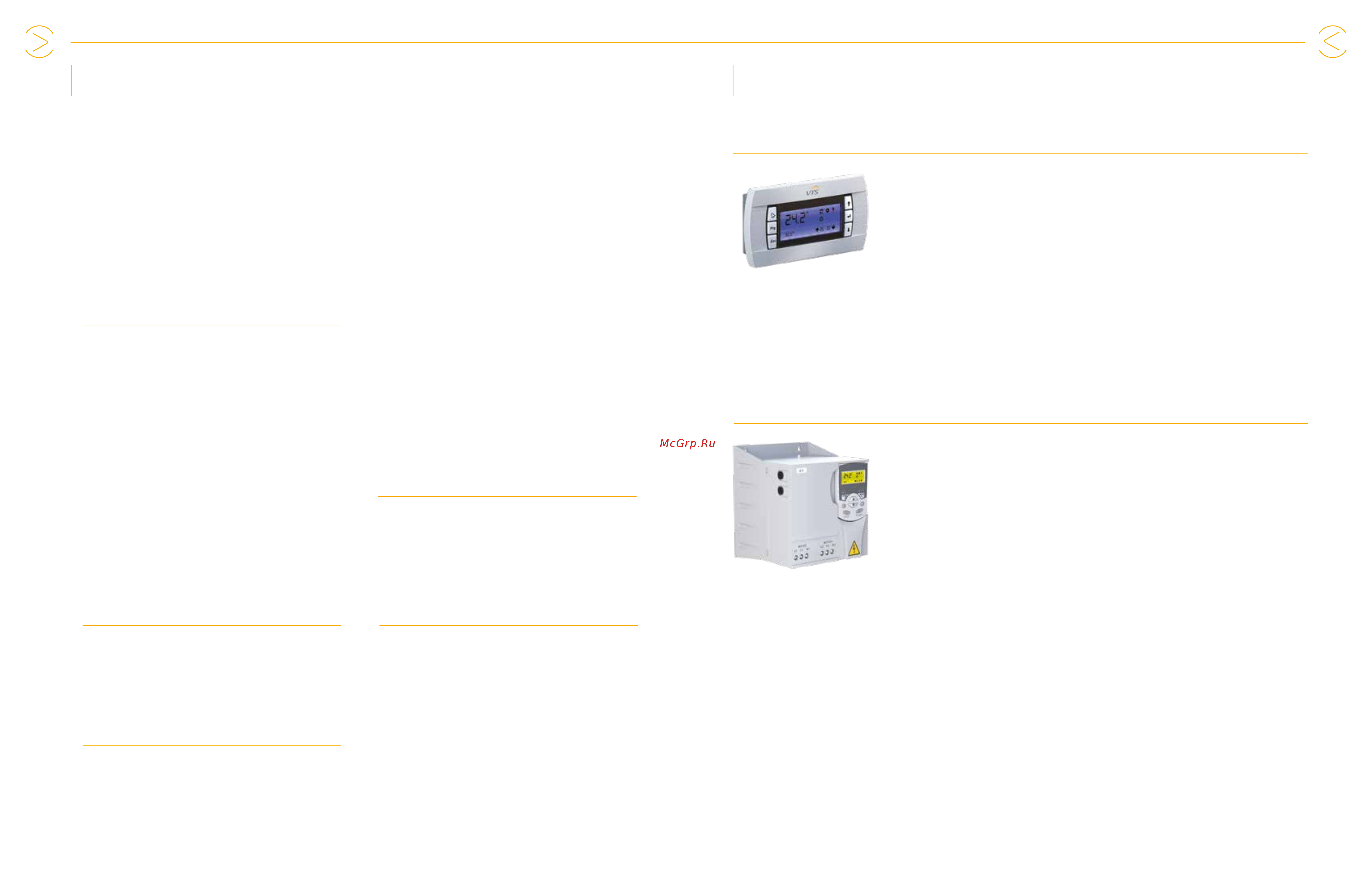

CONTROLS
CO
2
» automatic modulation of the amount
of outside air (keeping the CO
2
concentration below the set value)
» optimization of consumption of heat
and electricity
HUMIDITY CONTROL
» control over air humidifying
- both evaporative and steam
» supports control of the drying process
ELECTRIC HEATER CONTROL
» smooth control system that adjusts
power to the current demand
MIXING BOX CONTROL
» smooth control of the mixing box,
external signal or as in the CO
2
control function,
etc.
» optimization of the ventilation air
to save energy
NEW FEATURES
MEASUREMENT AND CONTROL
OF THE CONSTANT AIR VOLUME
» adjustment of the preset constant air volume
under changing flow resistance - compensation
of changing internal resistance of the AHU (e.g.
with varying degrees of air lter dirt, different
setpoint of the mixing
box, etc.)
» adjustment of the fan power to the current needs
of the installation
» readiness of the AHU to work
with the required performance immediately after
installation
CONSTANT PRESSURE CONTROL
WITH VARIABLE AIR VOLUME
» control of constant, preset air pressure
at variable volume (efciency change
is carried out through the air distribution system
– e.g. VAV controllers)
VTS uses control algorithms that have been developed with an emphasis on energy savings,
while at the same time maintaining the required parameters of the air supplied and ensuring
reliability of our units.
For management of our American VENTUS air handling units we recommend our control
application based on PLC controller, supporting all advanced control functions and variable
ways of external communication including integration with Building Management Systems.
Function and Application
» setting and reading of advanced
operating parameters of ventilation
or supply units
» management and cancellation of
units operational errors is done by
full text description
» management of the controller main
calendar
Operation parameters
» power supply: directly from the UPC3
controller
» communication port: serial port,
RS485 standard
» communication cable length: max.
3,600ft
» connection method: 1:1
» protection class: NEMA 2
» ambient temperature: -4 +140°F /
φ<85%, without condensation
HMI SERVICE
Function and Application
» smooth regulation of the AHU air
flow by proportional change of the
motor-fan unit rotational speed
» maintaining xed AHU operating
parameters at varying air flow
resistance of the ductworks
» protection of maximal value of motor
current
» controlling of fan start-up with
simultaneous protection of maximal
value of start-up current
» integration with external analog and
binary signals
» displaying and modication of fan-
set working parameters
Operation parameters
» supply Frequency: 50/60 Hz (48 Hz
to 62 Hz)
» control
- method: Type of control: V/f
(Scalar); VVW: Voltage vector
control; PWM SVM (Space Vector
Modulation)
- output Frequency: 0 to 500 Hz,
resolution of 0.015 Hz
» analog Inputs:
- 1 insulated input. Levels: (0 to 10) V
or (0 a 20) mA or (4 to 20) mA
- programmable functions
» digital Inputs:
- 4 insulated inputs
- programmable functions:
• Active high (PNP)
• Active low (NPN)
» analog Output
- 1 insulated output. Level (0 to 10) V
or (0 to 20) mA or (4 to 20) mA
- programmable functions
» relay Output
- 1 relay with NA/NF contact.
- maximum voltage: 240 VAC
- maximum current 0.5 A
- programmable functions
» communication Interface RS 485
- insulated RS485
- modbus-RTU protocol with
maximum communication of
38.4kbps
» enclosure
- NEMA1/IP20
VARIABLE FREQUENCY DRIVES
MAIN ELEMENTS
Connection and controls Connection and controls
6564
