WING PRO – Industrial air curtain
11

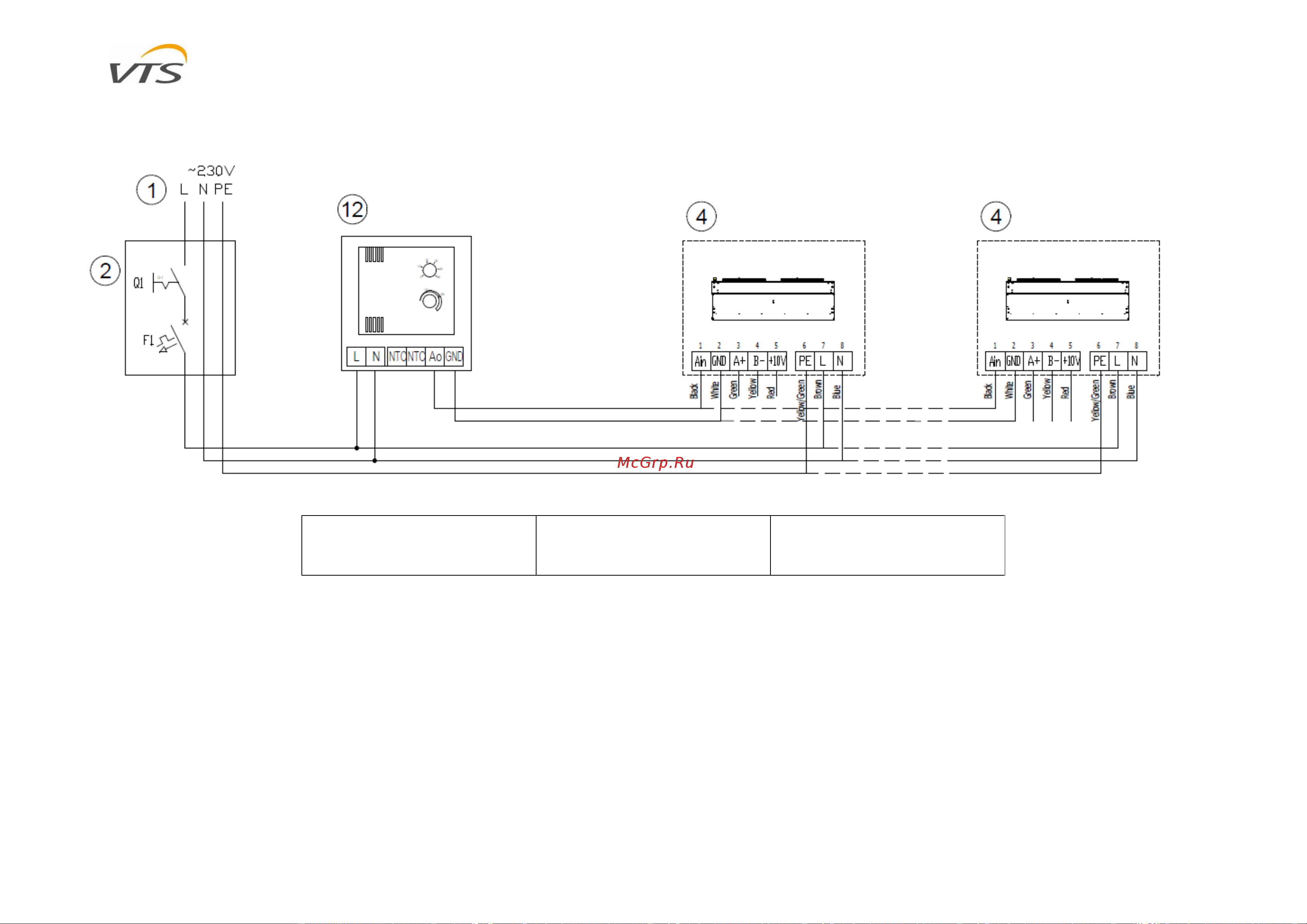

4.2.1. Schemat elektryczny podłączenia kurtyn WING PRO EC/ Electric diagram for WING PRO EC air curtains / Электрическая схема для воздушных завес WING PRO EC
PL:
1. zasilanie 230V – 50Hz *
2. wyłącznik główny, bezpieczniki *
4. WING PRO EC
12. Potencjometer z termostatem
EN:
1. power supply 230V – 50Hz *
2. main switch, fuses *
4. WING PRO EC
12. Potentiometer with thermostat
RU:
1. питание: 230 В - 50Гц *
2. главный выключатель, предохранители *
4. WING PRO EC
12. Потенциометр с термостатом
*UWAGA! W skład urządzenia nie wchodzą: wyłącznik główny, bezpieczniki oraz kabel zasilający
* IMPORTANT!! The device does not include: the main switch, fuses and feeder cable
* ВНИМАНИЕ! Комплект поставки не включает в себя: главный выключатель, предохранители и питающий кабель.
**UWAGA! Nie należy podłączać zaworu z siłownikiem (5) wraz z czujnikiem drzwiowy (6). Należy wybrać jeden z tych elementów
** IMPORTANT!! Do not connect the valve with actuator (5) together with the door sensor (6). Choose one of these elements
** ВНИМАНИЕ! Не подключайте одновременно клапан с сервоприводом (5) вместе с датчиком двери (6). Выберите один из этих элементов
