Apach ST SA24 [13/44] Divisions knife group cod tg000026
![Apach ST SA24 [13/44] Divisions knife group cod tg000026](/views2/1897382/page13/bgd.png)
13

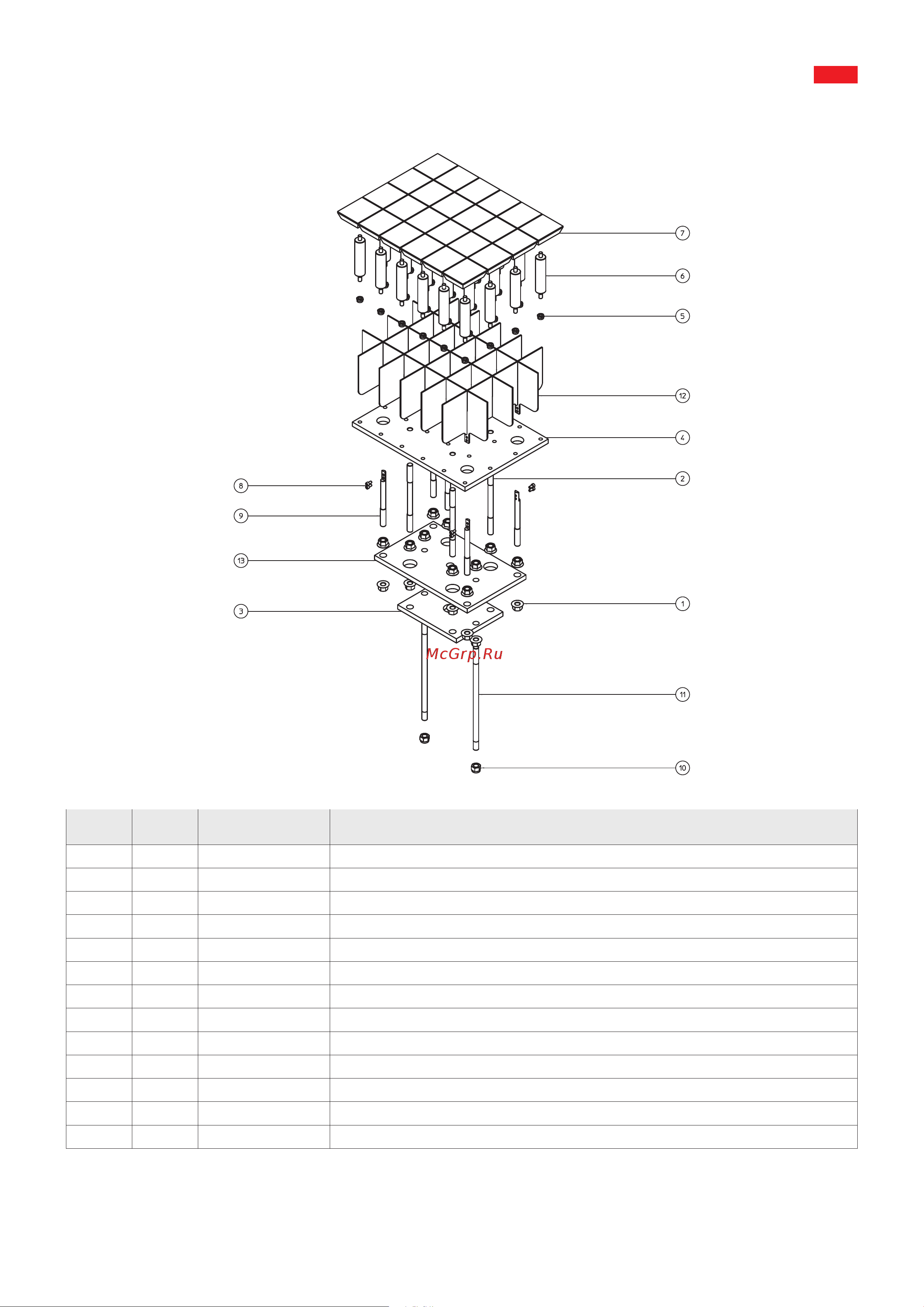

POSITION QUANTITY CODE DESCRIPTION
1 24 30191601 NUT M16 ZINC.
2 4 65810011 PRESS SUPPORT PLATE GUIDE RODS
3 1 49420133 PRESS SUPPORT GUIDE ROD PLATE
4 1 49420134 PRESS SUPPORT PLATE
5 24 30091001 NUT SELFLOKING M10 ZINC.
6 24 62000005 PRESS PLATE SUPPORT
7 24 52600036 PRESS PLATES
8 8 69280612 SCREW M6X12 INOX
9 4 65810010 CUTTING KNIFE SUPPORT SHAFTS
10 2 30081601 SELFLOCKING NUT M16 ZINC.
11 2 65810012 FIXED LIMIT ROD
12 1 60040149 KNIFE
13 1 49420135 KNIFE SUPPORT PLATE
24 DIVISIONS KNIFE GROUP COD. TG000026
