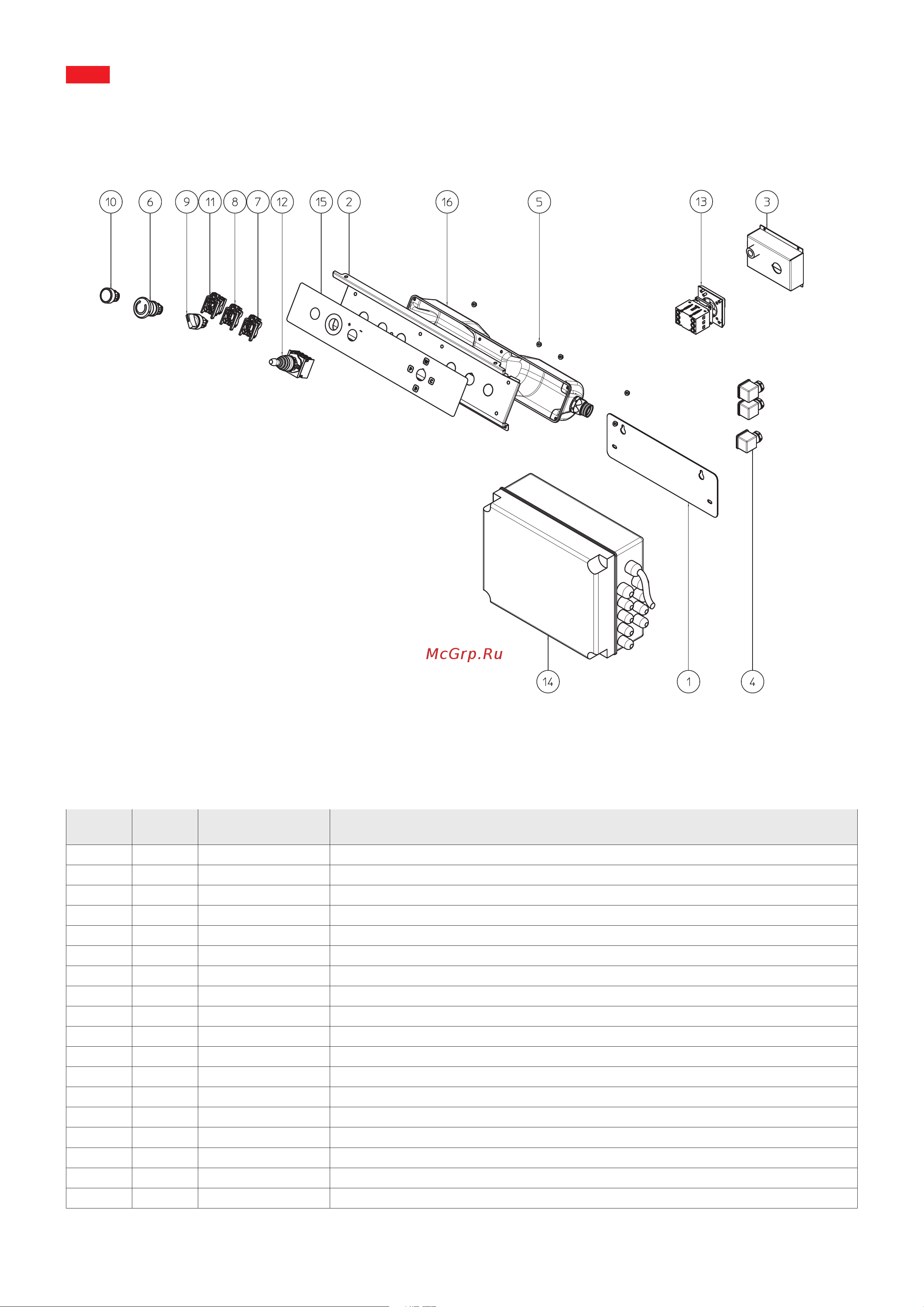

ELECTRICAL GROUP
POSITION QUANTITY CODE DESCRIPTION
1 1 20100417 FIXING PLATE
2 1 20120298 CONTROL PANEL PLATE
3 1 20120324 POWER SUPPLY COVER
4 3 25300001 CONNECTOR VDR-220V CNT532 PG09 NE
5 6 30190401 NUT M4 ZINC.
6 1 53800001 EMERGENCY STOP BUTTON
7 1 53800009 SELECTOR CONTACTS
8 1 53800014 EMERGENCY STOP BUTTON SUPPORT
9 1 53800015 SWITCH
10 1 53800022 WHITE LIGHT
11 1 53800023 LID LIGHT SUPPORT
12 1 53800032 4 POSITIONS JOYSTICK
13 1 53800033 MAIN SWITCH
14 1 53800051 PLASTIC ELECTRICAL BOX (STANDARD)
14 1 53800045 PAINTED STEEL ELECTRICAL BOX (UL)
15 1 60850003 SERIGRAPHY
15 1 60850001 SERIGRAPHY DOUBLE CUT
16 1 65610001 CONTROL PANEL REAR COVER
