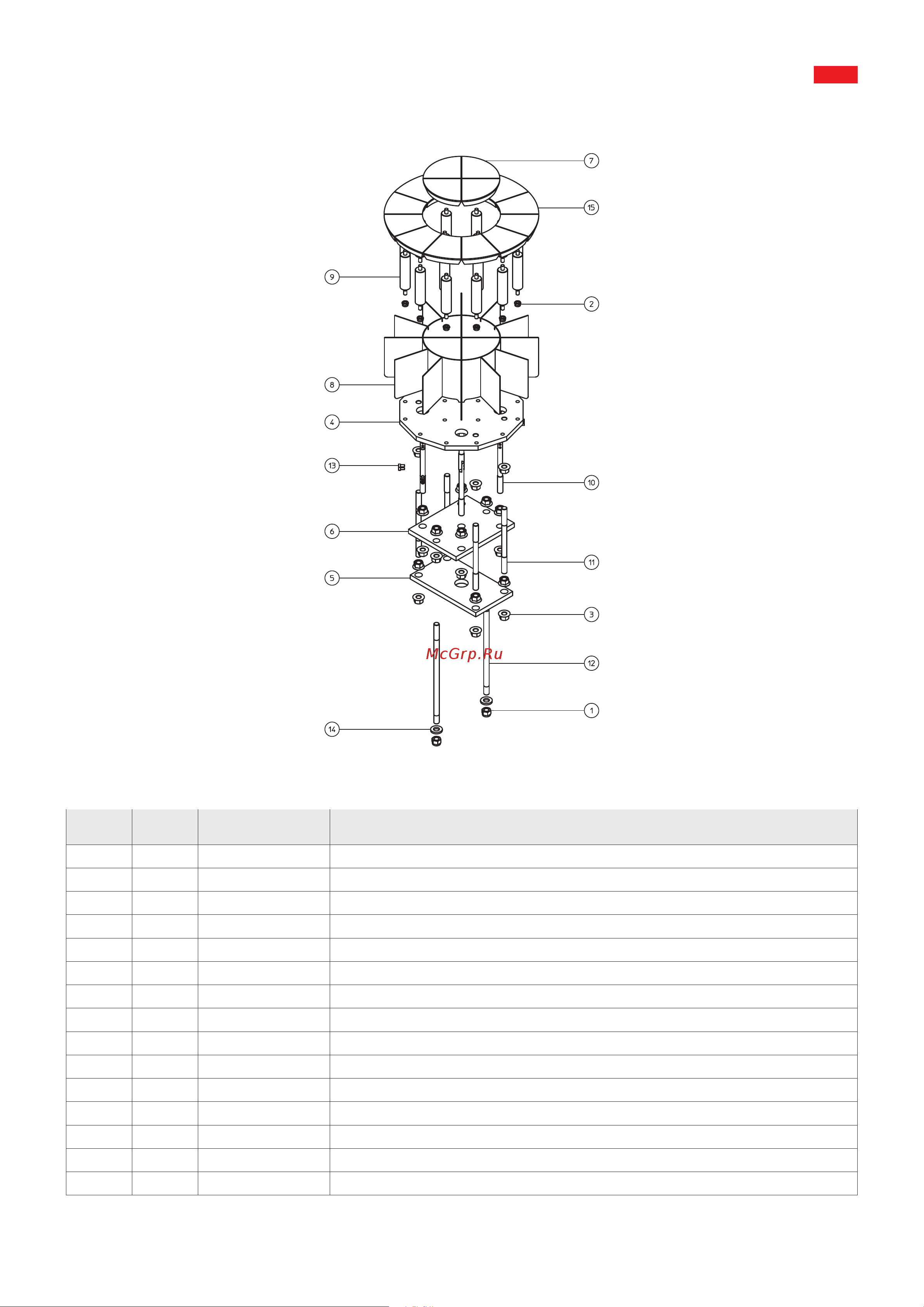

16 DIVISIONS KNIFE GROUP COD. TG000026
POSITION QUANTITY CODE DESCRIPTION
1 2 30081601 NUT M10 ZINC.
2 16 30091001 NUT M16 ZINC.
3 24 30191601 PRESS SUPPORT PLATE
4 1 49420156 PRESS SUPPORT GUIDE ROD PLATE
5 1 49420157 KNIFE SUPPORT PLATE
6 1 49420158 INSIDE PRESS PLATES
7 4 52600043 KNIFE
8 1 60040163 PRESS PLATE SUPPORT
9 16 62000005 CUTTING KNIFE SUPPORT SHAFTS
10 4 65810010 PRESS SUPPORT PLATE GUIDE RODS
11 4 65810011 FIXED LIMIT ROD
12 2 65810012 SCREW TCEI M6X12 INOX
13 8 69280612 WASHER D.16X35 SP. 45 ZINC.
14 2 59091635 OUTSIDE PRESS PLATES
15 12 52600044 BALANCE CHAIN
