Apach ST SA24 [29/44] 57 divisions knife group cod tg000029
![Apach ST SA24 [29/44] 57 divisions knife group cod tg000029](/views2/1897382/page29/bg1d.png)
29

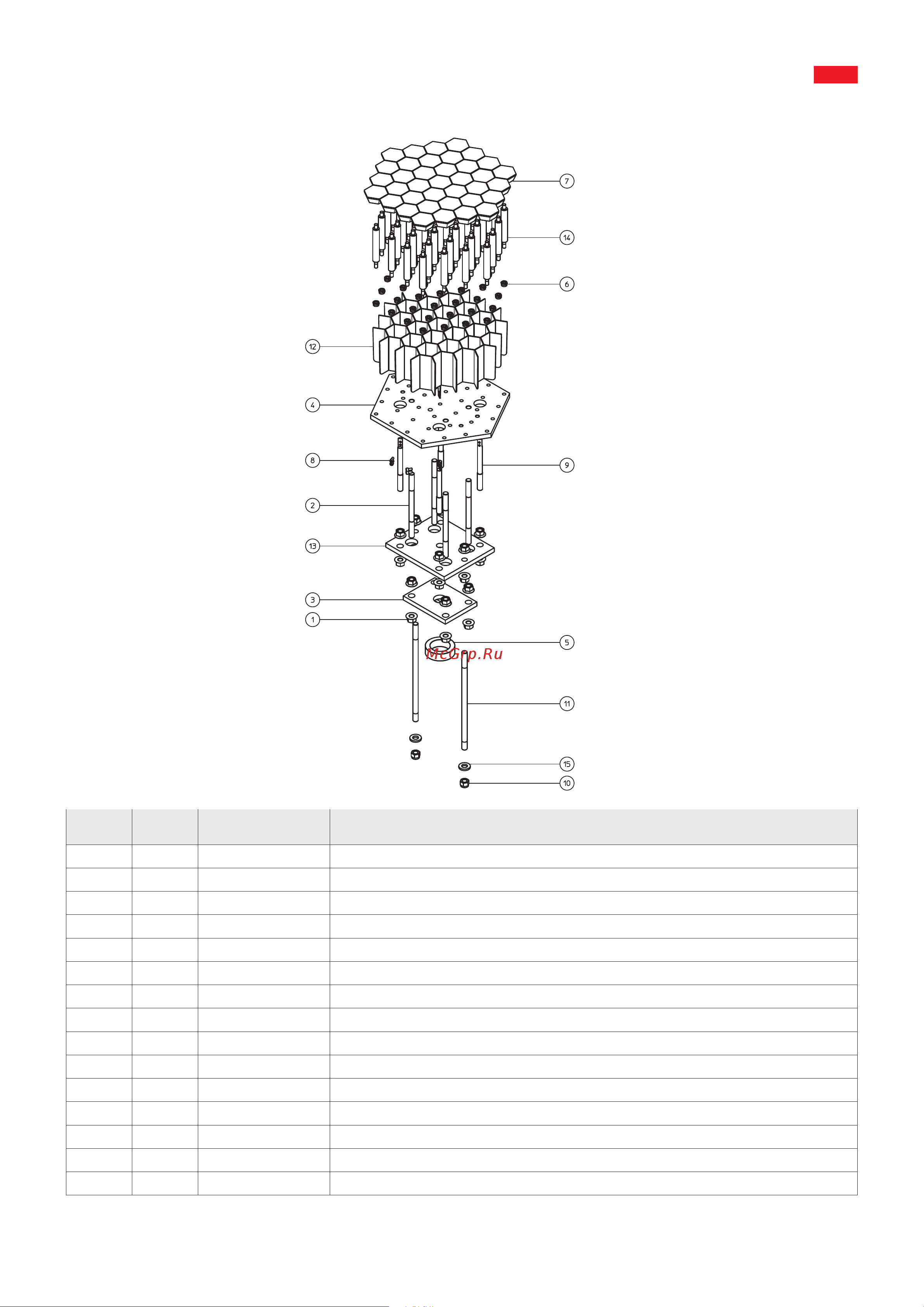

POSITION QUANTITY CODE DESCRIPTION
1 2 30081601 SELFLOCKING NUT M16 ZINC.
2 37 30091001 NUT M10 ZINC.
3 24 30191601 NUT M16 ZINC.
4 1 30860007 CYLINDER RACING SPACER
5 1 49420143 PRESS SUPPORT PLATE
6 1 49420144 KNIFE SUPPORT PLATE
7 1 49420145 PRESS SUPPORT GUIDE ROD PLATE
8 37 52600037 PRESS PLATES AC57
9 1 60040155 KNIFE
10 37 62000006 PRESS PLATE SUPPORT
11 4 65810010 CUTTING KNIFE SUPPORT SHAFTS
12 2 65810012 FIXED LIMIT ROD
13 8 69280612 SCREW TCEI M6X12 INOX
14 4 65810011 PRESS SUPPORT PLATE GUIDE RODS
15 2 59091635 WASHER D.16X35 SP. 45 ZINC.
37/57 DIVISIONS KNIFE GROUP COD. TG000029
