15

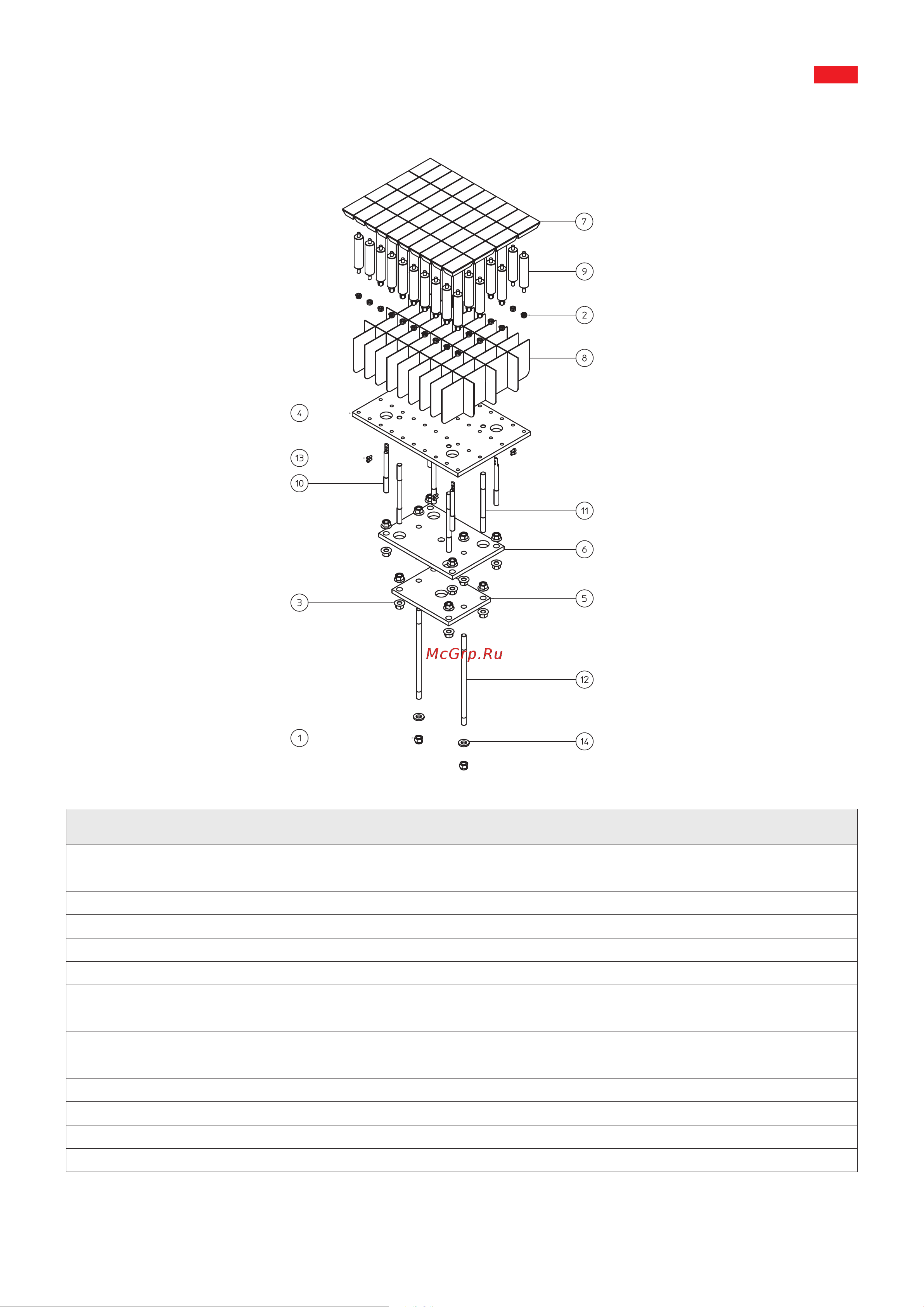

POSITION QUANTITY CODE DESCRIPTION
1 2 30081601 SELFLOCKING NUT M16 ZINC.
2 40 30091001 NUT SELFLOKING M10 ZINC.
3 24 30191601 NUT M16 ZINC.
4 1 49420153 PRESS SUPPORT PLATE
5 1 49420154 PRESS SUPPORT GUIDE ROD PLATE
6 1 49420155 KNIFE SUPPORT PLATE
7 40 52600041 PRESS PLATES
8 1 60040161 KNIFE
9 40 62000005 PRESS PLATE SUPPORT
10 4 65810010 CUTTING KNIFE SUPPORT SHAFTS
11 4 65810011 PRESS SUPPORT PLATE GUIDE RODS
12 2 65810012 FIXED LIMIT ROD
13 8 69280612 SCREW M6X12 INOX
14 2 59091635 WASHER D.16X35 SP. 5 ZINC.
40 DIVISIONS KNIFE GROUP COD. TG000034
