Apach ST SA24 [20/44] 20 divisions knife group cod tg000022
![Apach ST SA24 [20/44] 20 divisions knife group cod tg000022](/views2/1897382/page20/bg14.png)
20

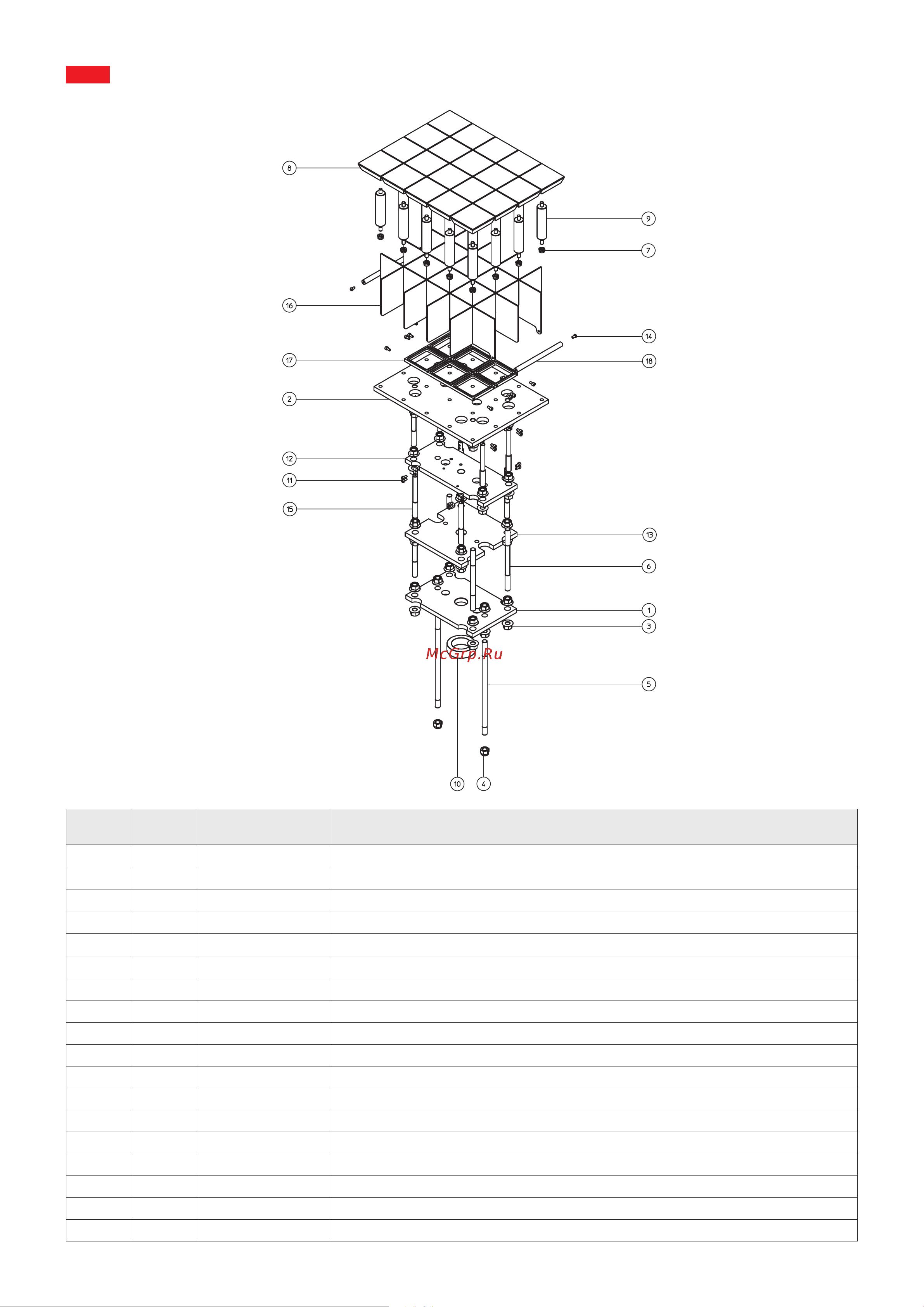

10/20 DIVISIONS KNIFE GROUP COD. TG000022
POSITION QUANTITY CODE DESCRIPTION
1 1 49420122 PRESS SUPPORT GUIDE ROD PLATE
2 1 49420119 PRESS SUPPORT PLATE
3 32 30191601 NUT M16 ZINC.
4 2 30081601 SELFLOCKING NUT M16 ZINC.
5 2 65810012 FIXED LIMIT ROD
6 4 65810011 PRESS SUPPORT PLATE GUIDE RODS
7 20 30091001 SELFLOCKING NUT M10 ZINC.
8 20 52600030 PRESS PLATES
9 20 62000005 PRESS PLATE SUPPORT
10 1 30860007 SPACER FOR CYLINDER
11 20 69280612 SCREW TCEI M6X12 INOX
12 1 49420120 KNIFE SUPPORT PLATE
13 1 49420121 KNIFE SUPPORT PLATE
14 4 69290612 SCREW TCBEI M6X12 INOX
15 8 65810010 CUTTING KNIFE SUPPORT SHAFTS
16 1 60040143 KNIFE
17 1 49420130 KNIFE SUPPORT PLATE
18 2 14800014 ROD
