Apach ST SA24 [19/44] Double cut hooking group cod az000007
![Apach ST SA24 [19/44] Double cut hooking group cod az000007](/views2/1897382/page19/bg13.png)
19
POSITION QUANTITY CODE DESCRIPTION
1 2 14800006 ROD RELEASE
2 1 17910005 RELEASE LEVER LATCH INSERT
3 1 18061810 LATCH INSERT KU 18 10
4 1 20100078 SPACER FOR CYLINDER
5 1 23700013 HYDRAULIC CYLINDER C=20
6 2 30091201 NUT SELFLOKING M12 ZINC.
7 1 30130601 NUT M6 ZINC.
8 1 42310026 CUTTING RELEASE LEVER
9 1 44830032 TRACTION SPRING T32010
10 1 59091230 WASHER D.12X30 SP. 4 ZINC.
11 2 69160610 SCREW TCEI M6X10 ZINC.
12 1 69160630 SCREW TCEI M6X30 ZINC.
13 2 69160835 SCREW TCEI M8X35 ZINC.
14 1 69200616 SCREW TE M6X16 ZINC.
15 1 69201250 SCREW TE M12X50 ZINC.
16 2 18062515 LATCH INSERT KF 25 15

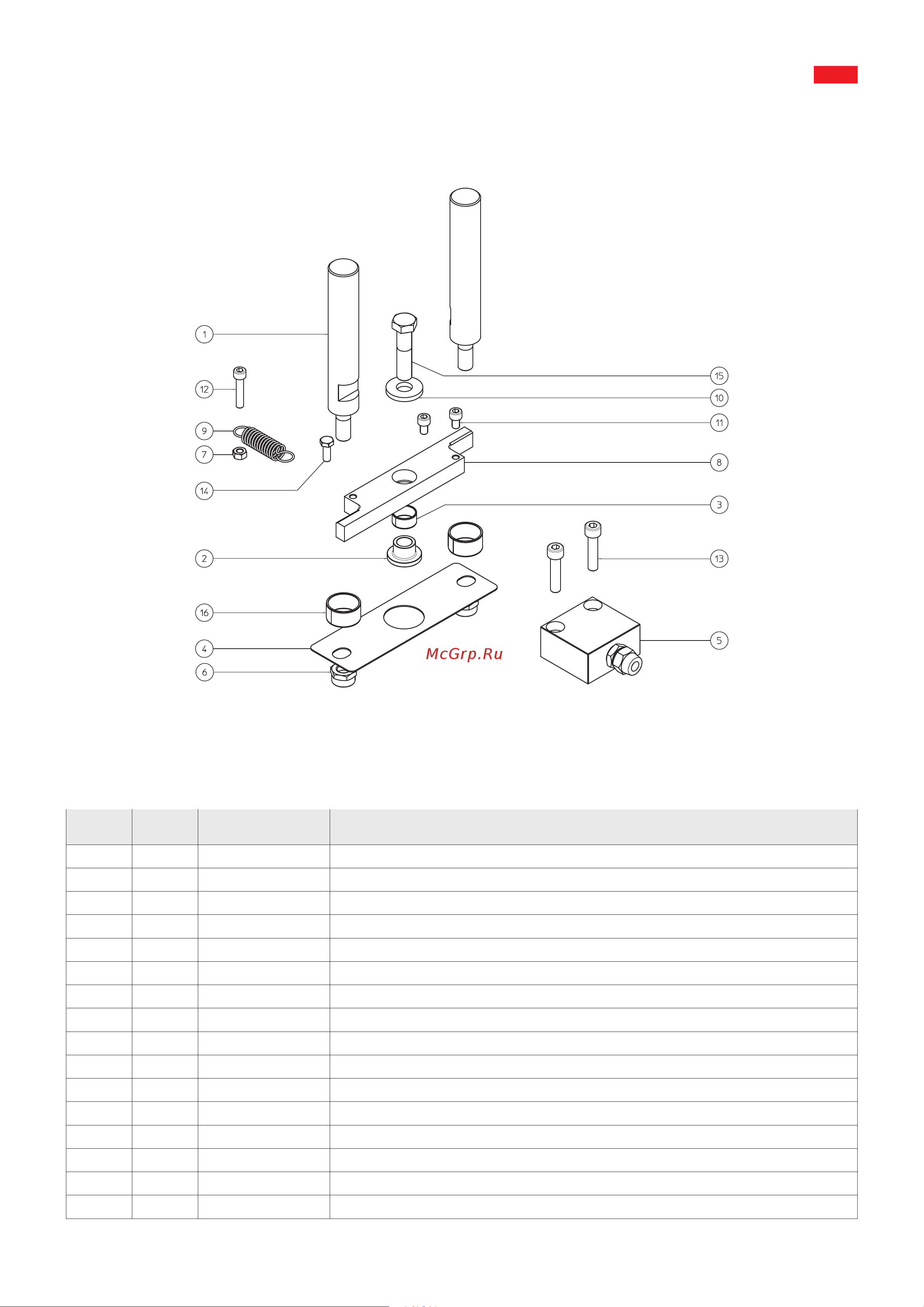

DOUBLE CUT HOOKING GROUP COD. AZ000007
