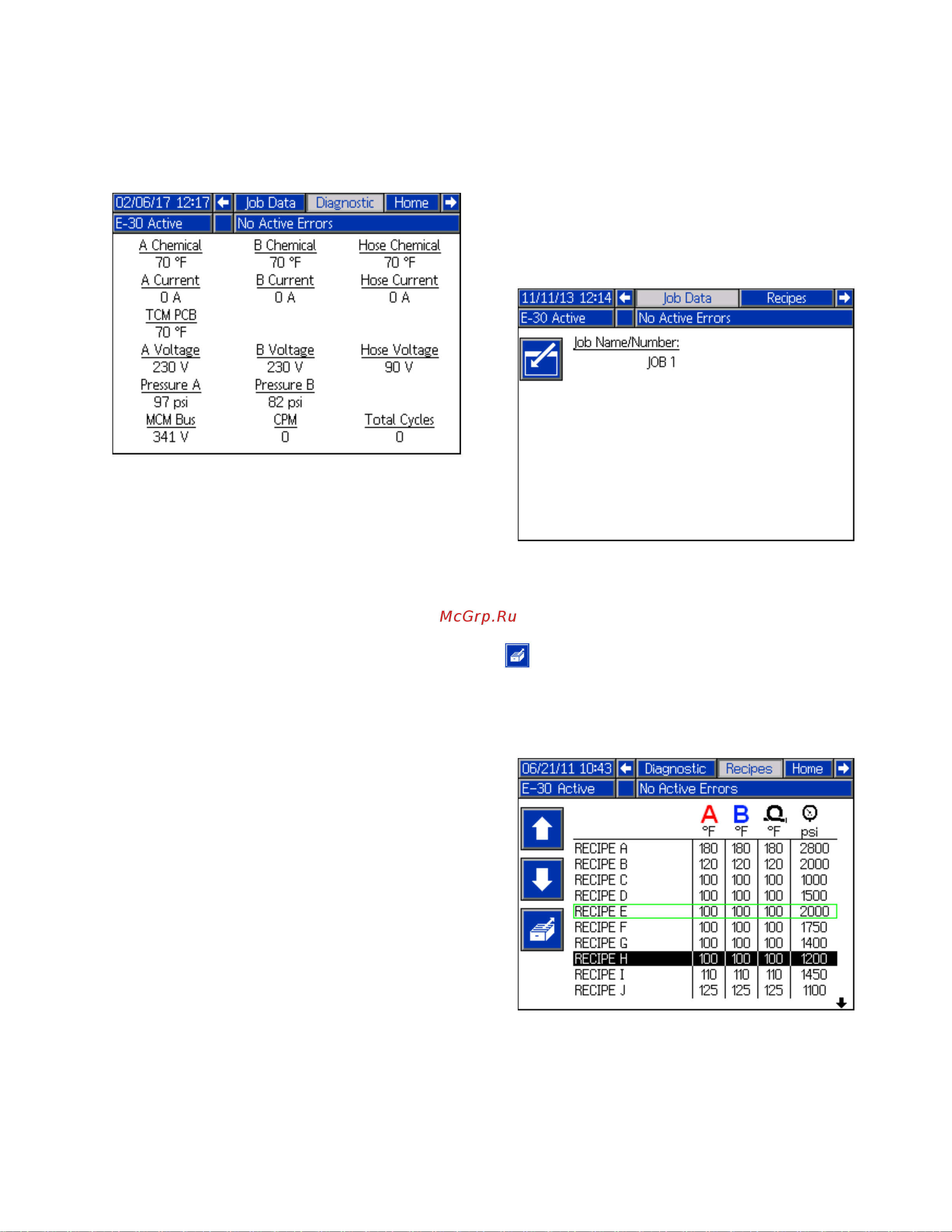

AdvancedDisplayModule(ADM)Operation
Diagnostic Diagnostic
Diagnostic
Screen Screen
Screen
Usethisscreentoviewinformationforallsystem
components.
Thefollowinginformationisdisplayed:
Temperature Temperature
Temperature
•AChemical
•BChemical
•HoseChemical
•TCMPCB—temperaturecontrolmodule
temperature
Amps Amps
Amps
•ACurrentH(0–25Afor10kWheater,0–38Afor
15kWheater)
•BCurrentH(0–25Afor10kWheater,0–38Afor
15kWheater)
•HoseCurrentH(0–45Atypical)
Volts Volts
Volts
•MCMBusH—displaysthevoltagesuppliedtothe
motorcontroller,whichistheDCvoltagethathas
beenconvertedfromtheACvoltagesuppliedto
thesystem(275–400Vtypicalfullrange)
•AVoltage–VoltagesuppliedtoAheater(195–240
Vtypical)
•BVoltage–VoltagesuppliedtoBheater(195–240
Vtypical)
•HoseVoltage(90V)
Pressure Pressure
Pressure
•PressureA—chemical
•PressureB—chemical
Cycles Cycles
Cycles
•CPM—cyclesperminute
•TotalCycles—lifetimecycles
NOTE: NOTE:
NOTE:
HMaximumvaluesbasedonmaximuminput
voltage.Valueswilllowerwithlowerinputvoltage.
Job Job
Job
Data Data
Data
Screen Screen
Screen
Usethisscreentoenterajobnameornumber.
Recipes Recipes
Recipes
Screen Screen
Screen
Usethisscreentoselectanenabledrecipe.Usethe
upanddownarrowstohighlightarecipeandpress
toload.Thecurrentlyloadedrecipeisoutlined
byagreenbox.
NOTE: NOTE:
NOTE:
Thisscreenwillnotdisplayiftherearenot
anyenabledrecipes.Toenableordisablerecipes,
seeRecipesSetupScreen,page36.
333023T
41
