Hitachi CJ18DSL [13/100] English

English

PRIOR TO OPERATION

1. Preparing and checking the work environment

Make sure that the work site meets all the conditions

laid forth in the precautions.

2. Checking the battery

Make sure that the battery is installed firmly. If it is at

all loose it could come off and cause an accident.

3. Dust produced in operation

The dust produced in normal operation may affect

the operator’s health. Either of following way is

recommended.

a) Wear a dust mask

b) Use external dust collection equipment

When using the external dust collection equipment,

connect the adapter with the hose from external dust

collection equipment. (Fig. 23)

4. Changing blades

(1) Open the lever up to the stop. (Fig. 5-arrow I)

(2) Remove fitted blade.

(3) Insert new blade up to the stop in the blade holder.

(Fig. 5-arrow II)

(4) Close the lever. (Fig. 5-arrow III)

CAUTION

䡬 Be sure to switch power OFF and disconnect the

battery from the body when changing blades.

䡬 Do not open the lever when plunger is moving.

NOTE:

䡬 Confirm the protrusions of blade inserted to the blade

holder surely. (Fig. 6)

䡬 Confirm the blade located between the groove of

roller. (Fig. 7)

5. Switch Operation (Fig. 8, 9)

䡬 The saw is provided with a lock off button on the top

of the handle to prevent the motor from being

switched on inadvertently. Pushing in the lock off

button to the locked position prevents the switch from

being pulled. Pushing in the lock off button to the

free position allows the switch to be pulled and the

motor to operate.

䡬 The number of strokes of the blade can be adjusted

to within the range of 0 to 2400 strokes/minute

depending on the amount the switch is pulled. In

addition, releasing the switch activates a break that

stops the blade immediately.

䡬 When the switch is turned on, an LED lamp lights to

illuminate the end of the blade. This lamp goes out

when the switch is released.

CAUTION

䡬 Always make sure to push in the lock off button to

the locked position when not using the saw.

䡬 Do not look directly into the light from the LED lamp.

Continuous and direct exposure to the light from the

LED lamp can injure your eyes.

6. Adjusting the orbital operation

(1) This Jig Saw employs orbital operation which moves

the blade back and forth, as well as up and down. Set

the change knob shown in Fig. 10 to “0” to eliminate

the orbital operation (the blade moves only up and

down). The orbital operation can be selected in 4 steps

from “0” to “III”.

(2)

For the hard material, such as a steel plate, etc.,

decrease the orbital operation. For the soft material,

such as lumber, plastic, etc., increase the orbital

operation to increase work efficiency. To cut the

material accurately, decrease the orbital operation.

7. Cutting stainless steel plates

This Jig Saw can cut stainless steel plates by using

No. 97 blade. Carefully read “Concerning cutting of

stainless steel plates” for proper operation.

8. Splinter guard

Using the splinter guard when cutting wood materials

will reduce splintering of cut surfaces.

Insert the splinter guard in the space on the base, and

push it completely. (See Fig. 11)

9. Chip cover

Chip cover prevents chips from flying off and

improves the efficiency of dust collector.

Insert the chip cover between the base and lever, and

push with a slight pressure until it catches in place.

(Fig. 12)

When removing chip cover, hold both sides of knob

and slightly open until it can be removed from the Jig

Saw. (Fig. 13)

NOTE:

There is a possibility that chip cover is frosted when

cutting the metal.

10. Sub base

Using the sub base (made from steel) will reduce

abrasion of aluminium base especially in cutting

metals.

Using the sub base (made from resin) will reduce

scratching of cut surface. Attach the sub base to the

bottom surface of base by attached 4 screws.

11. About Remaining Battery Indicator

When pressing the remaining battery indicator switch,

the remaining battery indicator lamp lights and the

battery remaining power can be checked. (Fig. 14)

When releasing your finger from the remaining

battery indicator switch, the remaining battery

indicator lamp goes off. The table 4 shows the state

of remaining battery indicator lamp and the battery

remaining power.

As the remaining battery indicator shows somewhat

differently depending on ambient temperature and

battery characteristics, read it as a reference.

NOTE:

䡬 Do not give a strong shock to the switch panel or break

it.It may lead to a trouble.

䡬 To save the battery power consumption, the

remaining battery indicator lamp lights while pressing

the remaining battery indicator switch.

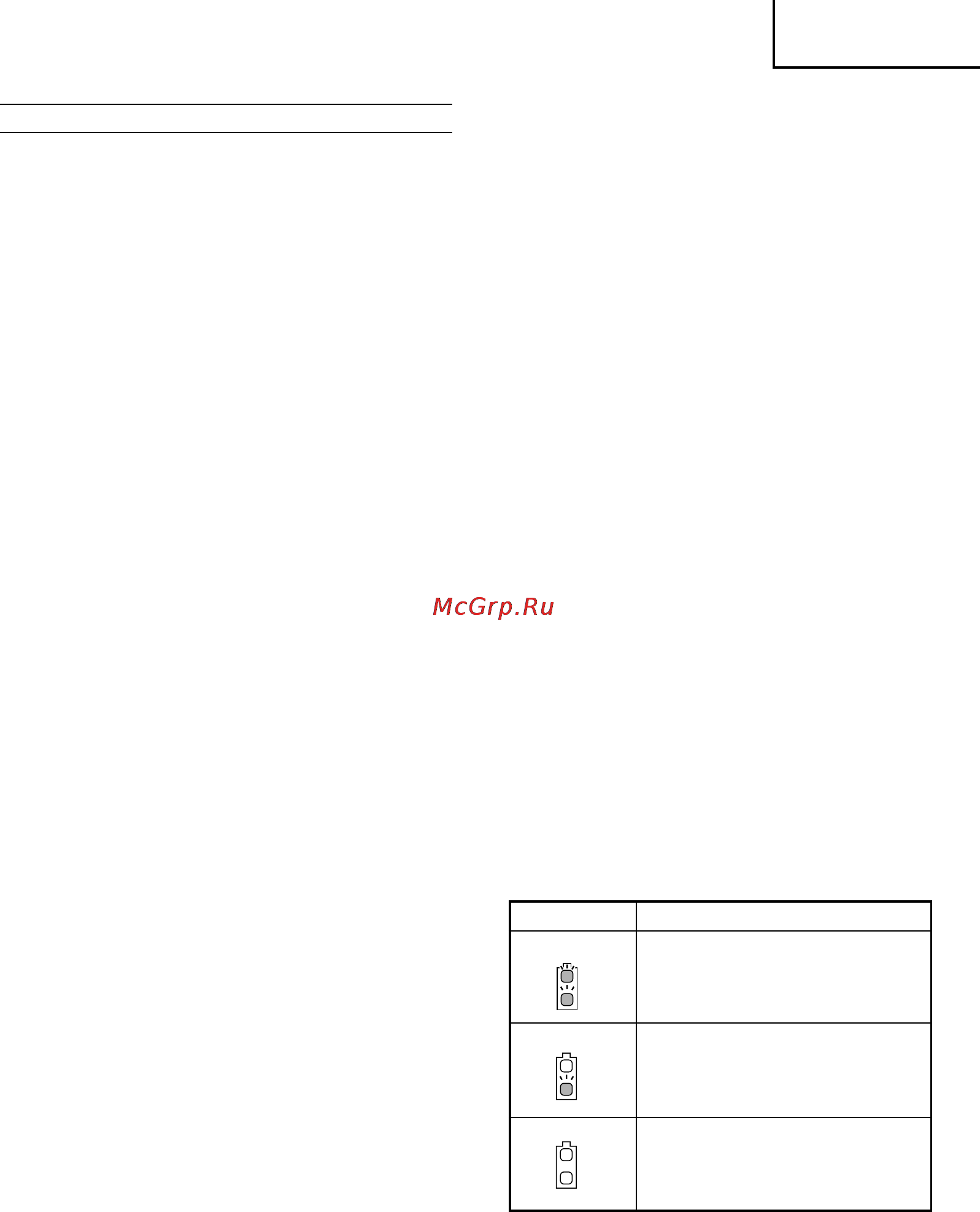

State of lamp Battery Remaining Power

The battery remaining power

is enough.

The battery remaining power

is a half.

The battery remaining power

is nearly empty.

Re-charge the battery soonest

possible.

Table 4

01Eng_CJ14DSL_EE 3/19/08, 13:4512
