English
40

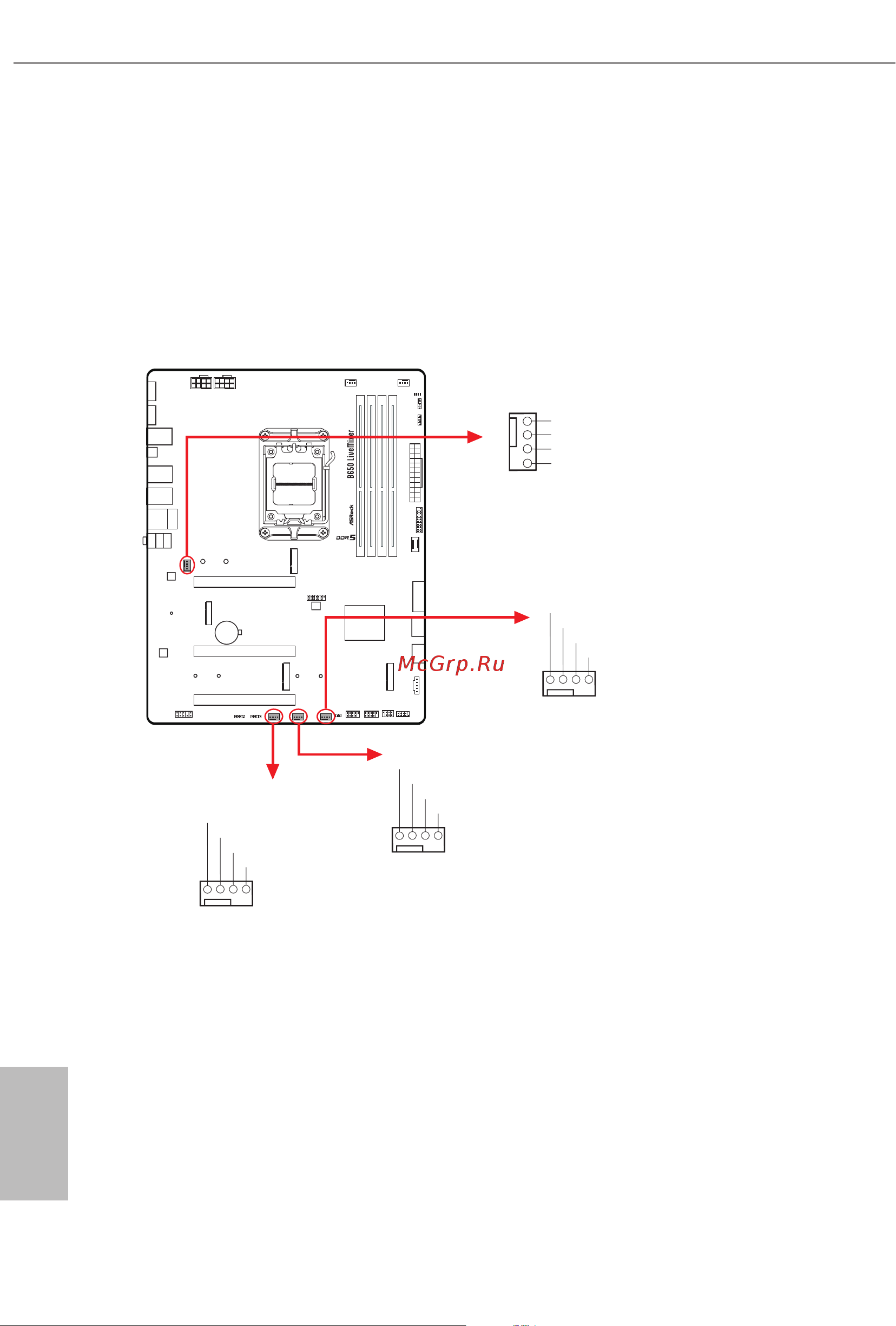

Chassis/Water Pump Fan Connectors
(4-pin CHA_FAN1/WP) (see p.6, No. 29)
(4-pin CHA_FAN2/WP) (see p.6, No. 25)
(4-pin CHA_FAN3/WP) (see p.6, No. 24)
(4-pin CHA_FAN4/WP) (see p.6, No. 23)
is motherboard provides four 4-Pin water cooling
chassis
fan connectors. If you
plan to connect a 3-Pin
chassis
water cooler fan, please connect it to Pin 1-3.
CHA_FAN2/WP
GN D
CH A_FAN_SPEED
FA N_SPEED_CONTROL
F A N_VOLTAGE
1 2 3 4
CHA_FAN3/WP
GN D
CH A_FAN_SPEED
FA N_SPEED_CONTROL
F A N_VOLTAGE
1 2 3 4
CHA_FAN1/WP
GN D
CH A_FAN_SPEED
FA N_SPEED_CONTROL
F A N_VOLTAGE
1 2 3 4
CHA_FAN4/WP
GND
FAN_VOLTAGE
CHA_FAN _ SPE ED
FAN_ S PEE D_CONTROL
1
2
3
4
