English

B650 LiveMixer

2.16 M.2 SSD Module Installation Guide (M2_2 and M2_3)

e M.2 is a small size and versatile card edge connector that aims to replace mPCIe and

mSATA. e Hyper M.2 Sockets (M2_2 and M2_3, Key M) support type 2260/2280 PCIe

Gen4x4 (64 Gb/s) mode.

* If M2_3 is occupied, PCIE3 will be disabled.

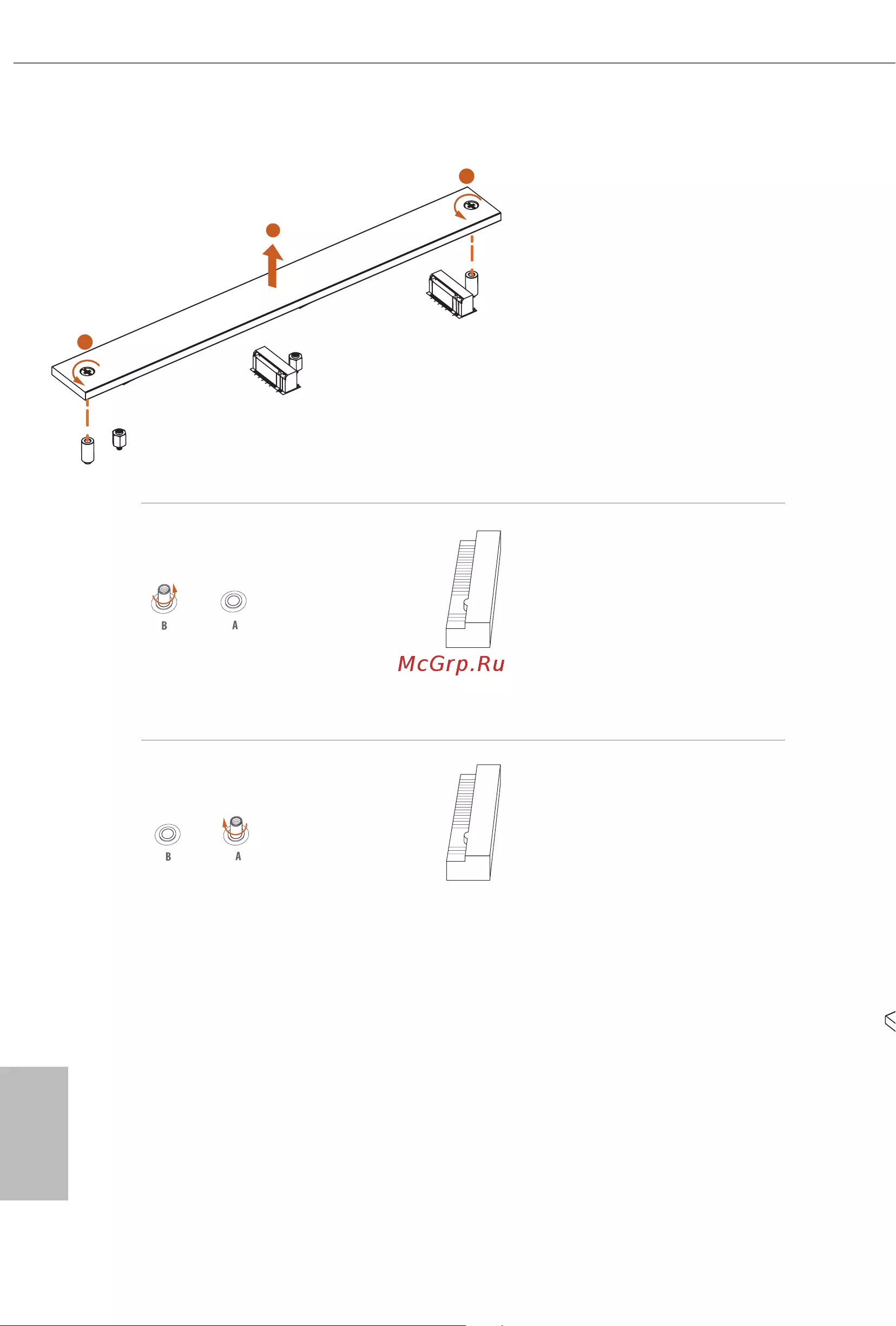

Installing the M.2 SSD Module

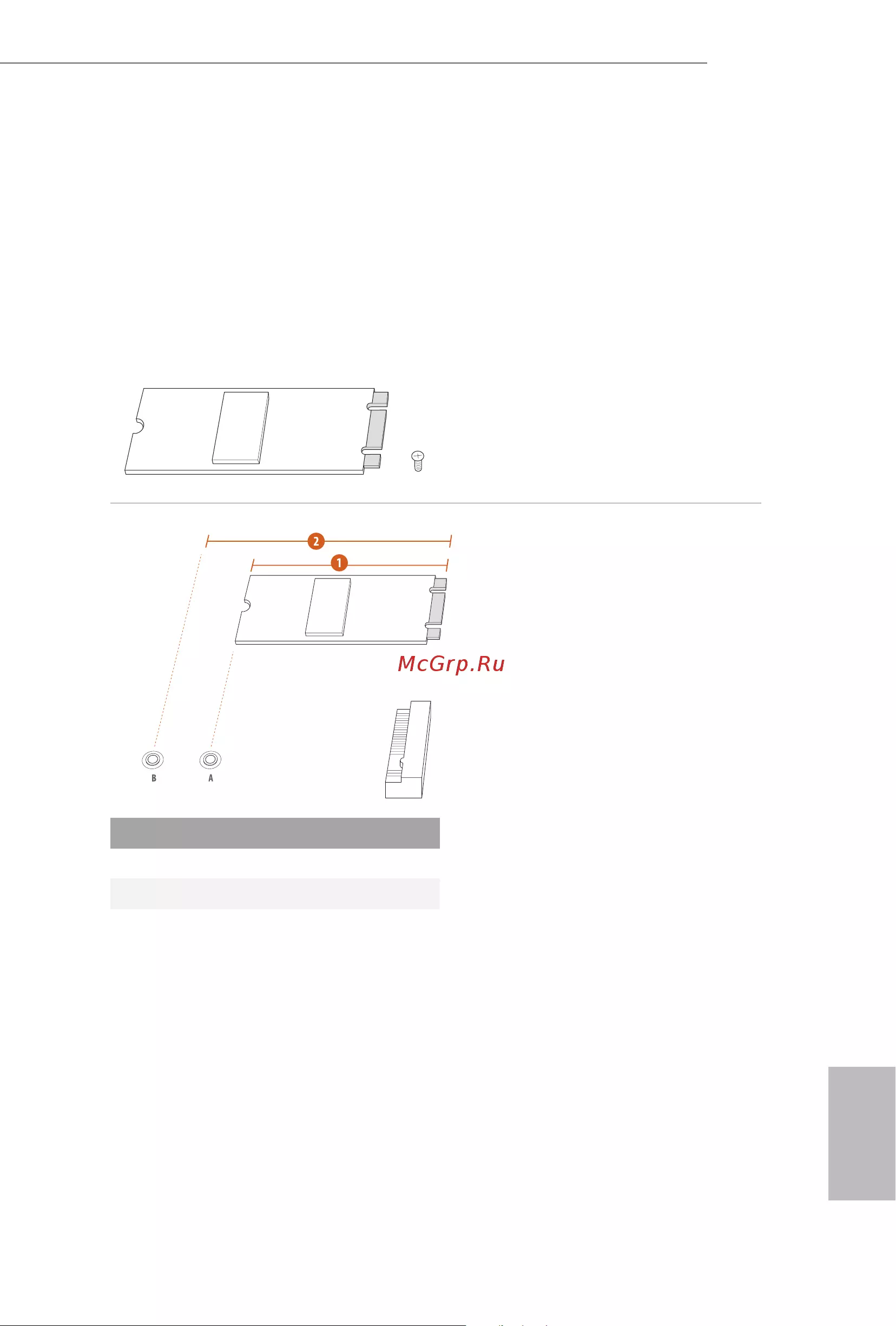

Step 1

Prepare a M.2 SSD module and the

screw.

Step 2

Depending on the PCB type and

length of your M.2 SSD module, nd

the corresponding nut location to be

used.

No. 1 2

Nut Location A B

PCB Length 6cm 8cm

Module Type Type 2260 Type 2280
