English

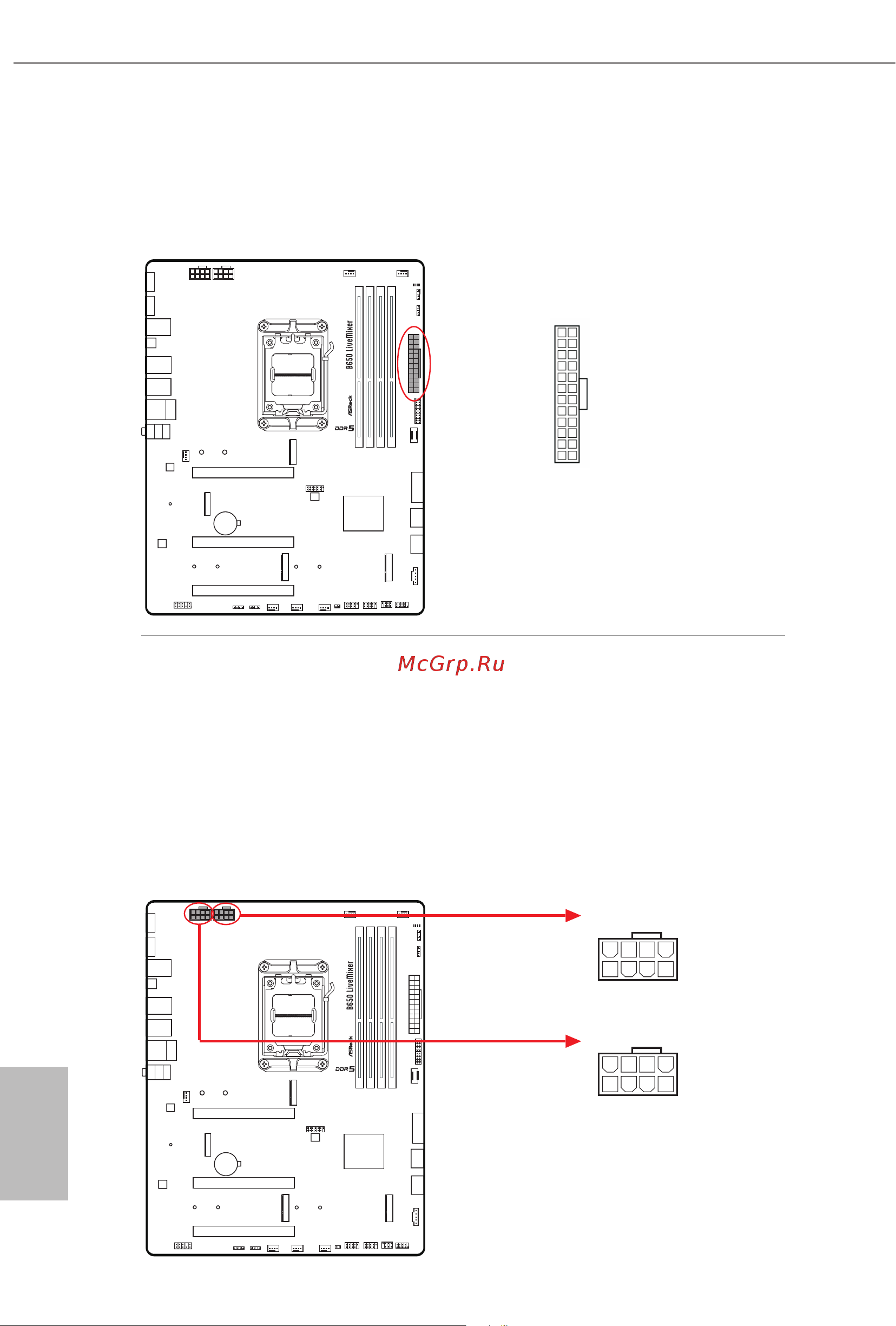

ATX Power Connector

(24-pin ATXPWR1) (see p.6, No. 10)

is motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX

power supply, please plug it along Pin 1 and Pin 13.

ATX 12V Power Connectors

(8-pin ATX12V1) (see p.6, No. 1)

(8-pin ATX12V2) (see p.6, No. 2)

is motherboard provides two 8-pin ATX 12V power connectors. To use a 4-pin

ATX power supply, please plug it along Pin 1 and Pin 5.

*Connecting an ATX 12V 8-pin cable to ATX12V2 is optional.

*Warning: Please make sure that the power cable connected is for the CPU and

not the graphics card. Do not plug the PCIe power cable to this

connector.

ATXPWR1

ATX12V2

8 5

ATX12V1

8 5
