ENGLISH

Before connecting the hood to the electrical mains power supply,

check that:

• voltage supply corresponds with what is reported on the data plate

located inside the hood;

• the electrical system is compliant and can withstand the load (see

the technical specications located inside the hood);

• the power supply plug and cable do not come into contact with

temperatures exceeding 70 °C;

• the power supply system is eectively and properly connected to

earth in compliance with regulations in force;

•

the socket used to connect the hood is within reach.

In case of:

• devices tted with cables without a plug: the type of plug to use is

a ''standardised'' one. The wires must be connected as follows: yel-

low-green for earthing, blue for neutral and brown for the phase. The

plug must be connected to an adequate safety socket.

•

xed equipment not provided with a power supply cable and plug,

or any other device that ensures disconnection from the electrical

mains, with an opening gap of the contacts that enables total discon-

nection in overvoltage category III conditions.

Said disconnection devices must be provided in the mains power

supply in compliance with installation regulations.

The yellow/green earth cable must not be cut o by the switch.

The Manufacturer declines all responsibility for failure to comply with

the safety regulations.

FUMES DISCHARGE

EXTERNAL EXHAUST HOOD SUCTION

In this version the fumes and vapours are discharged

outside through the exhaust pipe.

To this end, the hood outlet tting must be connected

via a pipe, to an external output.

The outlet pipe must have:

• a diameter not less than that of the hood tting.

• a slight slope downwards (drop) in the horizontal sections to prevent

condensation from owing back into the motor.

• the minimum required number of bends.

• the minimum required length to avoid vibrations and reduce the

suction performance of the hood.

You are required to insulate the pipes if it passes through cold envi-

ronments.

In the presence of motors with 800m

/h or higher, a check valve is

present to prevent external air owing back.

Deviation for Germany:

when the kitchen hood is used at the same time as appliances that are pow-

ered by energy other than electricity, the negative pressure in the room must

not exceed 4 Pa (4 x 10-5 bar).

HOOD WITH INTERNAL RECIRCULATION FILTERING

In this model, the air passes through the charcoal lters

to be puried and recycled in the environment.

Ensure that the active carbon lters are assembled into

the hood, if not, install them as indicated in the assem-

bly instructions.

In this version the check valve must not be assembled: remove

it if it is on the air outlet tting of the motor.

ASSEMBLY INSTRUCTIONS

only intended for qualied personnel

The hood can be installed in various congurations.

The generic assembly steps apply to all installations; for

each case, follow the specic steps provided for the re-

quired installation.

OPERATION

WHEN TO TURN ON THE HOOD?

Switch on the hood at least one minute before starting to cook to direct

fumes and vapours towards the suction surface.

After cooking, leave the hood operating until complete extraction of all

vapours and odours. By means of the Timer function, it is possible to set

auto switch-o function which will allow the hood to turn o automat-

ically after 15 minutes of operation.

WHICH SPEED IS TO BE SELECTED?

speed (1-3): maintains the circulation of clean air with low electricity

consumption.

speed (4-5): normal conditions of use.

speed (6-7): presence of strong odours and vapours.

speed (8-P): rapid disposal of odours and vapours.

WHEN SHOULD THE FILTERS BE WASHED OR REPLACED?

The metal lters must be cleaned every 30 hours of operation.

The active carbon lters must be replaced every 3-4 months, depend-

ing on the use of the hood.

For further details see the “MAINTENANCE” chap.

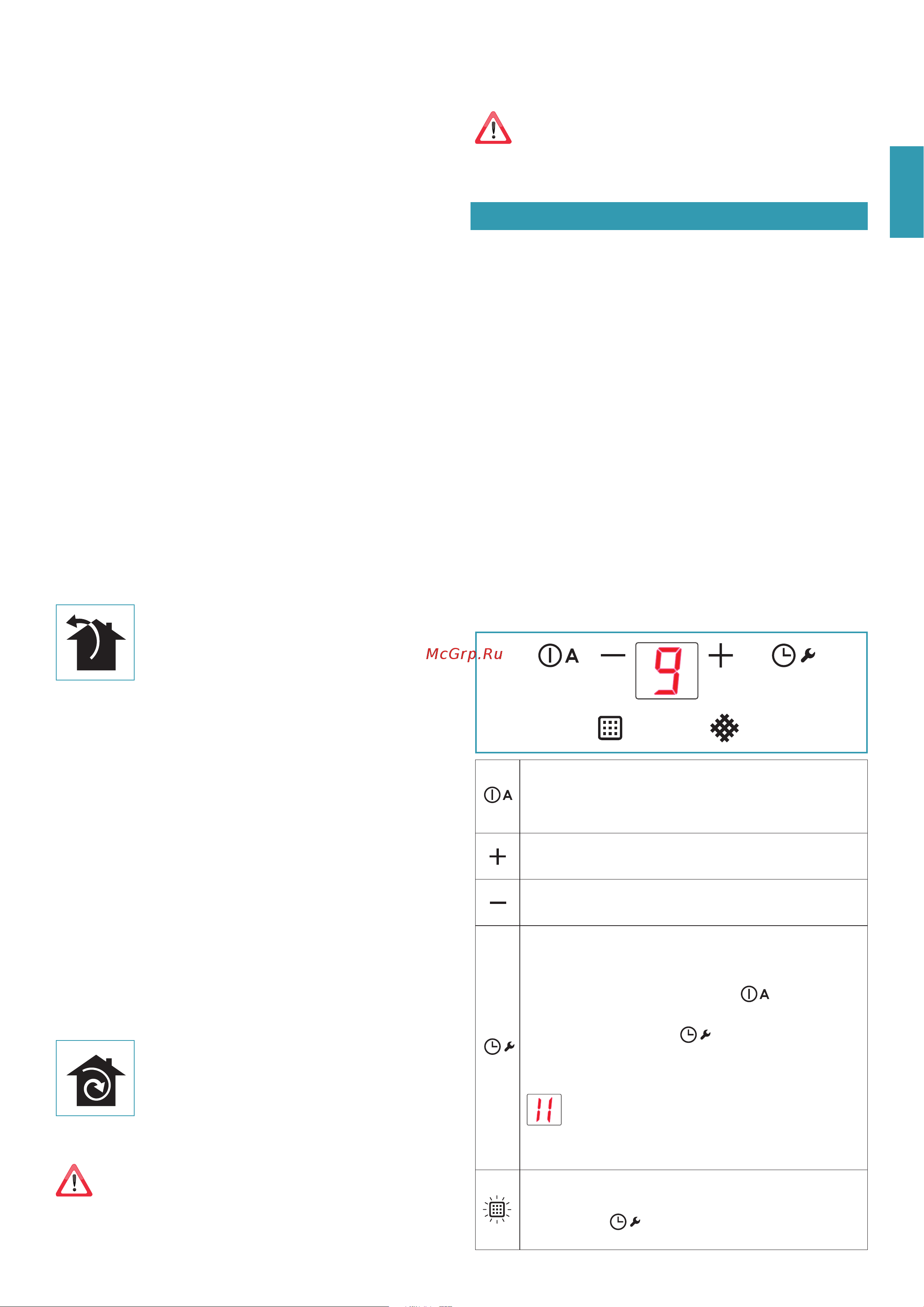

TOUCH PUSHBUTTON PANEL

ON/OFF

Short pulse: Hood switch ON/OFF

Long pulse: Hood operation automatic cycle activation (A)

according to plate power.

Speed increase from 1 to…9 (up to “P”).

Speed “P”: active only for a few minutes, then speed 9.

Speed decrease from P to 1.

With hood active (short pulse): TIMER (ashing red LED)

Automatic switch-o after 15 min.

The function is disabled (red LED OFF) if:

- The motor is switched o (button

- Press the TIMER button

again .

With the hood OFF (long pulse 4s):

opening the ns for hood and metal lter maintenance

Hold down the key for 4 seconds to exit maintenance mode.

FAT METAL FILTER ALARM

Maintenance after about 30 hours’ use.

Press button

for 5 seconds to reset the counter.
