32
• the power supply plug and cable do not come into contact with
temperatures exceeding 70 °C;
• the power supply system is eectively and properly connected to
earth in compliance with regulations in force.
•
the socket used to connect the cooker is within reach.
In case of:
• devices tted with cables without a plug: the type of plug to use is
a ''standardised'' one. The wires must be connected as follows: yel-
low-green for earthing, blue for neutral and brown for the phase. The
plug must be connected to an adequate safety socket.
•
xed equipment not provided with a power supply cable and plug,
or any other device that ensures disconnection from the electrical
mains, with an opening gap of the contacts that enables total discon-
nection in overvoltage category III conditions.
Said disconnection devices must be provided in the mains power
supply in compliance with installation regulations.
The yellow/green earth cable must not be cut o by the switch.
The Manufacturer declines all responsibility for failure to comply with
the safety regulations.

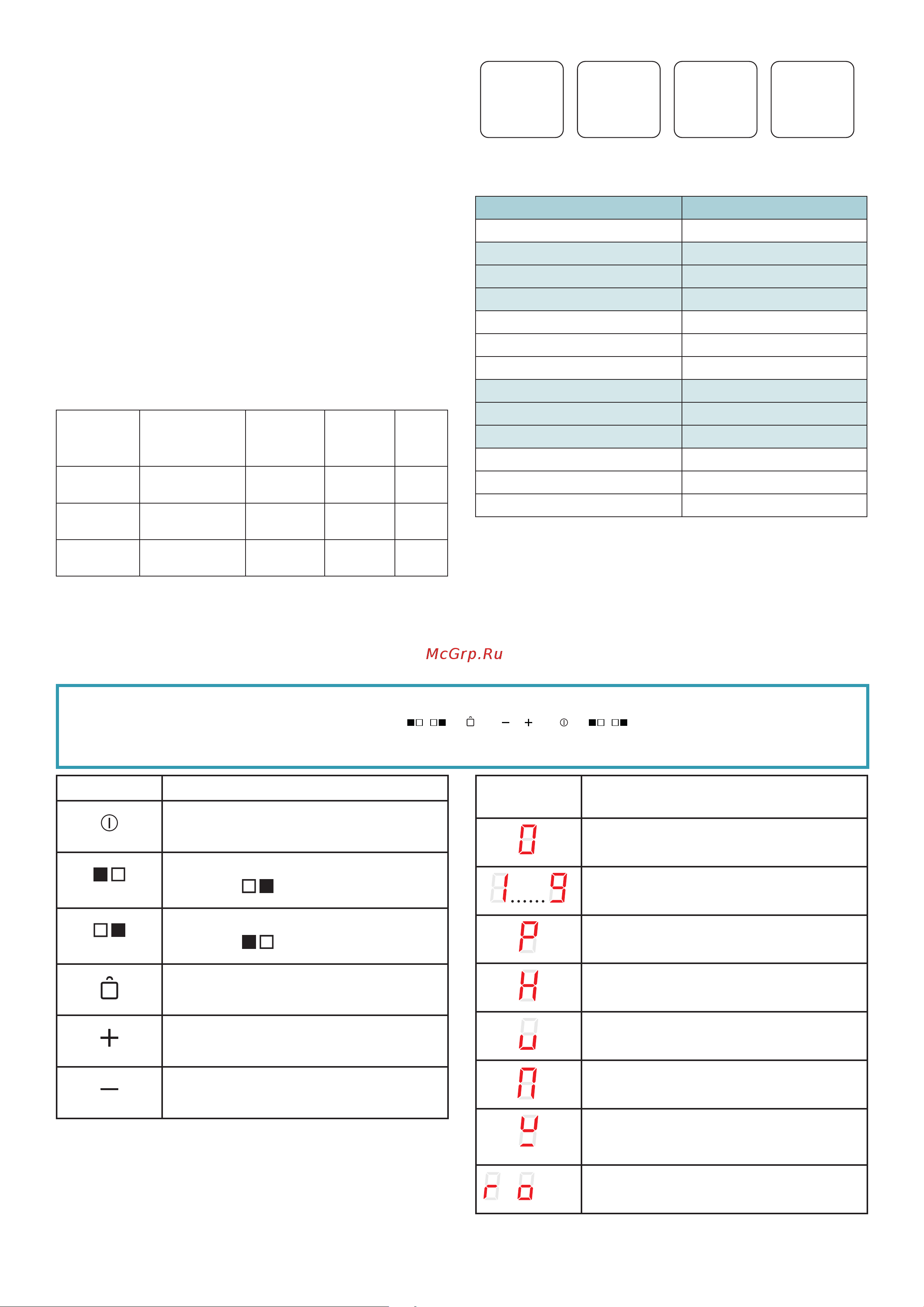

Connection of the cooker (Panoramico 90):
network Connection Cable
section
Power
cable
Switch
gauge
220V - 240V~
50/60Hz
1P+N / 2P 3 x 2.5 mm²
H 05 VV - F
H 05 RR - F
25 A *
380V - 415V~
50/60Hz
2P+N 4 x 1.5 mm²
H 05 VV - F
H 05 RR - F
16 A *
380V - 415V~
50/60Hz
3P+N 5 x 1.5 mm²
H 05 VV - F
H 05 RR - F
16 A *
* calculated with the contemporary factor in compliance with EN 60
335-2-6.
PANORAMICO
90
Control description
Cooker top ON/OFF. In case no other control is
enabled, the cooker switches o automatically after
a few seconds
Selection of the front cooking area. If pressed
together with it enables the BRIDGE function.
Selection of the back cooking area. If pressed
together with it enables the BRIDGE function.
Control block: pressed for more than 2 seconds it
inhibits all controls. To release controls, repeat the
operation.
Increase of the power level for cooking and booster
selection, or increase of cooking time of the TIMER
function.
Decrease of the power level for cooking and booster
selection, or decrease of cooking time of the TIMER
function.
Display
display
description
Cooking area in stand-by
Levels of power from the lowest to the highest one,
which can be selected pressing the keys + and -.
Power boost : maximum cooking power.
Indication of the residual heat
level of power between 0 and 1, suitable to
keep dishes warm
(solo
display
destro)
bridge function enabled.
(minimum saucepan diameter: Ø230 mm)
Saucepan not on the cooker or not suitable for
material and size.
(minimum saucepan diameter: Ø 120 mm)
(su
display
centrale)
+
Control block function enabled.
(on
central
display)
4321
POWER:
Feature
90
Total power
2800-7400W
Position 1
Rated power
1600W
Booster power
1850W
Position 2
Rated power
2100W
Booster power (1/2)
3000W
Position 3
Rated power
2100W
Booster power (1/2)
3000W
Position 4
Rated power
1600W
Booster power
1850W
