Aten KN1000A [105/196] User macros

Chapter 6. The WinClient Viewer

User Macros

User Macros are used to perform specific actions on the remote server. To

create the macro, do the following:

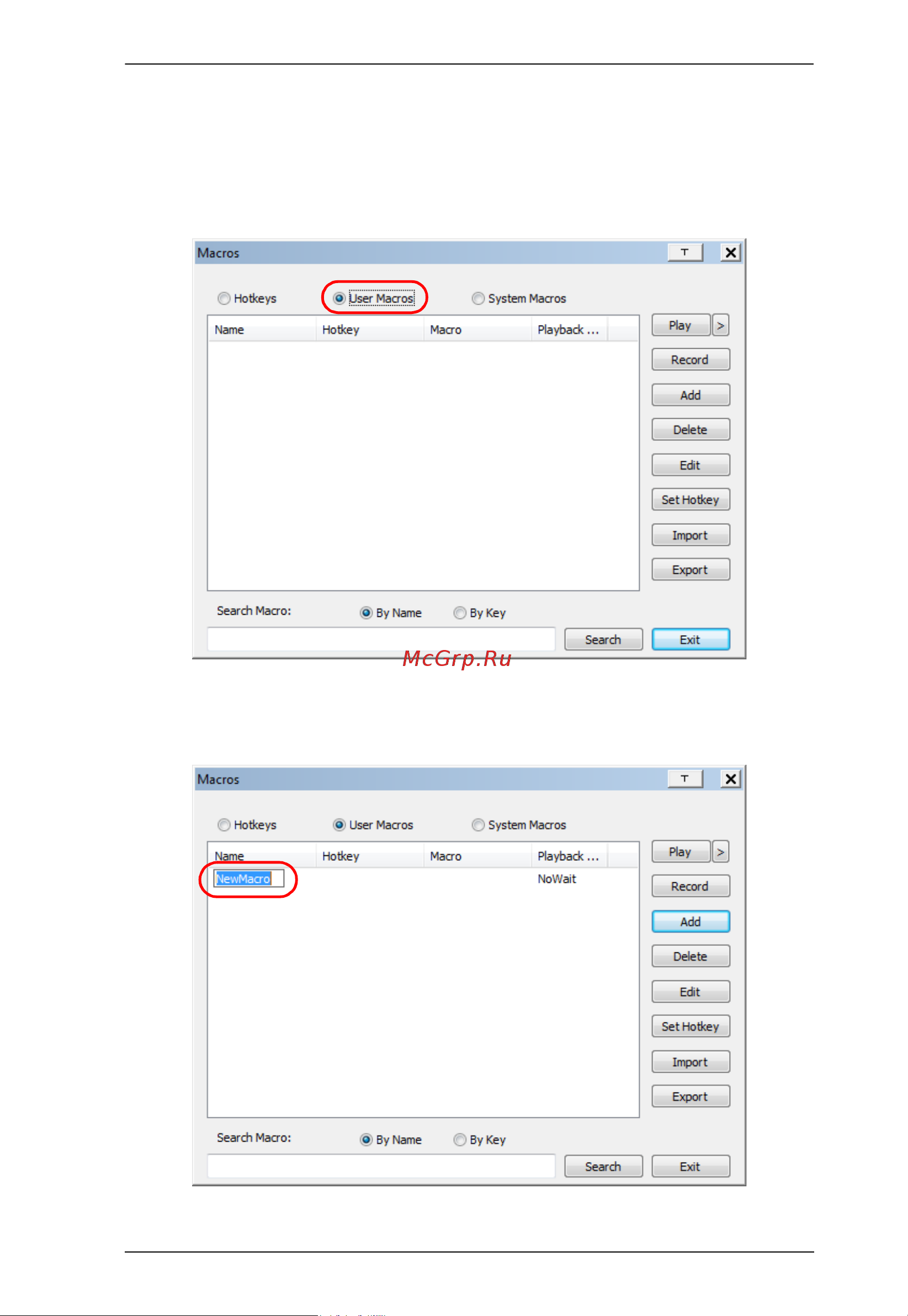

1. Select the User Macros radio button, then click Add.

2. In the dialog box that comes up, replace “NewMacro” with a name of your

choice for the macro:
