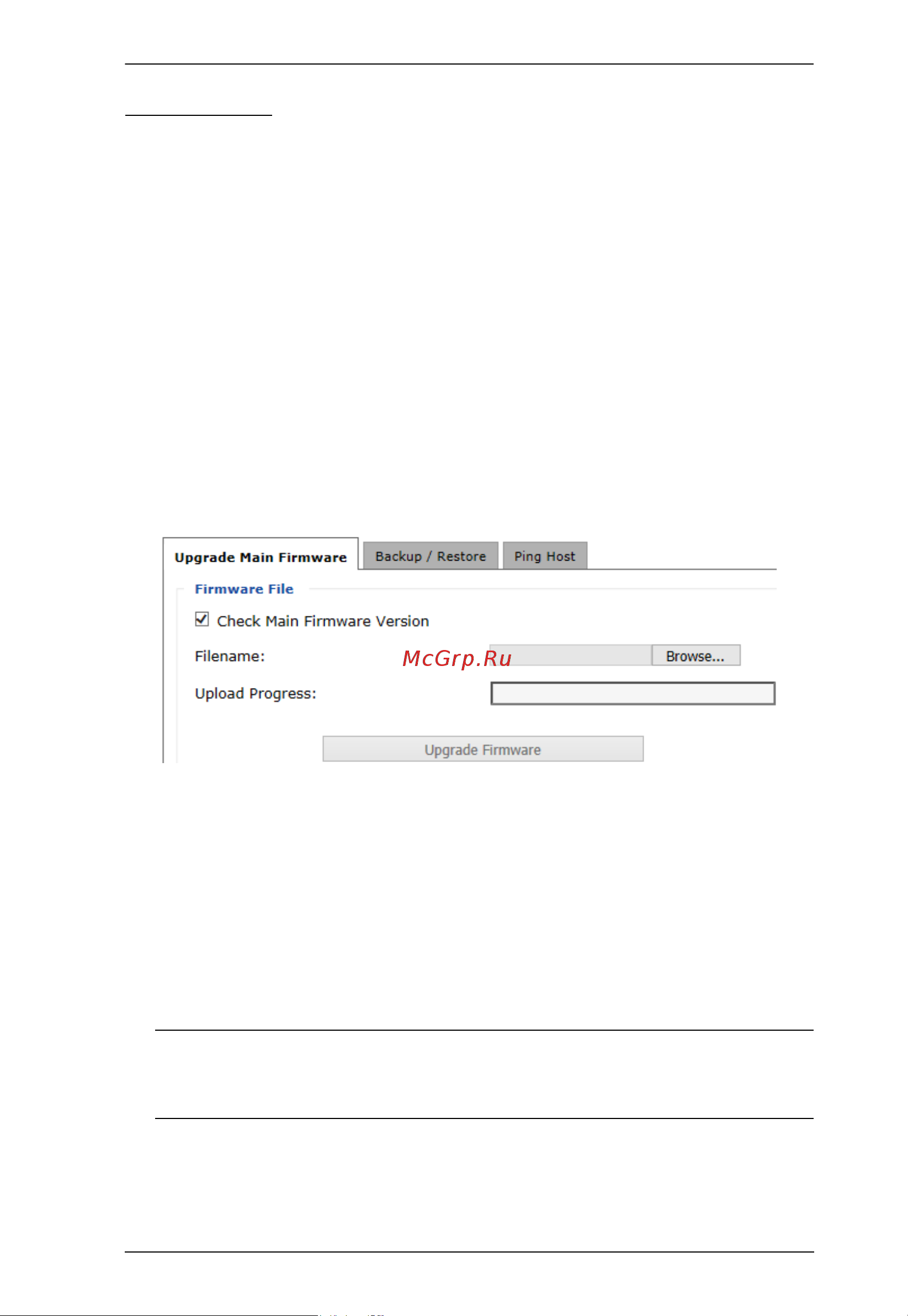

![Aten KN1000A [51/196] Maintenance](/views2/1977356/page51/bg33.png)
Chapter 5. Configuration
35
Maintenance
The Maintenance screen allows the Administrator to upgrade the KN1000A’s
firmware, backup/restore the KN1000A’s configuration settings and ping an IP
address.
Upgrade Main Firmware
As new versions of the KN1000A firmware become available, they can be
downloaded from our website. Check the website regularly to find the latest
information and packages.
To upgrade the firmware, do the following:
1. Download the new firmware file to your computer.
2. Open your browser; log in to the KN1000A; and click Maintenance in the
left panel menu to bring up the Upgrade Main Firmware dialog box as
follows:
3. Click Browse; navigate to the directory that the new firmware file is in
and select the file.
4. Click the Upgrade Firmware button.
If Check Main Firmware Version is enabled, when you perform an
upgrade the current firmware level is compared with that of the upgrade
file. If the current version is higher than the upgrade version, a message
appears informing you of the fact and the procedure stops.
Note: If you want to install an older firmware version, you must uncheck
the Check Firmware Version checkbox before clicking Upgrade
Firmware.
