Aten KN1000A [181/196] Certificate trusted

Appendix

165

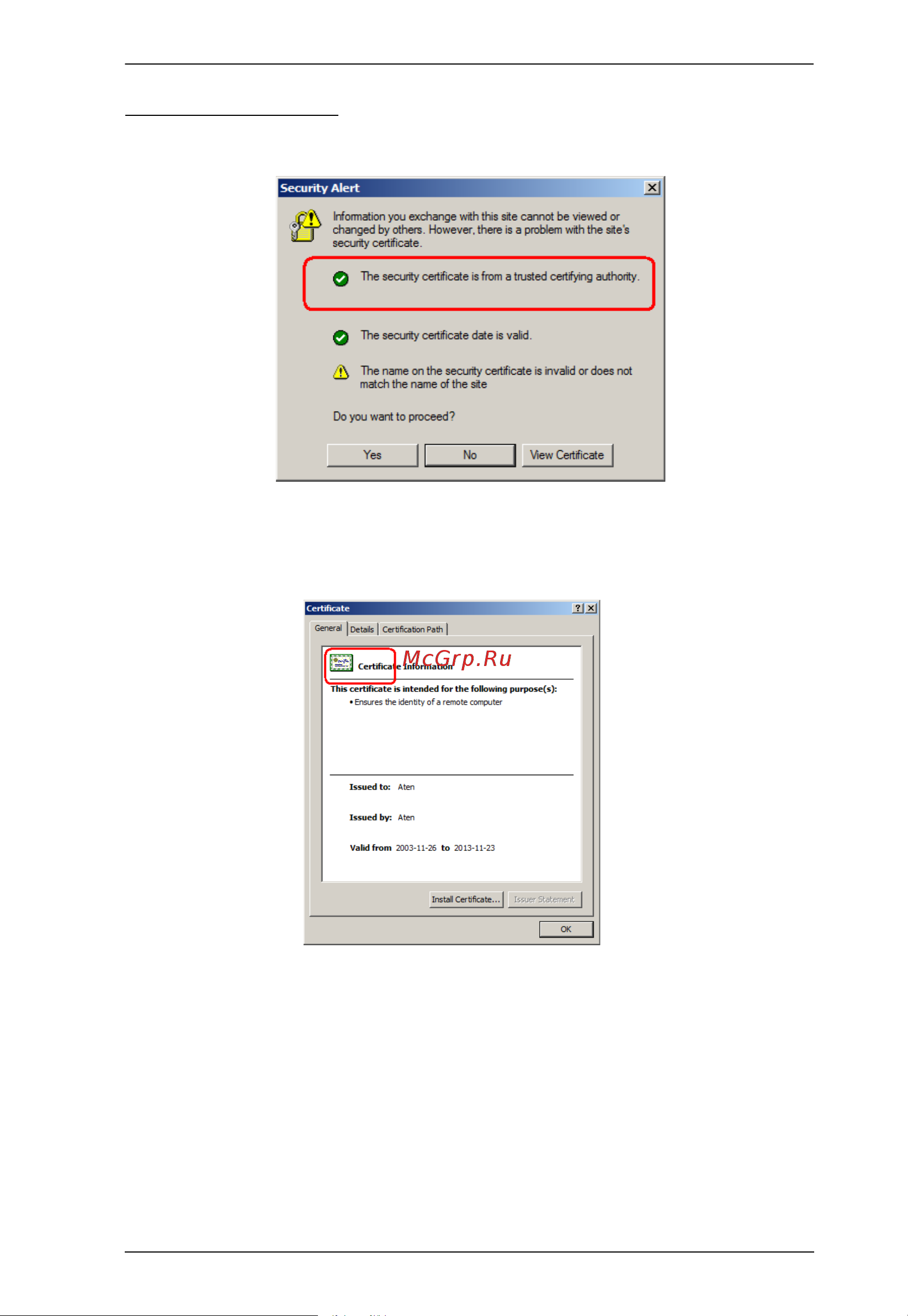

Certificate Trusted

The certificate is now trusted:

When you click View Certificate, you can see that the red and white X logo is

no longer present – further indication that the certificate is trusted:
