Chapter 1. Introduction
5
Components

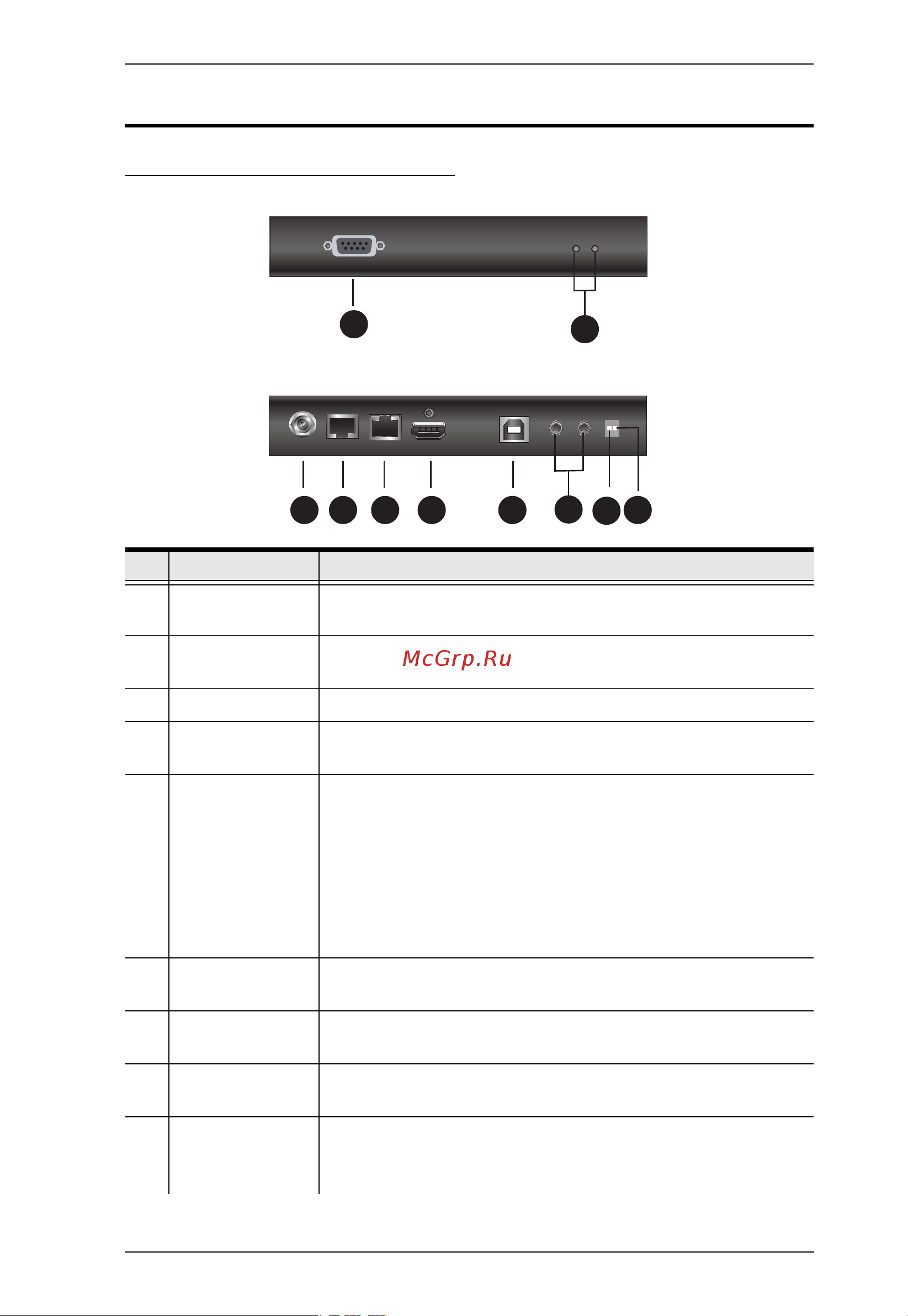

CE820L Front and Rear View
No. Component Description
1 RS-232 Serial
Port
Receives an RS-232 serial cable which connects to the local
computer.
2 LEDs Indicate the Link and Power status of the CE820L. For more
details, see LED Display, page 19.
3 Power Jack Receives the supplied power adapter.
4 HDBaseT Out
Port
Receives a Cat 5e/6/6a cable or an ATEN 2L-2910 cable
which connects to the CE820R unit.
5 Ethernet Port
If there is a NOT APPLICALBE rubber plug inserted to this
port, this port is not functional for the device.
If there is no Ethernet port on the device, the Ethernet
capability is not supported.
For device supporting the Ethernet port, plug a Cat 5e/6/6a
cable or an ATEN 2L-2910 cable which connects to the
local computer.
6 HDMI In Port Receives the HDMI connect from the supplied KVM Cable Set
which connects to the local computer.
7 USB Type-B Port Receives a USB connector from the supplied KVM Cable Set
which connects to the local computer.
8 Audio Ports Receive audio connectors from the supplied KVM Cable Set
which connects to the local computer.
9 Long Reach
Mode Switch
Put the switch to ON to enable the Long Reach Mode to
transmit HDMI signals up to 150m, at 1080p. For details, see
Long Reach Mode, page 19.
1
3
3 4 5 7
8
6
11
CE820L Front View
CE820L Rear View
9
10
2
