CE820 / CE920 User Manual
8

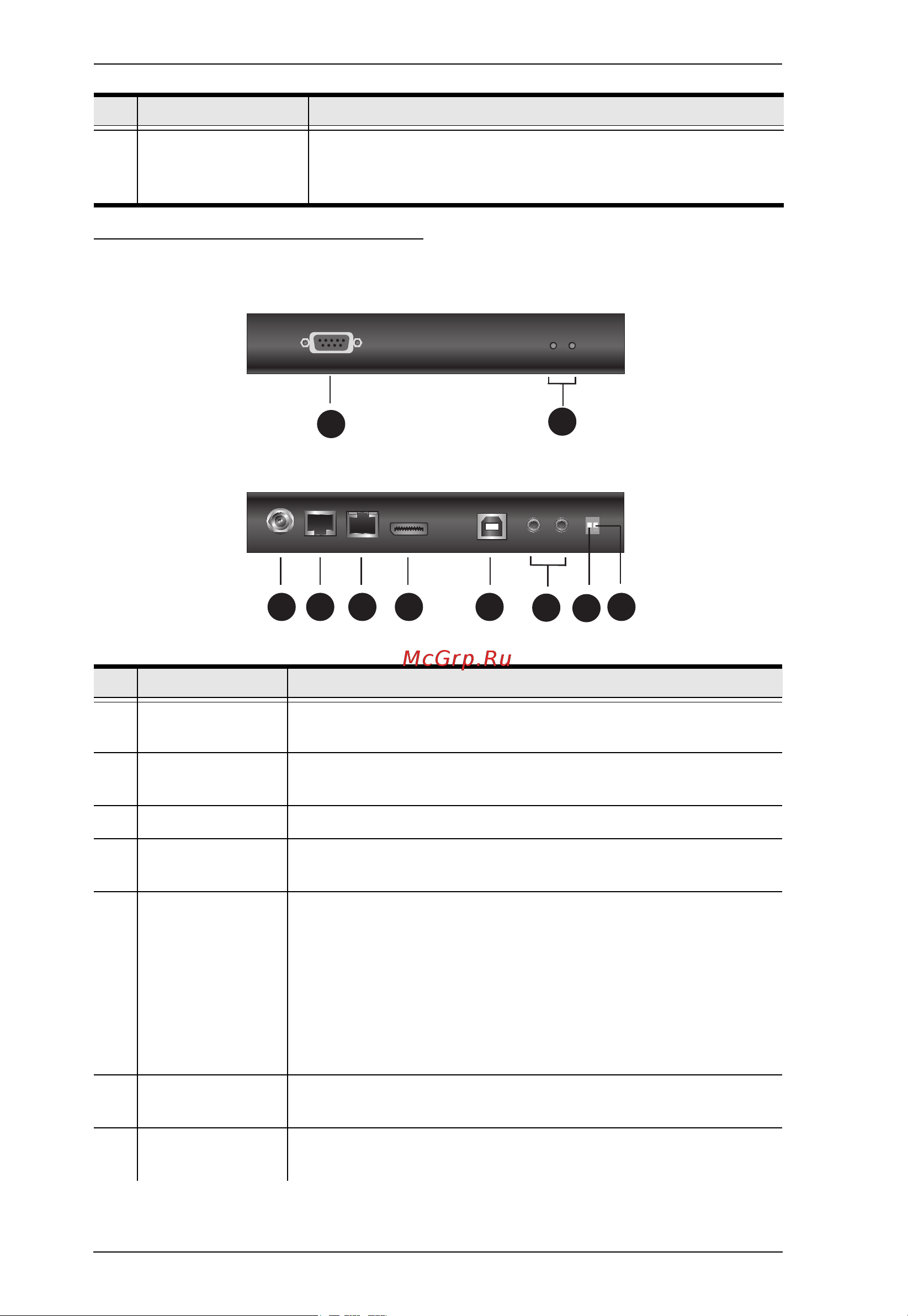

CE920L Front and Rear View
12 Firmware Upgrade
Switch
This function is reserved for ATEN Technical Support. If you
would like to do a firmware upgrade yourself, please
contact your dealer.
No. Component Description
1 RS-232 Serial
Port
Receives an RS-232 serial cable which connects to the local
computer.
2 LEDs Indicate the Link and Power status of the CE920L. For more
details, see LED Display, page 19.
3 Power Jack Receives the supplied power adapter.
4 HDBaseT Out
Port
Receives a Cat 5e/6/6a cable or an ATEN 2L-2910 cable
which connects to the CE920R unit.
5 Ethernet Port
If there is a NOT APPLICALBE rubber plug inserted to this
port, this port is not functional for the device.
If there is no Ethernet port on the device, the Ethernet
capability is not supported.
For device supporting the Ethernet port, plug a Cat 5e/6/6a
cable or an ATEN 2L-2910 cable which connects to the
local computer.
6 DisplayPort In
Port
Receives the supplied DisplayPort cable which connects to
the local computer.
7 USB Type-B Port Receives the supplied USB Cable which connects to the local
computer.
No. Component Description
1
3 4 5 76
10
CE920L Front View
CE920L Rear View
2
8
9
