9
Chapter 2
Hardware Setup
Overview
The CL3108 / CL3116 is a switch designed to work with USB and PS/2
interfaces. It utilizes custom KVM cables that serve as the medium between the
switch and managed computers. A custom KVM cable is required for each
computer, and the available types are listed on page 3. Consult your dealer to
find out which custom KVM cables best fit your needs.
Before you Begin
1. Important safety information regarding the placement of this
device is provided on page 57. Please review it before
proceeding.
2. Make sure that the power of all devices to be connected has been
turned off. You must unplug the power cords of any computers
with Keyboard Power-On function.
3. The LCD KVM switch is designed for rack mounting. If the
KVM switch is not rack mounted, be sure to place it on a leveled
and firm surface before pulling the device in or out to prevent
damage due to uneven force on the module.

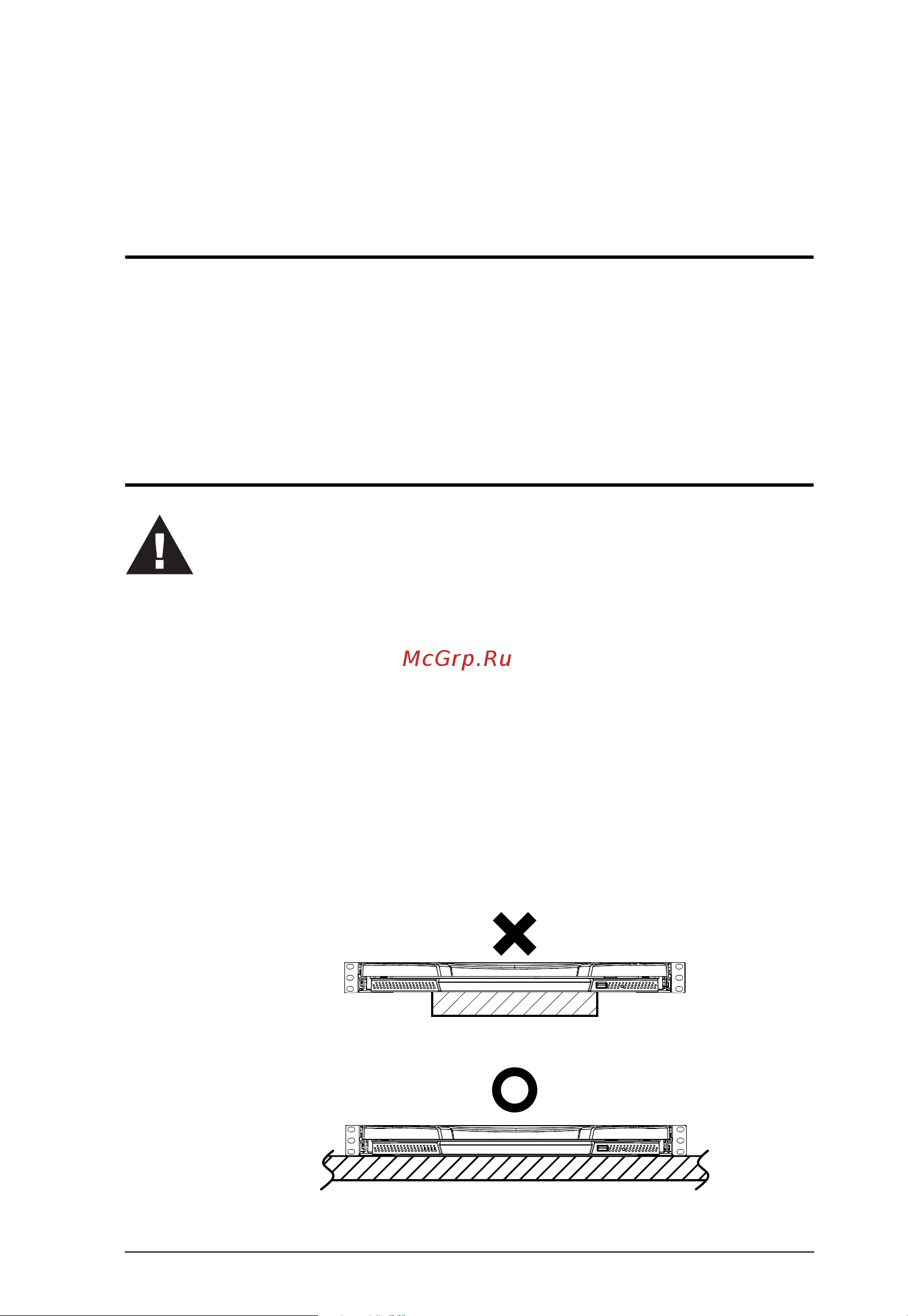

Place on Flat Surface
