CL3108 / CL3116 User Manual
6

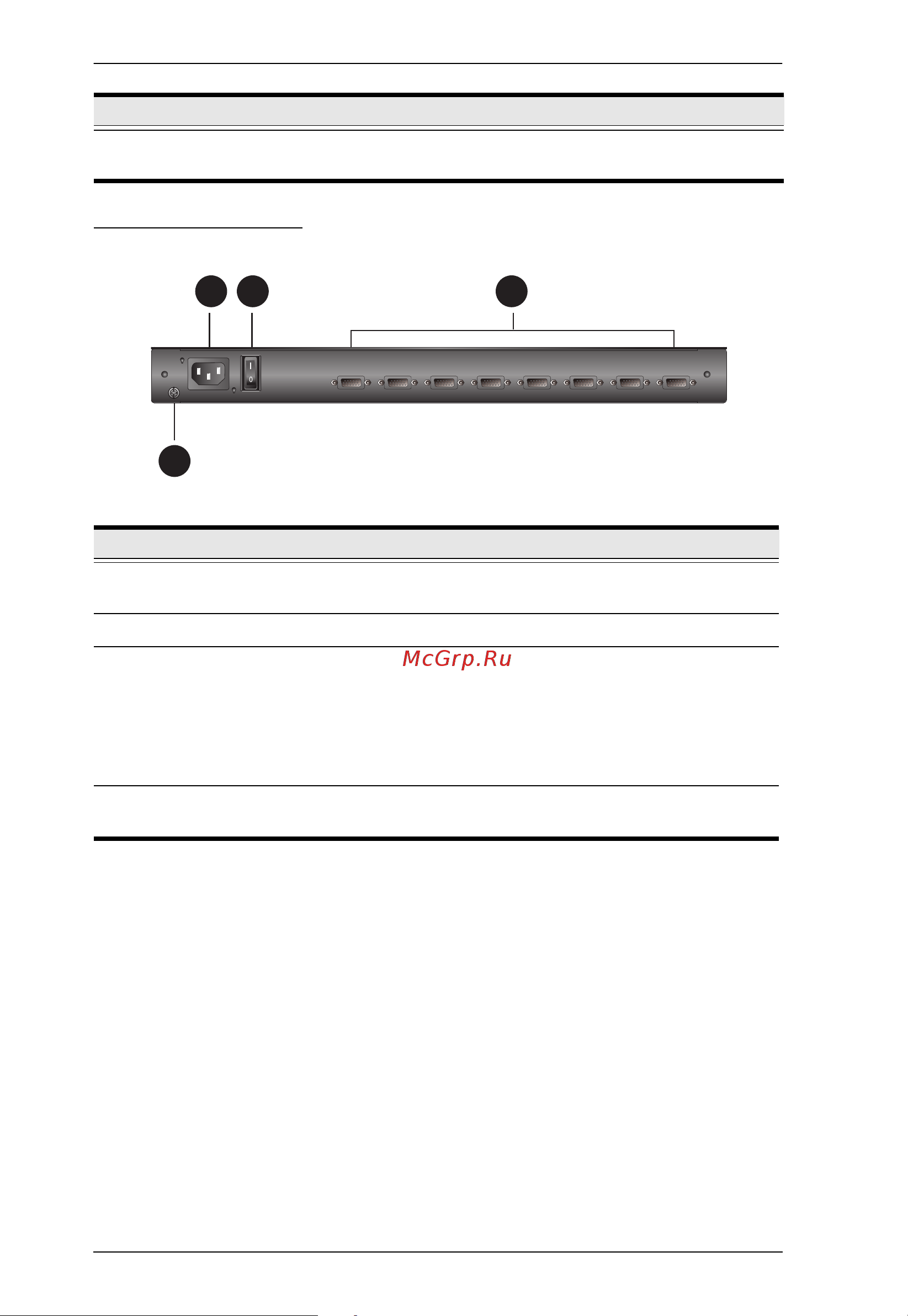

CL3108 Rear View
15 LCD controls The buttons to control the position and picture settings of the
LCD display are located here. See page 22, for details.
No. Component Description
1 power socket This is a standard 3-prong AC power socket. The power cord
from an AC source plugs in here.
2 power switch This standard rocker switch powers the unit on and off.
3 KVM port section The cables that link to the computers plug in here.
Note: The shape of these SPHD connectors have been
specifically modified so that only KVM cables designed to
work with this switch can plug in (see the Cables section on
page 3, for details). Do NOT attempt to use ordinary 15 pin
VGA connector cables to link these ports to the computers.
4 grounding
terminal
The grounding wire used to ground the switch attaches here.
No. Component Description
1
4
2 3
