CL3108 / CL3116 User Manual
10
Standard Rack Mount
A standard rack mount kit is provided with your CL3108 / CL3116, allowing
it to be mounted in a 1U rack space. The kit enables the switch to be mounted
onto a rack with a depth of 58.0 - 80.0 cm. The installation procedures are

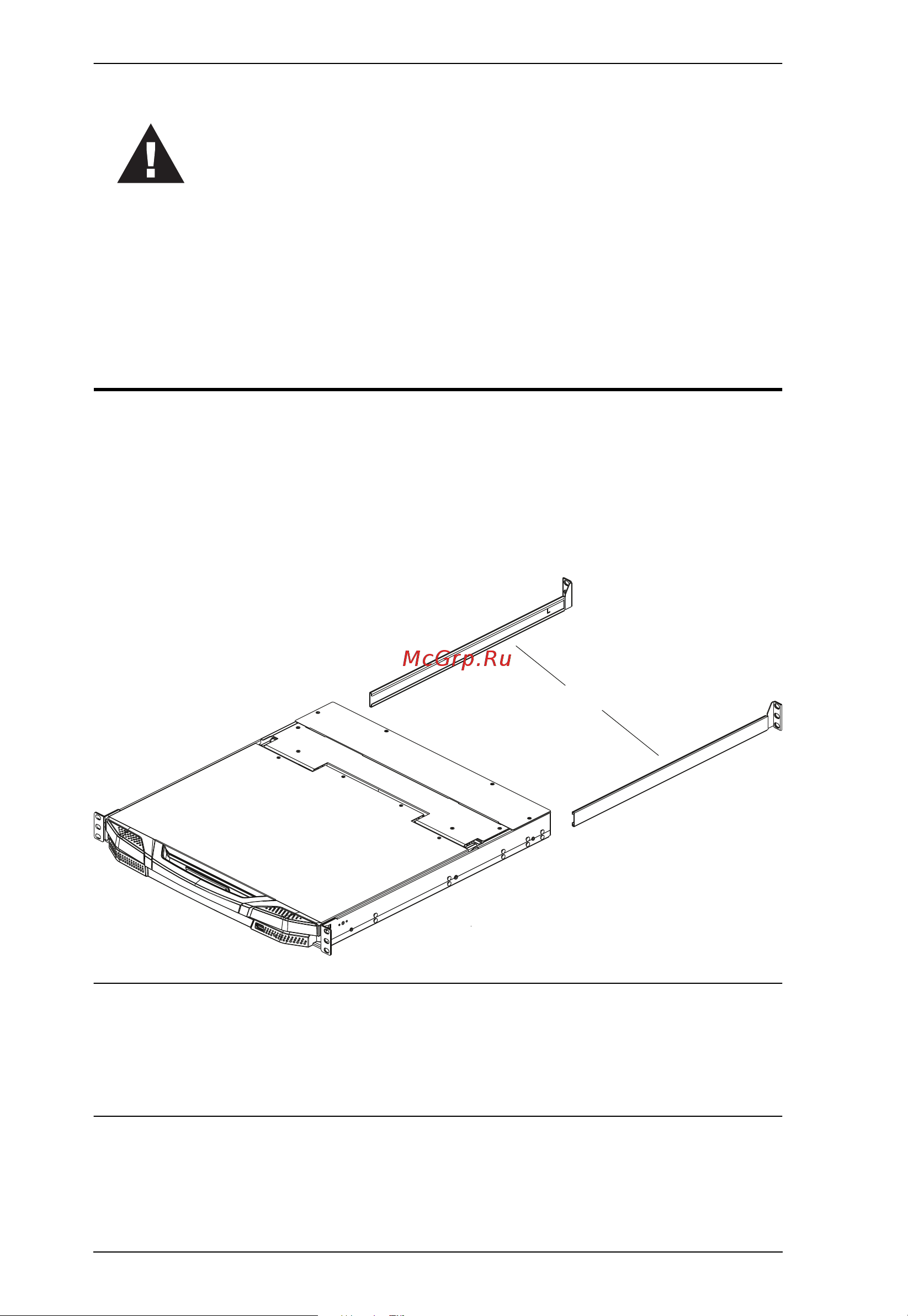

described in the following sections. Below is an image of the parts included
with your package that will be needed for rack installation.
Note: It takes two people to mount the console.
The standard rack mount kit does not include screws or cage nuts.
If you need additional screws or cage nuts, contact your rack
dealer.
left & right L-shaped brackets
4. Please operate the device with caution when under high
environmental temperatures, as the surface of the device
may become overheated under such conditions. For
instance, the surface temperature of the device may reach
70 ºC or higher when the environmental temperature
reaches close to 50 ºC.
