Chapter 2. Hardware Setup

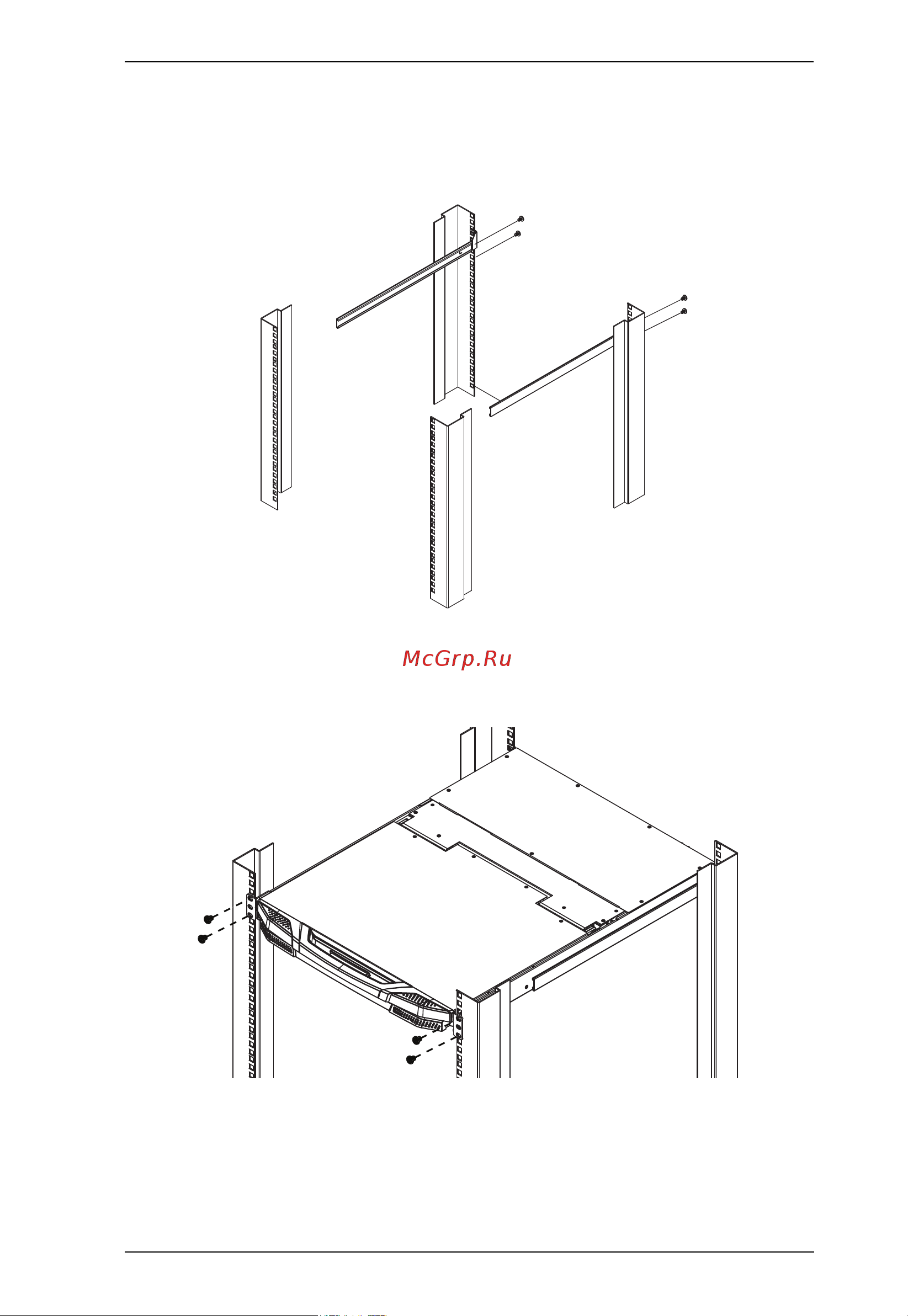

To rack mount the CL3108 / CL3116, do the following:

1. Attach the left and right mount brackets to the back of the rack, installing

four screws in the brackets to secure them in place.

2. While one person inserts the unit into place by sliding its left and right side

bars into the left & right L-shaped brackets (on the rack), have a second

person screw the front brackets to the rack.

3. After the front brackets are secured, tighten all the screws.

Allow at least 5.1 cm of clearance on each side for proper ventilation, and

at least 12.7 cm at the back for the power cord and cables.
