Chapter 3. Basic Operation
19

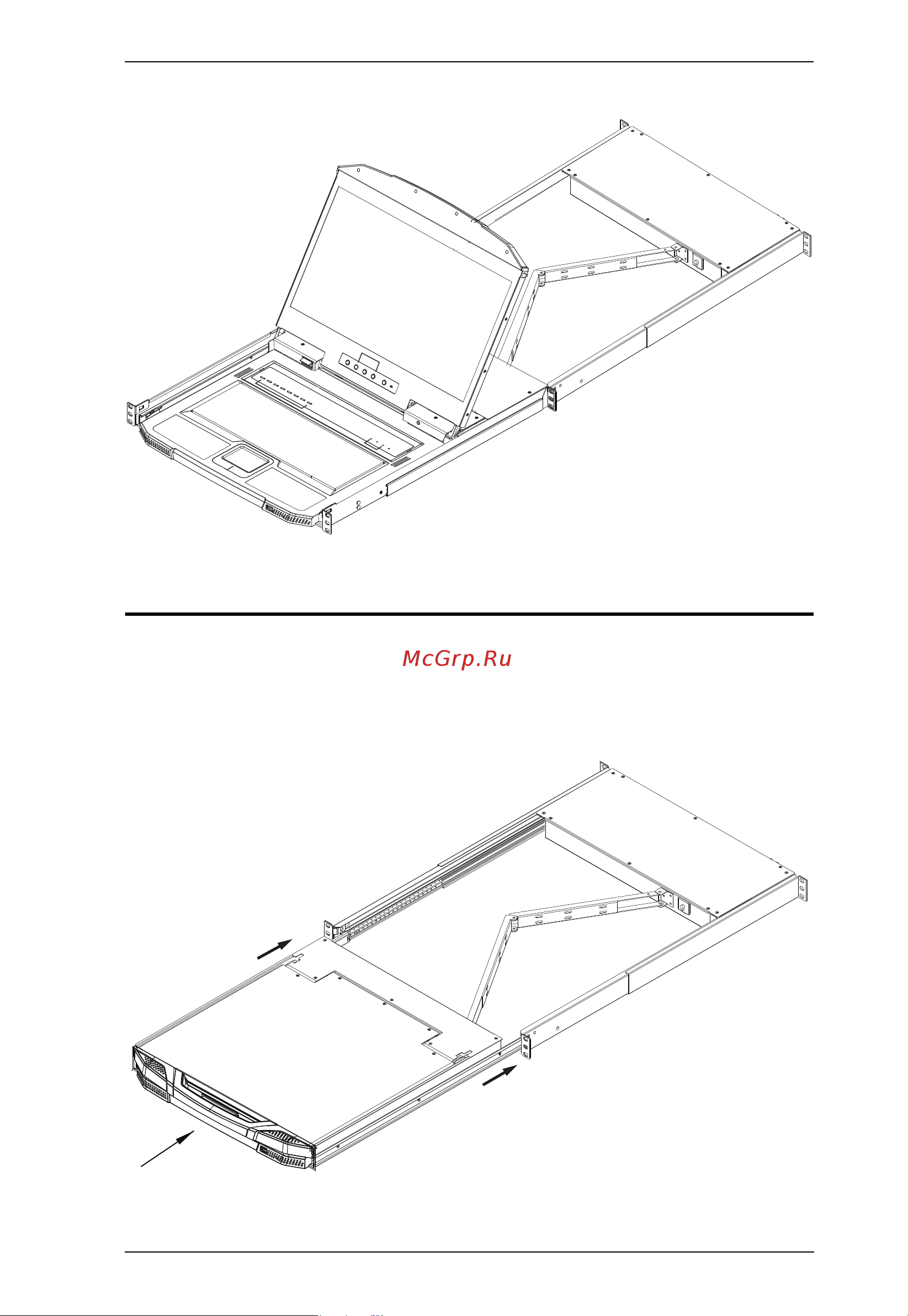

4. Below is what the CL3108 / CL3116 looks like when it is opened up.
Closing the Console
To slide the console module back in, do the following:
1. Close the cover.
2. Push the module all the way in until it automatically locks in place.
