Chapter 1. Introduction
9

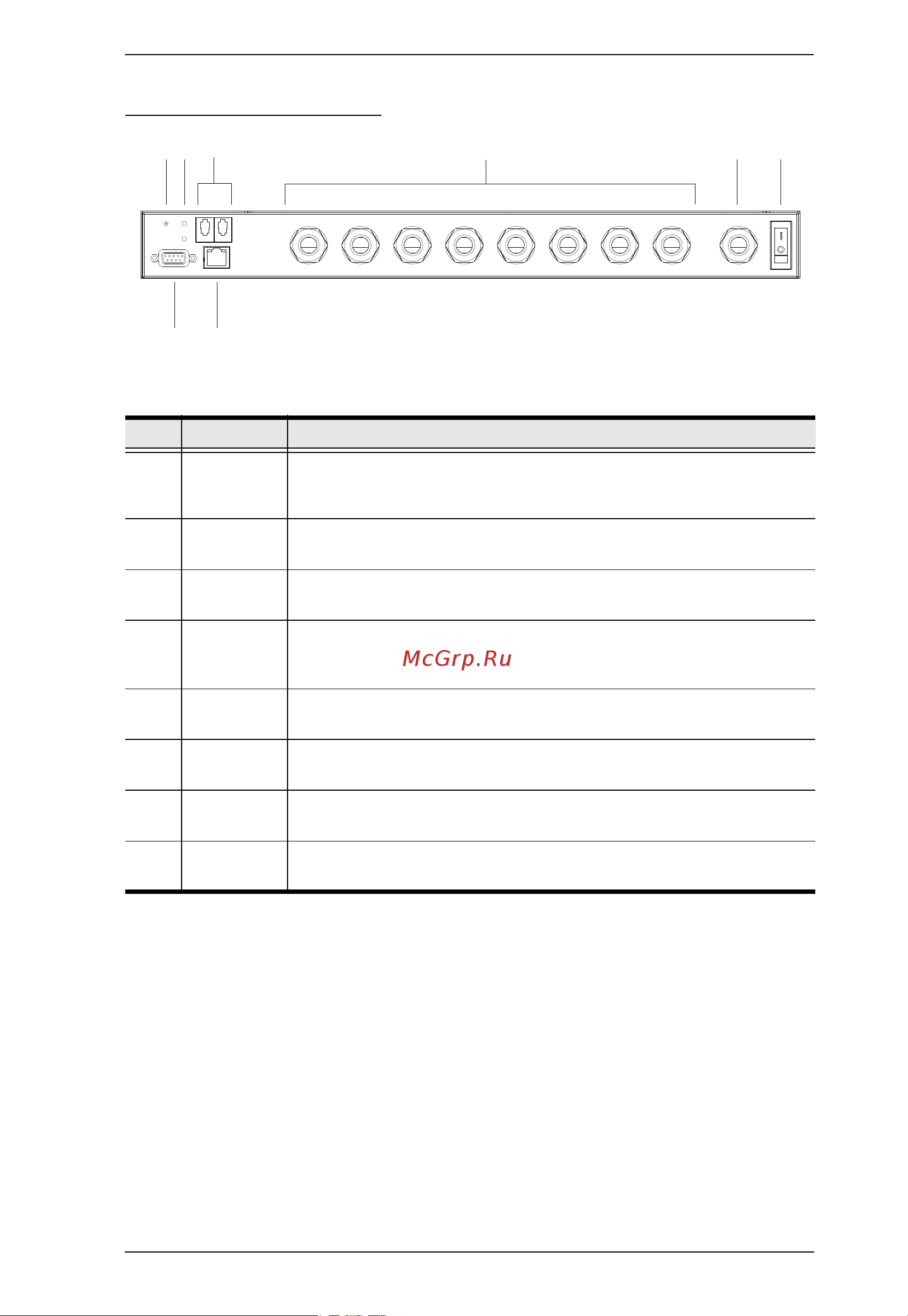

PE6208AVX Rear View
No. Item Description
1 reset
button
Press and release to reboot the PDU. This button is recessed and
must be pushed with a thin object, such as the end of a paper clip,
or a ballpoint pen.
2 sensor
LEDs
Two sensor LEDs light GREEN when a sensor is connected to the
respective sensor port.
3 sensor
ports
External sensors plug into these two RJ-11 ports.
4 power
outlet cable
glands
Connect power of computers here. Please refer to Power Cord
Installation (PE6208AVX) on page 15.
5 power inlet
cable gland
Connect AC source here. Please refer to Power Cord Installation
(PE6208AVX) on page 15.
6 power
switch
This standard rocker switch powers the PE6208AVX on or off.
7 RS-232
port
This port can be used to attach to a computer for local power on/
off/reboot control.
8 LAN port The Cat 5e cable that connects the PE6208AVX to the Internet
plugs in here.
432
7
8
561
