Chapter 3. Basic Operation and First-Time Setup
25
Network Configuration
To configure the network settings, do the following:
1. Click the Setup tab.

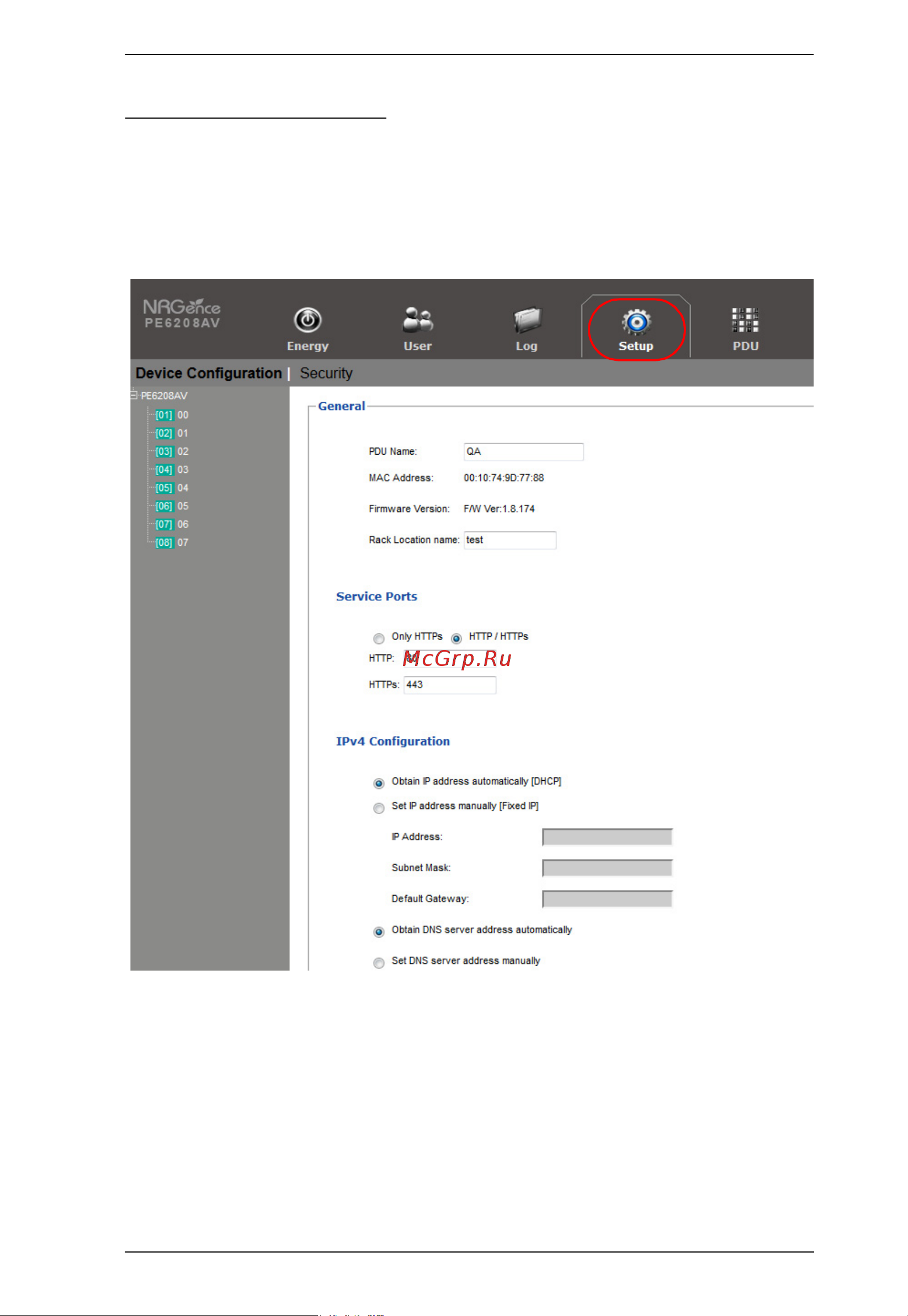

2. The interface displays the Device Configuration page. A screen similar to
the one below appears:
3. Fill in the fields according to the information provided under Device
Configuration, page 47.
