PE6108AV / PE6208AV / PE8208AV User Manual

3. There is an RJ-45 port on the front panel and rear module used to connect

the two units. A standard Ethernet cable can be used to extend the front

panel and rear module farther apart.

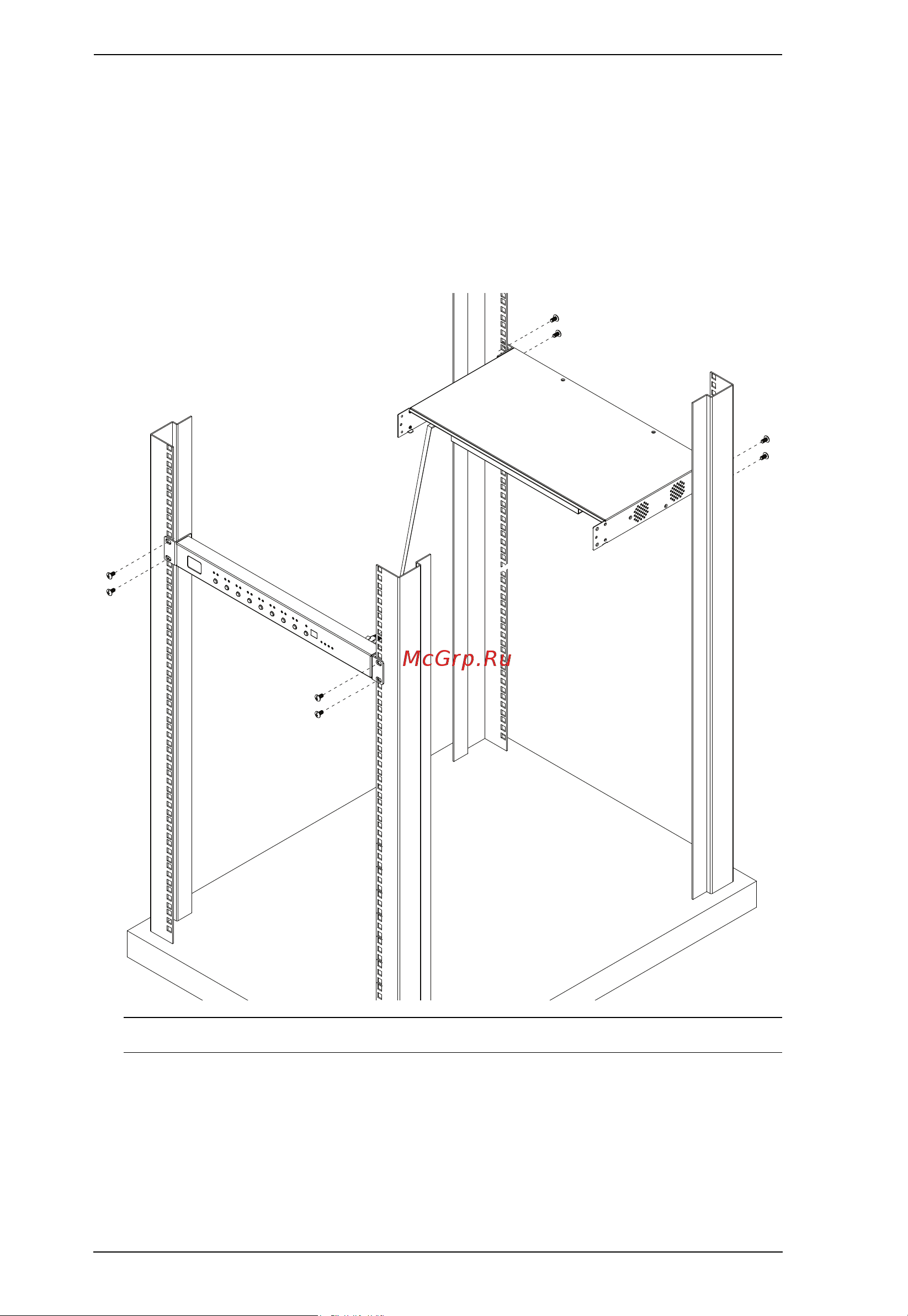

4. Position the device in the rack and align the holes in the mounting brackets

with the hole in the rack.

5. Screw the mounting brackets to the rack.

Note: Cage nuts are provided for racks that are not prethreaded.
