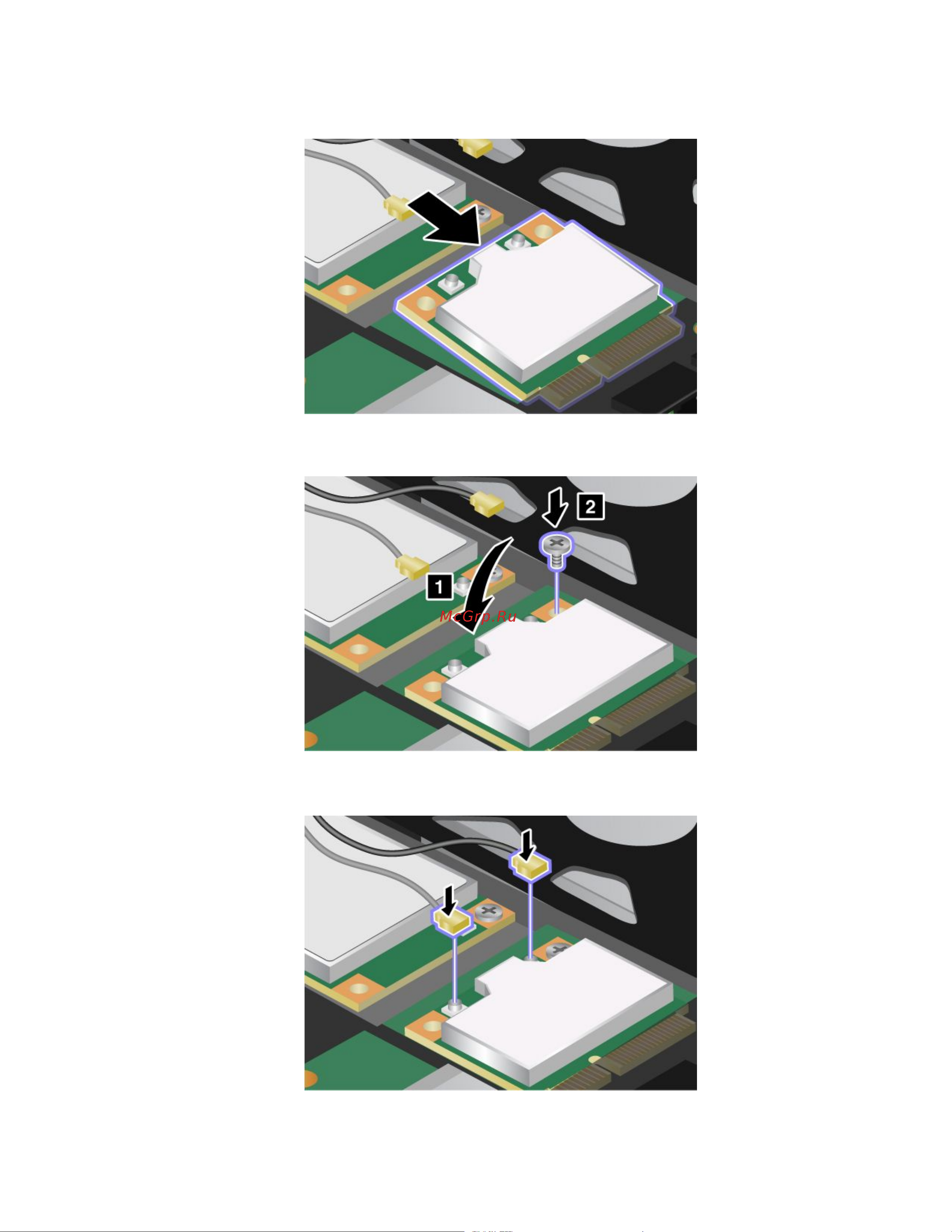

9.Alignthecontactedgeofthenewcardwiththecorrespondingsocket.

10.Pivotthecarduntilyoucansnapitintoplacebypressingtheuppersideoftheconnectors,andsecure

thecardwiththescrew.

11.ConnectthecablestothenewwirelessLAN/WiMAXcard.Ensurethatyouattachthegraycabletothe

connectormarkedTR1orMainonthecard,andtheblackcabletotheconnectormarkedTR2orAux.

12.Reinstallthepalmrest.See“Replacingthepalmrest”onpage84.

Chapter6.Replacingdevices89
