Lenovo ThinkPad X230t [24/182] Power status indicators

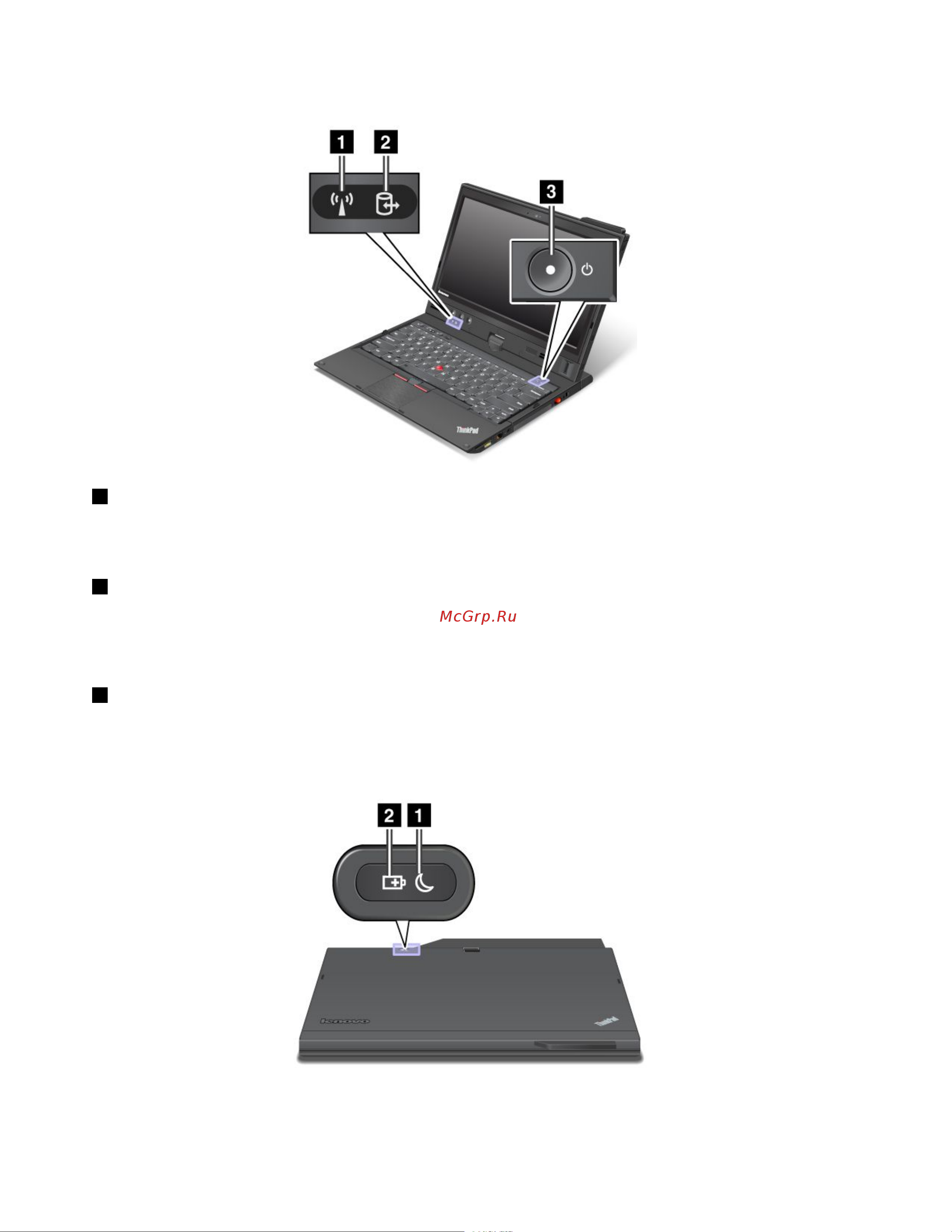

Systemstatusindicators

1WirelessLAN/WAN/WiMAX/Bluetoothstatusindicator

•Green:ThewirelessLAN,WAN,BluetoothorWiMAXfeatureison.

•Off:Wirelessnetworkdevicesaredisabledorthewirelessradioisturnedoff.

2Deviceaccessstatusindicator

Theharddiskdrive,solid-statedrive,ormSATAsolid-statedriveisreadingorwritingdata.

Note:Whenthisindicatorisblinking,donotputthecomputerintosleepmode,orturnoffthecomputer.

3Power-onstatusindicator

Thepowerbuttonstayslitwheneverthecomputerison,blinkswhenthecomputerisinsleepmode,and

isoffwhenthecomputeristurnedoff.

Powerstatusindicators

8UserGuide
