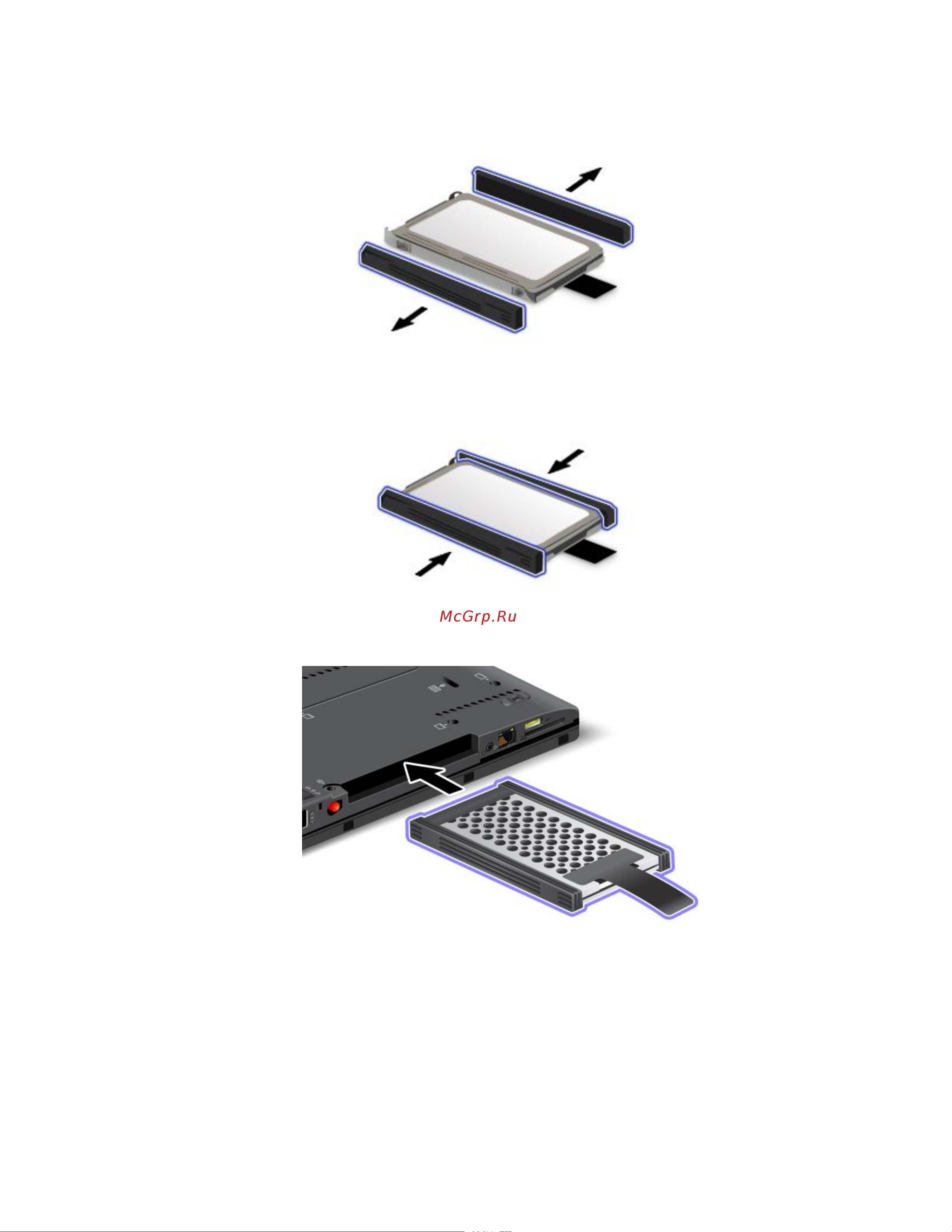

6.Detachthesiderubberrailsfromtheharddiskdriveorthesidespacerrailsfromthesolid-statedrive.

7.Attachthesiderubberrailstoanewharddiskdriveorthesidespacerrailstothenewsolid-statedrive.

8.Insertthenewharddiskdriveorsolid-statedriveintotheslot.

Chapter6.Replacingdevices77
