ADJ Double Phase LED [4/10] Pin xlr dmx connectors
![ADJ Double Phase LED [4/10] Pin xlr dmx connectors](/views2/1990712/page4/bg4.png)

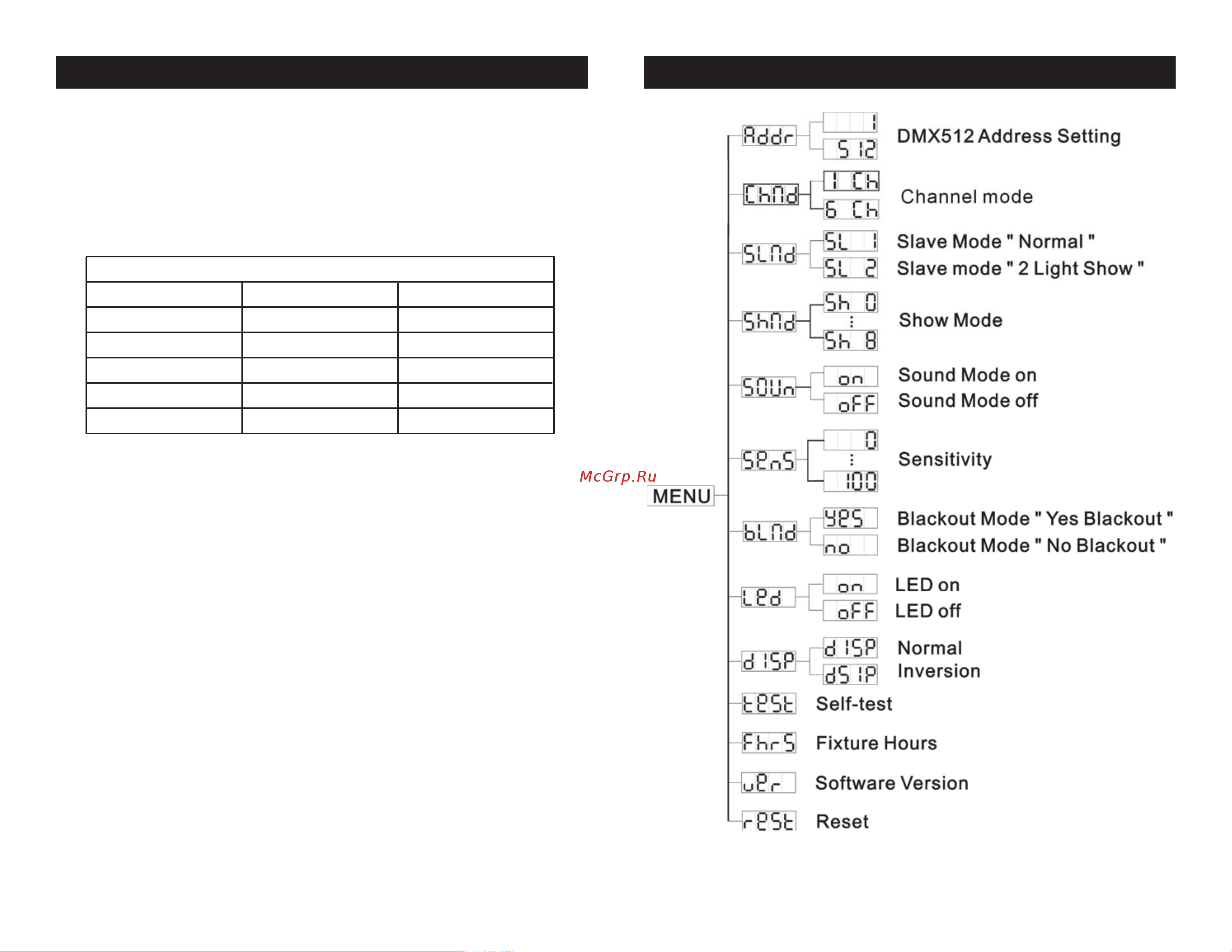

American DJ® - www.americandj.com - Double Phase LED Instruction Manual Page 7 American DJ® - www.americandj.com - Double Phase LED Instruction Manual Page 8
5-Pin XLR DMX Connectors.
Some manufactures use 5-pin DMX-
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX
xtures may be implemented in a 3-pin DMX line. When inserting stan-
dard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart
below details a proper cable conversion.
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Pin 1
Pin 5 - Do Not Use
Pin 4 - Do Not Use
Pin 3
Pin 2
Pin 1
Pin 3
Pin 2
Not Used
Not Used
Data True (+ signal)
Data Compliment (- signal)
Ground/Shield
3-Pin XLR to 5-Pin XLR Conversion
Double Phase LED Set Up Double Phase LED System Menu
