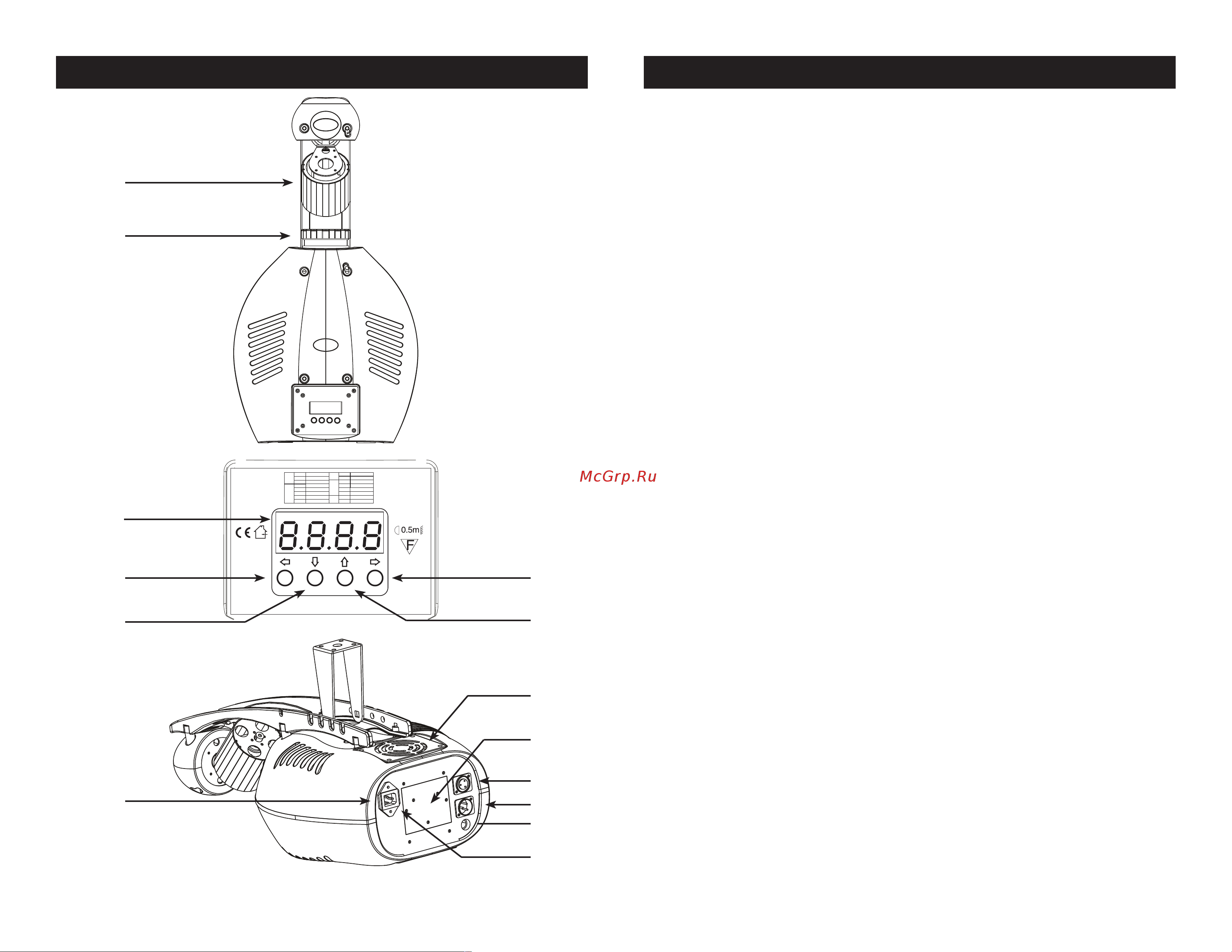

American DJ® - www.americandj.com - Accu Roller 250™ Instruction Manual Page 8American DJ® - www.americandj.com - Accu Roller 250™ Instruction Manual Page 7
Accu Roller 250™ Controls and Functions Accu Roller 250™ Controls and Functions
1. Barrel Mirror - This is a highly reflective surface mirror specifically
designed to optimize and enhance beam output. Never use glass
cleaner that contain ammonia to clean the surface of the mirror (such
as Windex).
2. Lens Assembly - This high quality lens is a fully focusing. Focus
the lens by manually turning the lens in a clockwise or counter-clock-
wise direction until the desired effect is achieved.
3. Digital Display - This display shows the menu and operating func-
tions that you can choose from.
4. Mode/Enter Button - This button is used to select and confirm a
function when working in the system menu. It is also used to exit cer-
tain menus.
5. Down Button - This button is used to scroll backwards when navi-
gating through the system menu.
6. Fuse Holder - This housing stores a 8 amp (4 amp 220v) GMA pro-
tective fuse. Never defeat the fuse, the fuse is designed to protect the
electronics in the event of severe power fluctuations. Always be sure
to replace the fuse with an exact match as the one being replaced,
unless otherwise told to do so by an authorized American DJ® service
technician.
7. Power Cord Inlet - This unit is equipped with a removable I.E.C.
power cord. Be sure to only use the power cord included with the
unit, this cord is designed to match the electrical requirements of the
unit. Other cords may cause the unit to overheat or malfunction. Volt-
age may vary from venue to venue, when connecting this unit to a
power supply be sure to connect to a matching power outlet. Never
use this fixture if the ground prong has been removed or broken off.
The ground prong is designed to reduce the risk of fire or electrical
shock in the event the unit suffers from an internal short.
8. MINI/C Controller Jack - This jack is for use with the optional
MINI/C controller only. This controller is used to control the blackout
function. Do not attempt to connect an audio signal to this jack, this
will damage the PC board and void your manufactures warranty!
9. XLR DMX Input Jack - This jack is used to receive an incoming
DMX signal or Master/Slave signal.
MODE/ENTER DOWN UP EXIT
1
10
11
12
14
5
4
3
2
6
7
9
13
8
