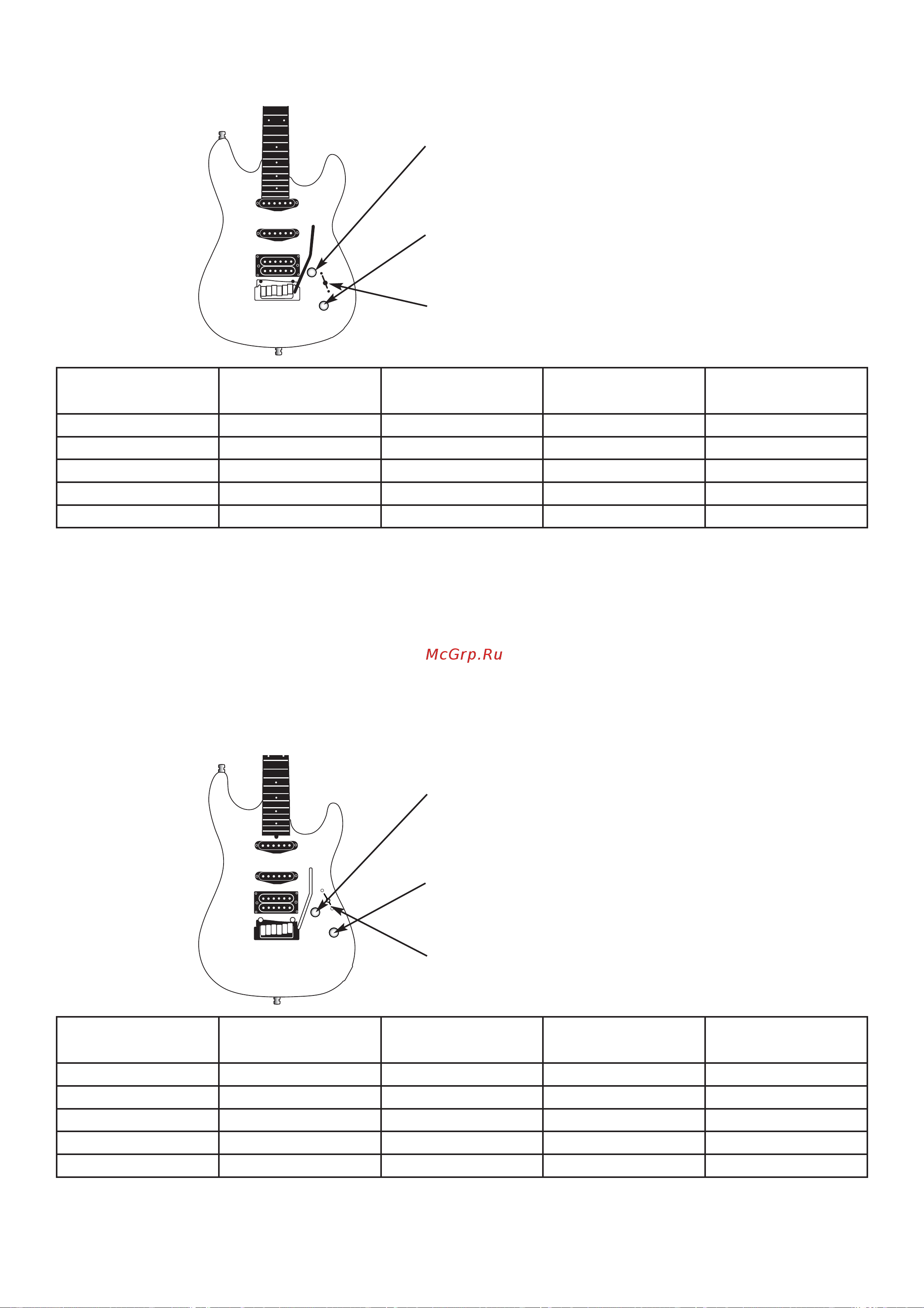

ENGLISH 24
Diablo Light Scotch
Controls:
-Volume (Push/Pull):
Volume control pushed = humbucker mode,
volume control pulled = singlecoil mode
(humbucker is split)
-Tone
Pickup selector:
5-way
Selector position Singlecoil
(Volume control pulled)
Humbucker
(Volume control pushed)
1 Neck pickup Neck pickup
2 Neck- and middle pickup Hum-canceling Neck- and middle pickup Hum-canceling
3 Neck- and bridge pickup *
4 Middle- and bridge pickup Hum-canceling *
5 Bridge pickup Bridge pickup Hum-canceling
*Tip: In humbucker mode selecting positions 3 and 4 don’t make much sense since the humbucker overpowers the singlecoil anyway and the
hum-canceling function is not available because of 3 active coils.
Spitfire Pro
Spitfire Custom
Controls:
-Volume (Push/Pull):
Volume control pushed = humbucker mode,
volume control pulled = singlecoil mode
(humbucker is split)
-Tone
Pickup selector:
5-way
Selector position Singlecoil
(Volume control pulled)
Humbucker
(Volume control pushed)
1 Neck pickup Neck pickup
2 Neck- and middle pickup Hum-canceling Neck- and middle pickup Hum-canceling
3 Neck- and bridge pickup *
4 Middle- and bridge pickup Hum-canceling *
5 Bridge pickup Bridge pickup Hum-canceling
*Tip: In humbucker mode selecting positions 3 and 4 don’t make much sense since the humbucker overpowers the singlecoil anyway and the
hum-canceling function is not available because of 3 active coils.
