ENGLISH 30

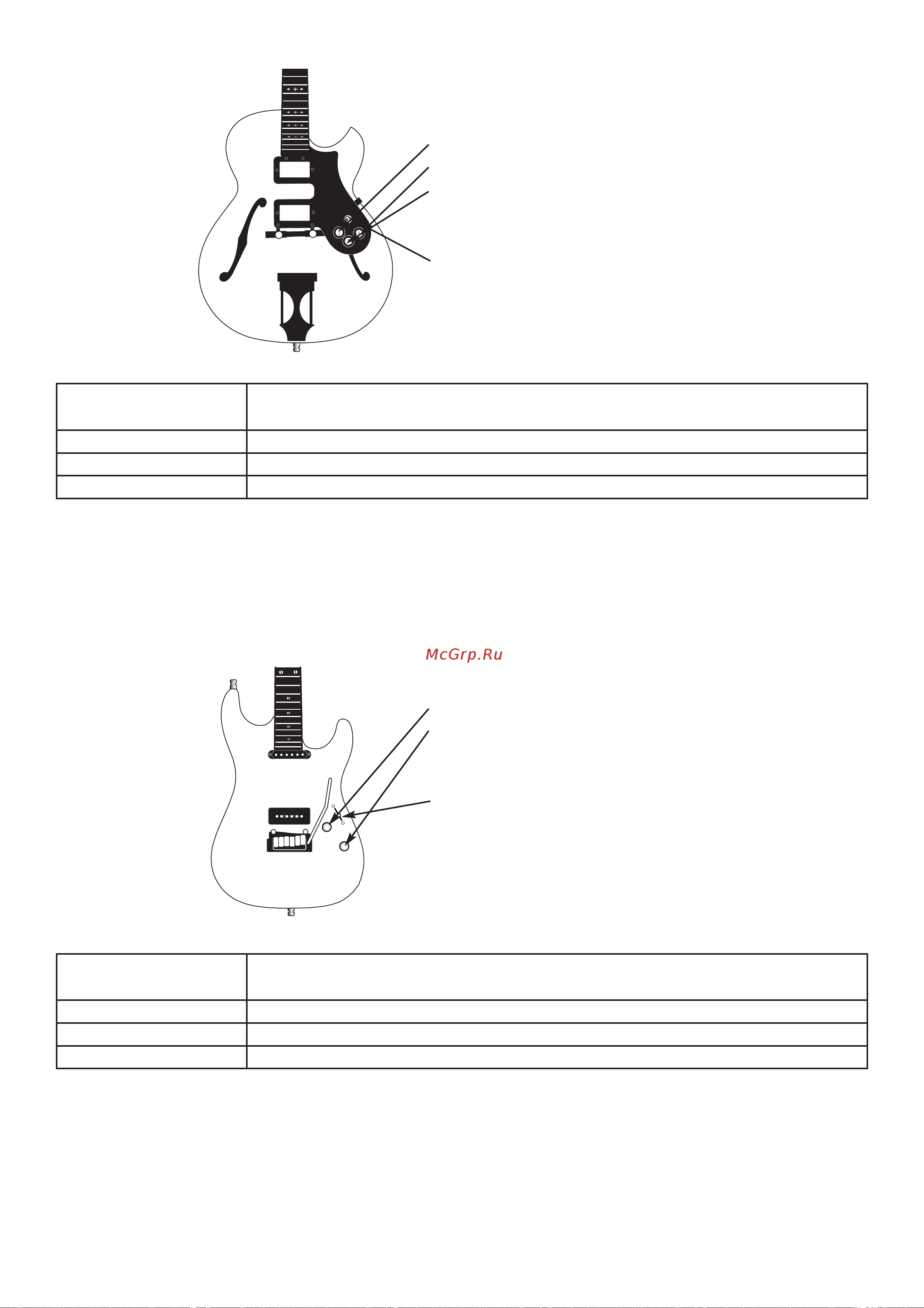

AZ-10 Dual Pickup
Controls:
-Volume
-Treble
-Bass
Pickup selector:
3-way
Selector position
1 Neck pickup
2 Neck- and bridge pickup
3 Bridge pickup
Manhattan
Controls:
-Volume
-Tone
Pickup selector:
3-way
Selector position
1 Neck pickup
2 Neck- and bridge pickup
3 Bridge pickup
Содержание
- Construction 2
- Control elements 2
- General information about framus guitars 2
- Outfitting 2
- Owner manual for framus guitars 2
- General specifications 3
- Glossary 3
- Instrument care and maintenance 3
- Custom shop 4
- General information about framus guitars 4
- Introduction 4
- Philosophy 4
- Standard models 4
- Body woods 5
- Model overview 5
- Outfitting 5
- Swamp ash body with flamed maple top solid body 5
- Swamp ash or basswood guitars solid body 5
- Body with tcs tone chamber system 6
- Hollow body full resonance guitars 6
- Laminated bodies semi acoustic guitars 6
- Mahogany body with flamed maple top solid body 6
- Semi hollow bodies semi acoustic guitars 6
- English 7 7
- X x x x 7
- English 8 8
- Neck woods 8
- Ovangkol and maple rosewood and tiger stripe ebony are the basis for our neck construction depending on the model any 2 of these 4 types of woods will be used which gives us the following combinations a table at the end of this chap ter describes the possibilities for each model 8
- Ovangkol is a west african hardwood with the best tonal properties high density allows for stability and sound quality sustain and warmth shapes its character the outstanding sound properties of tiger stripe ebony are a result of its ex treme hardness and stiffness it gives the instrument a quick response and a finely illuminated sound picture over the whole frequency spectrum 8
- Ovangkol neck with rosewood fingerboard 8
- Ovankgol neck with tiger stripe ebony fingerboard 8
- Rosewood is basically the most used wood for fingerboards period it differs from ebony in its density and hardness 8
- A maple neck has a direct pithy open sound in short it sounds like a big bang reason enough to like it and reason enough to develop guitars that do just that framus is offering models with a one piece maple neck or a maple neck with a maple fingerboard the framus custom shop also offers the option of a guitar with a one piece neck among many other possibilities that will make your instrument stand out 9
- Although rosewood is included in the hardwood category it is less dense more porous and a tad softer than tiger stripe ebony the resulting tone is obviously warmer but never sounds sharp this combination underscores the naturally ho nest character of the framus guitars that have the additional pro denomination in their model names 9
- English 9 9
- Framus pays also tribute to this tradition especially when it serves the purpose of enhancing the properties of the in strument this combination is found on guitars that need that special bite and high frequency cut through 9
- It is a proven combination framus guitars that fall into the semi acoustic and full resonance categories benefit the most from a maple neck with a glued on tiger stripe ebony fingerboard combination the already full sounding guitars get an additional boost in attack and high frequencies that are necessary for a balanced sound picture the ebony fingerboard clearly underscores the tonal attributes and the high standard of these instruments 9
- Maple neck with maple fingerboard one piece maple neck 9
- Maple neck with rosewood fingerboard 9
- Maple neck with tiger stripe ebony fingerboard 9
- English 10 10
- Fingerboard inlays dots 10
- Framus uses hand made genuine mother of pearl inlays on its guitars and they are installed with much care and detail aside from the standard inlays being used in their current models the framus custom shop offers a wide variety of ad ditional motifs functional or just plain nice this is one of the most popular options to create a very personal instrument for yourself there are also block inlays available if you want to have your name or initials engraved on the last fret more classic options are being offered as well like white or black dots the following table is a precise overview to see which model has what type of inlays or dots as a standard option 10
- Colored oil finish cof 11
- Finishes 11
- High polish finish hp 11
- Natural oil finish nof 11
- Polished varnish 11
- Satin finish sf 11
- Stain high polish finish sthp 11
- Airbrush graphic 12
- Chrome tone ct 12
- Metal flake 12
- Sandblasted finish 12
- Shellac 12
- English 13 13
- English 14 14
- Good wood is important as well as a solid construction and a sound design but this means nothing if it isn t comple mented with high quality components pickups are responsible for the sound of the instrument precision is an impor tant point that reflects quality too nut bridge construction and tuning machines are only going to last if they are built thoroughly and meticulously with high quality materials not for nothing are they responsible for good tuning framus uses the best components only from the best manufacturers and also its own which bear the framus label 14
- Pickup configurations 14
- Pickups hardware 14
- The story begins in 1978 in santa barbara california when seymour duncan founded his company with the same name and his ideas about electrical signal transformation into audible success started his early developed talent created an around the globe successful company that always meant to preserve one thing the spirit of a seymour duncan the worldwide famous first class pickups that bear his name are installed in all framus models with the exception of the az 10 and they are meant to fit each guitar according to its tonal characteristics and outfitted with diverse switching combinations the following table describes the pickup combination available in each standard framus model 14
- Bridges and vibrato systems 15
- Electric guitars have different demands when it comes to sound and playing techniques that is why framus offers not less than 10 different bridges and vibrato systems basically it s possible to outfit any guitar model with a different bridge of vibrato system than the one it comes with the framus custom shop will gladly inform about all the available options provided that there are certain limitations in terms of construction 15
- English 15 15
- English 16 16
- Here s a list of all the available options and thereafter a table with a model overview 16
- Tune o matic with stop tailpiece height adjustable fixed bridge with adjustable saddles and separate stop tailpiece assembly 2 tune o matic bridge with trapeze tailpiece height adjustable fixed bridge with adjustable saddles and a floating trapeze tailpiece anchored to the butt end of the guitar 3 one piece framus bridge string through body fixed bridge with adjustable saddles and rear mounted string ferrules strings are put on through the back of the guitar also called a string thru bridge 4 framus vibrato by wilkinson 2 point system with knife edge principle and screwed on metal sustain block strings are put on from the back and through the sustain block 5 framus vintage vibrato 6 point system functions like framus vibrato by wilkinson 6 framus floyd rose licensed vibrato system 2 point system with knife edge principle and screwed on metal sustain block plus locking nut strings are put on from the top through the back of the saddles 7 original floyd rose vibrato system functions like 16
- English 17 17
- Tuning machines 17
- Tuning machines are an important component of the guitar and are not to be neglected framus is able to offer two ex clusive machine heads of its own all pro models as well as the monterrey come with smooth running oil based tu ning machines allow problem free use of a vibrato system the streetwalker and morrigan models have these machine heads plus a locking nut that comes with the floyd rose vibrato system all custom models as well as the ak 1974 the manhattan and the az 10 have framus locking tuners with this type of machine the strings are not wound anymore but fed through a hole at the machine head and locked with a tightening screw if done correctly the string will be in tune after about half a turn having less turns means less slippage guitars with locking tuners stay much better in tune especially after changing strings which also becomes a quicker and less time consuming procedure the framus cus tom shop also offers schaller and sperzel locking tuners on request 17
- Hardware colors 18
- Security locks 18
- Accessories included items 20
- Construction 20
- Neck joint 20
- Strings 20
- English 21 21
- Truss rod 22
- Control elements 23
- Controls 23
- Diablo custom 7 string 23
- Diablo pro diablo custom controls 23
- English 23 23
- Pickup selector 23
- Volume push pull volume control pushed humbucker mode volume control pulled singlecoil mode both humbuckers are split tone 23
- Volume push pull volume control pushed humbucker mode volume control pulled singlecoil mode humbucker is split tone 23
- Controls 24
- Diablo light scotch 24
- English 24 24
- Pickup selector 24
- Spitfire pro spitfire custom controls 24
- Volume push pull volume control pushed humbucker mode volume control pulled singlecoil mode humbucker is split tone 24
- Camarillo camarillo 7 string controls 25
- English 25 25
- Pickup selector 25
- Renegade pro renegade custom controls 25
- Volume push pull volume control pushed humbucker mode volume control pulled singlecoil mode both humbuckers are split tone 25
- English 26 26
- Panthera pro panthera custom panthera custom 7 string controls 26
- Pickup selector 26
- Tennessee pro tennessee custom controls 26
- Volume tone 26
- 3 wegschalter 27
- Controls 27
- English 27 27
- Lead free switch 27
- Master volume blend in control between middle singlecoil and split neck pickup with push pull function pulled tone with push pull function to split bridge pickup pulled 27
- Monterey 27
- Panthera studio pro panthera studio custom panthera studio custom 7 string controls 27
- Pickup selector 27
- Volume tone 27
- Controls 28
- English 28 28
- Pickup selector 28
- Streetwalker 6 string 28
- Streetwalker 7 string 28
- Volume 28
- Volume with push pull function volume control pushed humbucker activated and neck singlecoil bypassed volume control pulled humbuckers are bypassed and neck singlecoil is activated regardless of selector position 28
- 6 way rotary switch 29
- Ak 1974 29
- Az 10 single pickup az 10 blonde az 10 bubinga az 10 makassar az 10 koa az 10 shellac 29
- Controls 29
- English 29 29
- Pickup selector 29
- Volume tone 29
- Az 10 dual pickup 30
- Controls 30
- English 30 30
- Manhattan 30
- Pickup selector 30
- Volume tone 30
- Volume treble bass 30
- 2 x volume one per pickup 2 x tone one per pickup 31
- Controls 31
- English 31 31
- Hollywood 31
- Mayfield pro mayfield custom controls 31
- Pickup selector 31
- Volume tone 31
- Controls 32
- English 32 32
- Morrigan custom 32
- Morrigan pro 32
- Pickup selector 32
- Volume 1 bass and 1 treble control stacked 32
- Volume tone 32
- Body wood and finish maintenance 33
- Chrome tone finish ct 33
- Colored oil finish cof 33
- High polish finish hp 33
- Instrument care and maintenance 33
- Natural oil finish nof 33
- Shellac 33
- Fingerboard 34
- Hardware cleaning 34
- Neck wood 34
- Neck wood care 34
- Truss rod 34
- Intonation 35
- Pickup height 35
- String action 35
- Bridge system setup 36
- Framus vibrato by wilkinson 36
- Machine heads 36
- The easy access electronics compartment 36
- Framus vintage vibrato 37
- Tune o matic bridge with stop tailpiece or trapeze tailpiece 37
- Framus floyd rose vibrato 38
- One piece fixed bridge 38
- English 39 39
- Original bigsby vibrato b7 b500 39
- Original floyd rose vibrato 39
- The bigsby vibrato is made of aluminum is mounted onto the body and comes with a string tension bar which avoids string noise when the vibrato is used the ball end of the string is placed on its corresponding axle pin the string ten sion bar has 3 different settings the string height adjustment is done at the tune o matic bridge with the two thumbs crews and the intonation is adjusted with the saddle screws the lateral positioning of the bridge can be changed with two side screws but first the locknuts have to be loosened and after the adjustment retightened 39
- The original floyd rose vibrato works basically like a framus floyd rose system the main difference is in the way you put on the strings they are tightly locked at the saddle between the little insert block and the string lock screw to ac complish this the ball end of the string has to be cut 39
- Height adjustable and length compensating ebony bridge 40
- Glossar 41
- English 42 42
- English 43 43
- General specifications 43
- Important technical information contained herein can be subject to change without notice 43
- Support service sales www framus de 43
- Wood denominations 43
