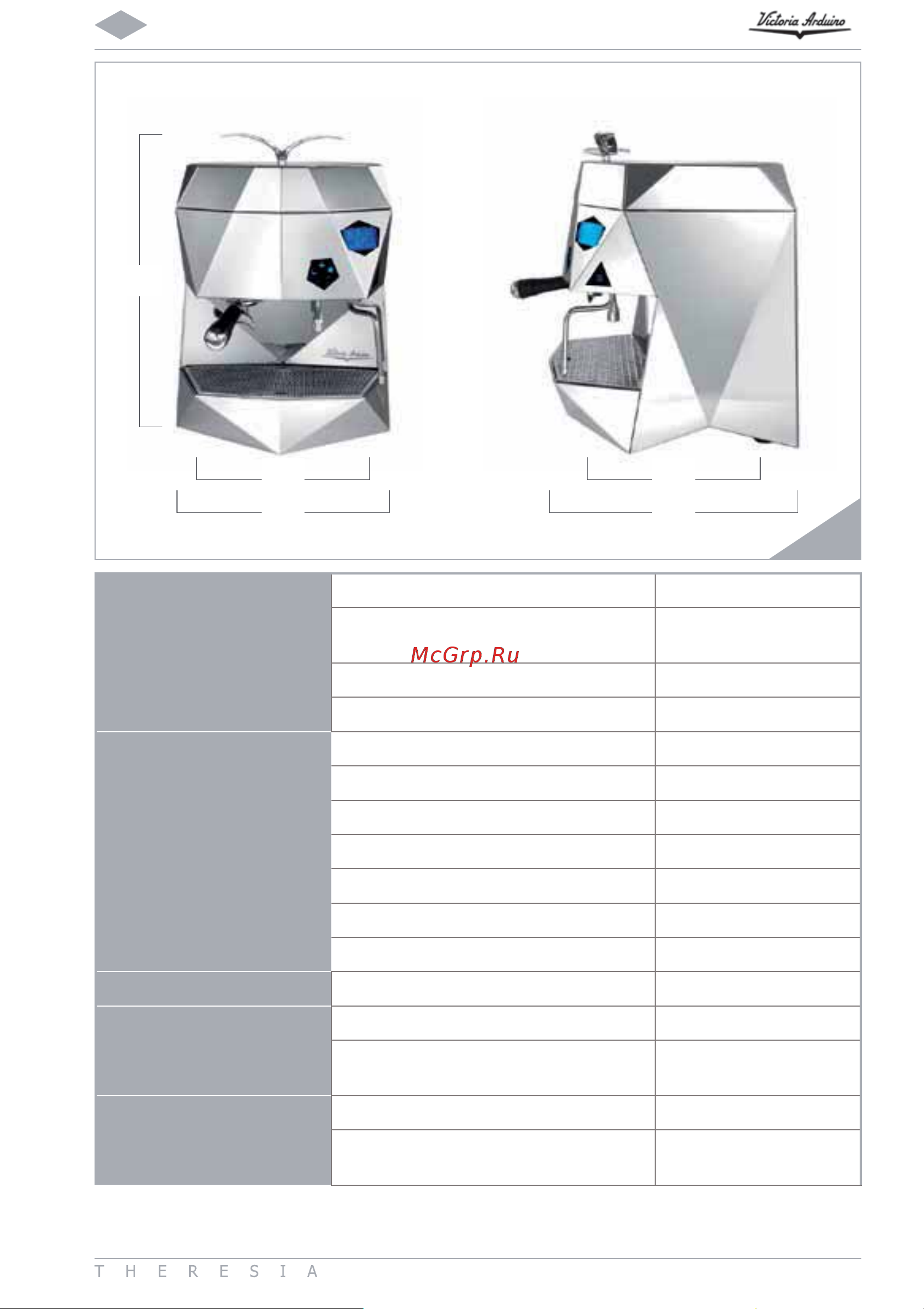

![Victoria Arduino Theresia T3 [39/106] Coffee boiler](/views2/1996252/page39/bg27.png)
39
EN
Group number
1
Body Stainless steel
supermirror
Voltage 208-240 V 50-60 Hz
Power 3000W
Dimensions
Width L (mm) 430
Length LA (mm) 360
Height H (mm) 585
Depth P (mm) 460
Depth PA (mm) 270
Net weight (kg) 32
Gross weight (kg) 37
Water supply
Tank/Mains ȗ
Steam boiler
Capacity (I) 1,1 l
Material Thermally insulated
stainless steel
Coee boiler
Capacity (I) 0,7 l
Material Thermally insulated
stainless steel
PA
P
LA
L
H
01
